Gigabyte GeForce RTX™ 5080 WINDFORCE OC SFF 16GB
- Product SKU: 108950
Graphics Card – Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB
GPU: NVIDIA GeForce RTX 5080
Architecture: Blackwell
Core Clock: 2670 MHz (Reference: 2617 MHz)
CUDA Cores: 10,752
Memory
• 16GB GDDR7
• 256-bit memory interface
• 960 GB/s memory bandwidth
• Memory Clock: 1875 MHz (30 Gbps effective)

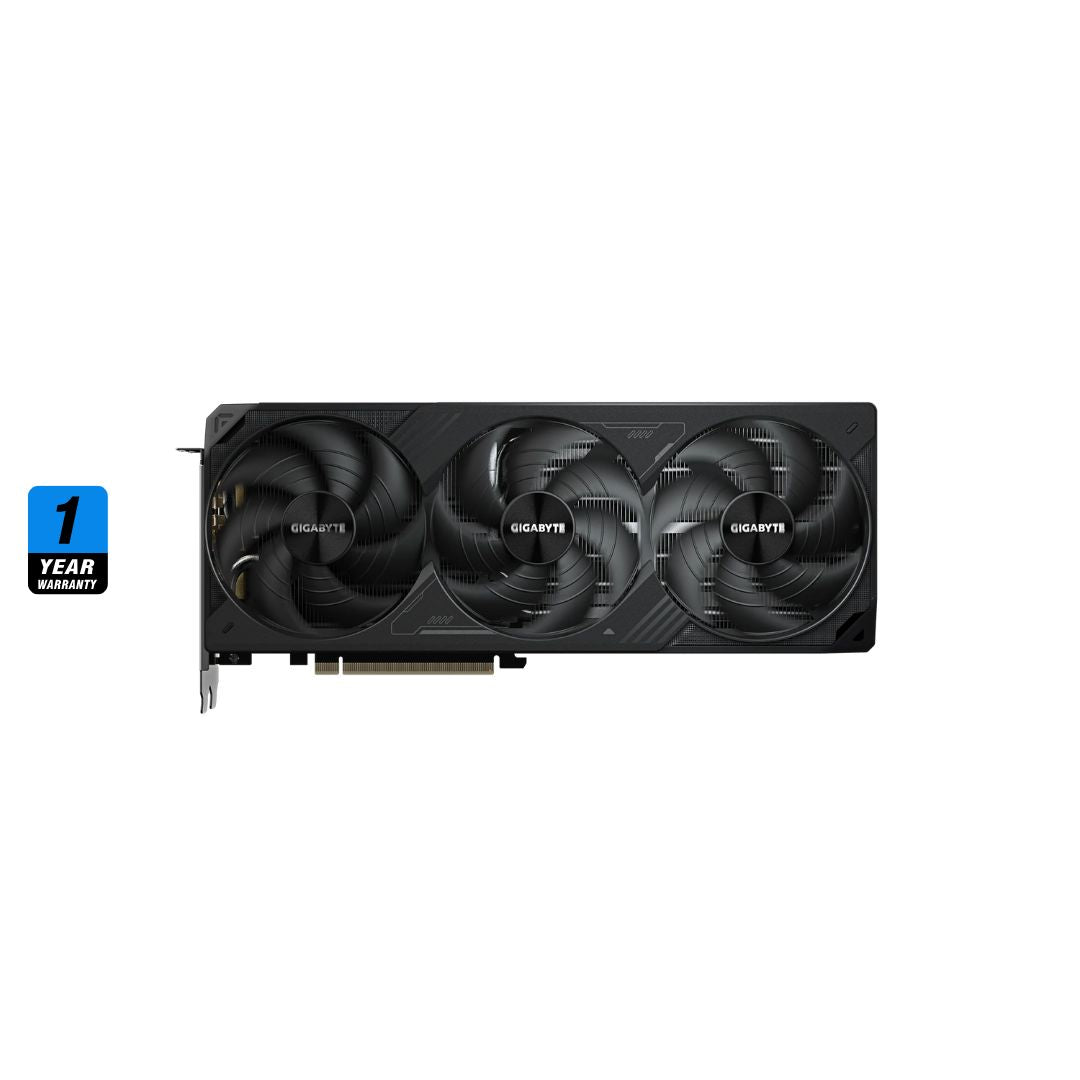

Cooling System
• WINDFORCE triple-fan cooling
• Hawk fans + server-grade thermal gel
• Dual BIOS (Performance / Silent)
• Reinforced backplate + VGA support bracket

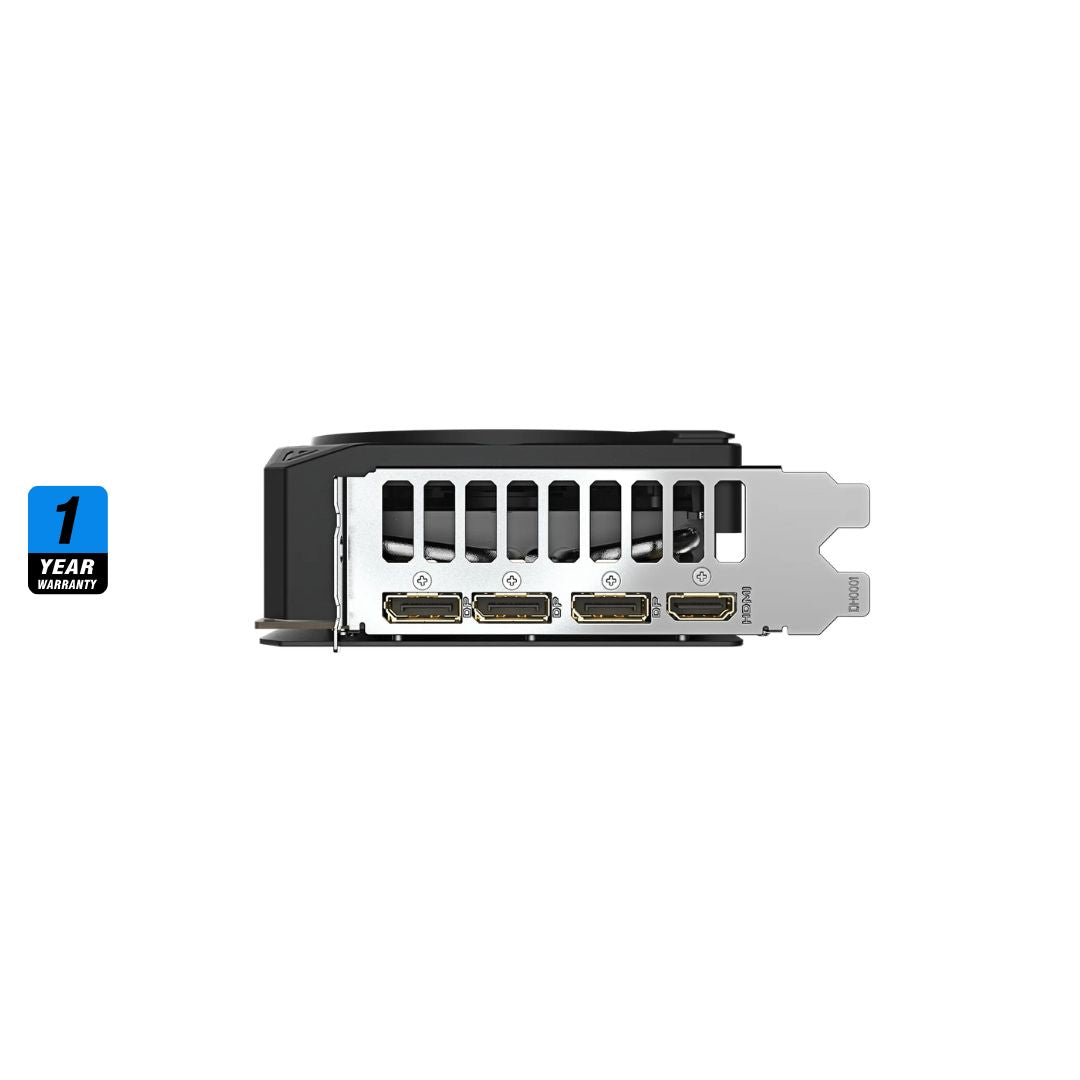

Display Outputs
• 3 x DisplayPort 2.1b
• 1 x HDMI 2.1b
Bus Interface
• PCIe 5.0 x16
Max Resolution
• 7680x4320 (8K UHD)
Features
• DLSS 4, Ray Tracing (4th Gen RT Cores)
• Tensor Cores (5th Gen)
• NVIDIA Reflex 2, ACE, Studio, Broadcast
• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
• NVENC (9th Gen), NVDEC (6th Gen)
Power Requirements
• TDP: 360W
• Recommended PSU: 850W
• Power Connector: 1 x 16-pin
Form Factor
• Dual-slot
• Dimensions: 304 x 126 x 50 mm
Graphics Card – Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB
GPU: NVIDIA GeForce RTX 5080
Architecture: Blackwell
Core Clock: 2670 MHz (Reference: 2617 MHz)
CUDA Cores: 10,752
Memory
• 16GB GDDR7
• 256-bit memory interface
• 960 GB/s memory bandwidth
• Memory Clock: 1875 MHz (30 Gbps effective)
Cooling System
• WINDFORCE triple-fan cooling
• Hawk fans + server-grade thermal gel
• Dual BIOS (Performance / Silent)
• Reinforced backplate + VGA support bracket
Display Outputs
• 3 x DisplayPort 2.1b
• 1 x HDMI 2.1b
Bus Interface
• PCIe 5.0 x16
Max Resolution
• 7680x4320 (8K UHD)
Features
• DLSS 4, Ray Tracing (4th Gen RT Cores)
• Tensor Cores (5th Gen)
• NVIDIA Reflex 2, ACE, Studio, Broadcast
• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
• NVENC (9th Gen), NVDEC (6th Gen)
Power Requirements
• TDP: 360W
• Recommended PSU: 850W
• Power Connector: 1 x 16-pin
Form Factor
• Dual-slot
• Dimensions: 304 x 126 x 50 mm
