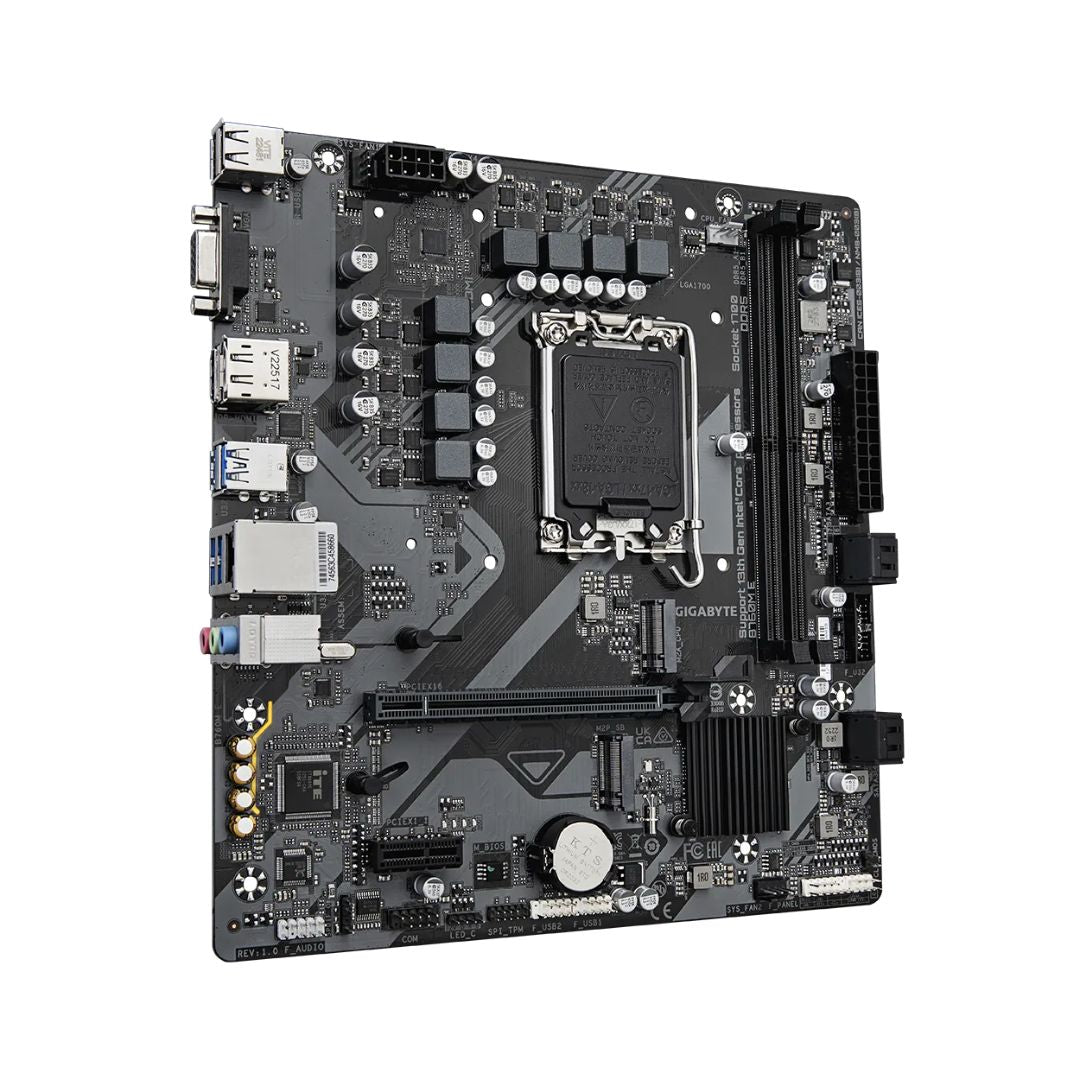

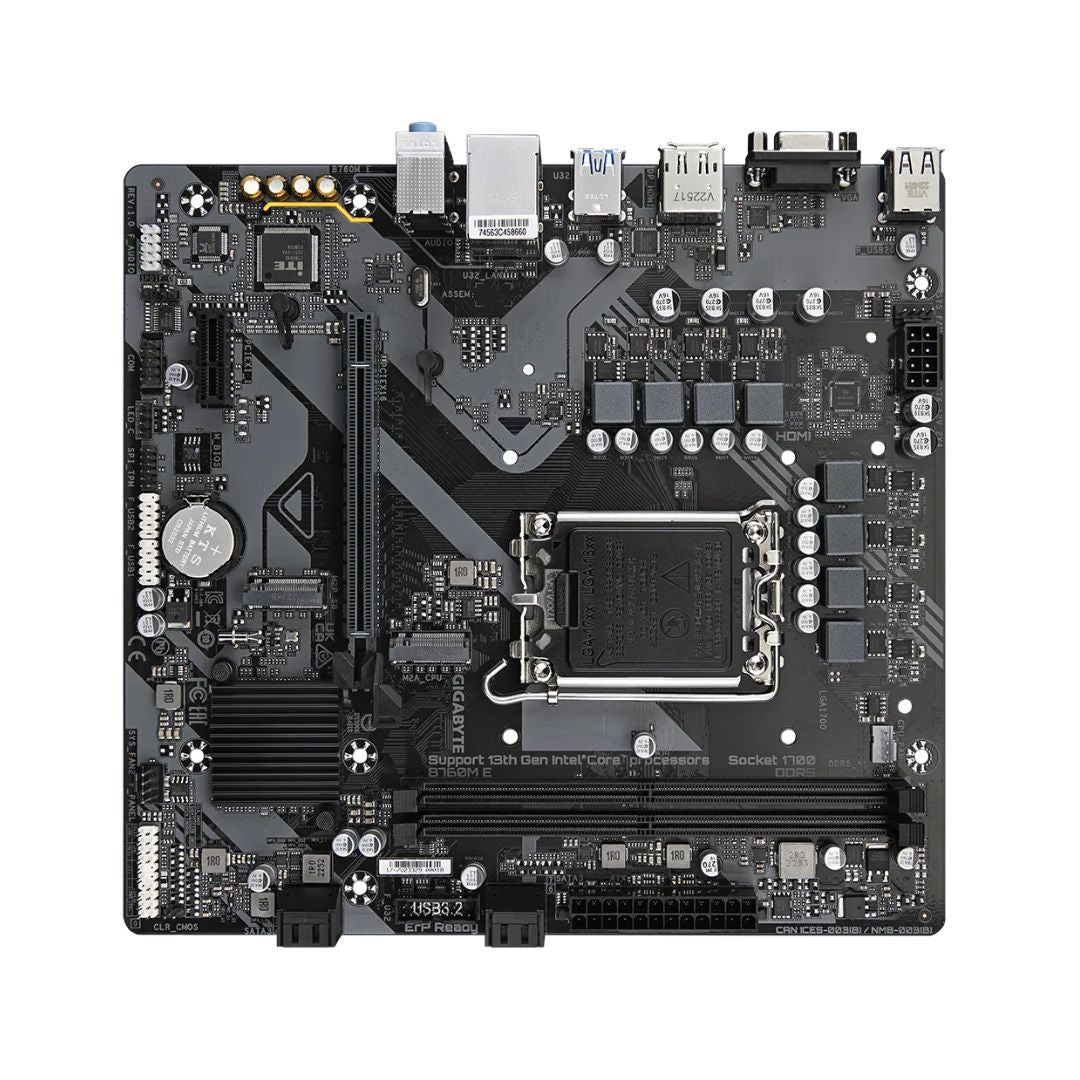

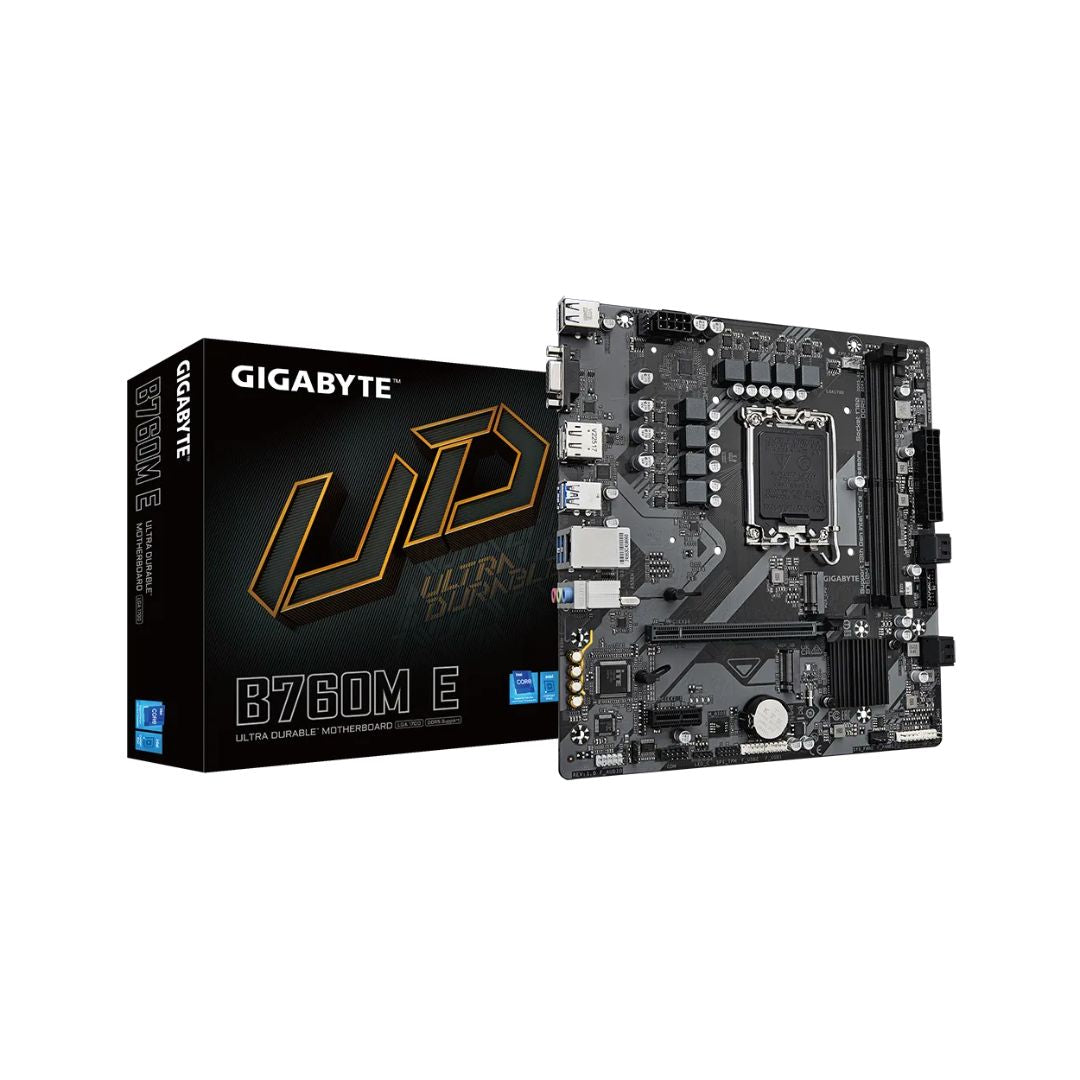

Motherboard Specification – Gigabyte B760M-E D5
• Chipset: Intel B760
• Form Factor: Micro-ATX
• CPU Socket: LGA 1700
• Memory Support: Dual Channel DDR5, 2 x DIMM slots
• Max Memory Capacity: Up to 96GB
• Memory Speed: Up to 4800MHz (native), up to 7200MHz (OC)
• Expansion Slots:
– 1 x PCIe 4.0 x16
– 1 x PCIe 3.0 x1
• Storage Interface:
– 2 x PCIe 4.0 x4 M.2
– 4 x SATA III 6Gb/s
• Graphics Outputs: HDMI 2.1, DisplayPort, D-Sub
• Audio: 8-Channel HD Audio with Audio Noise Guard
• LAN: 1 x Gigabit Ethernet (Realtek GbE LAN)

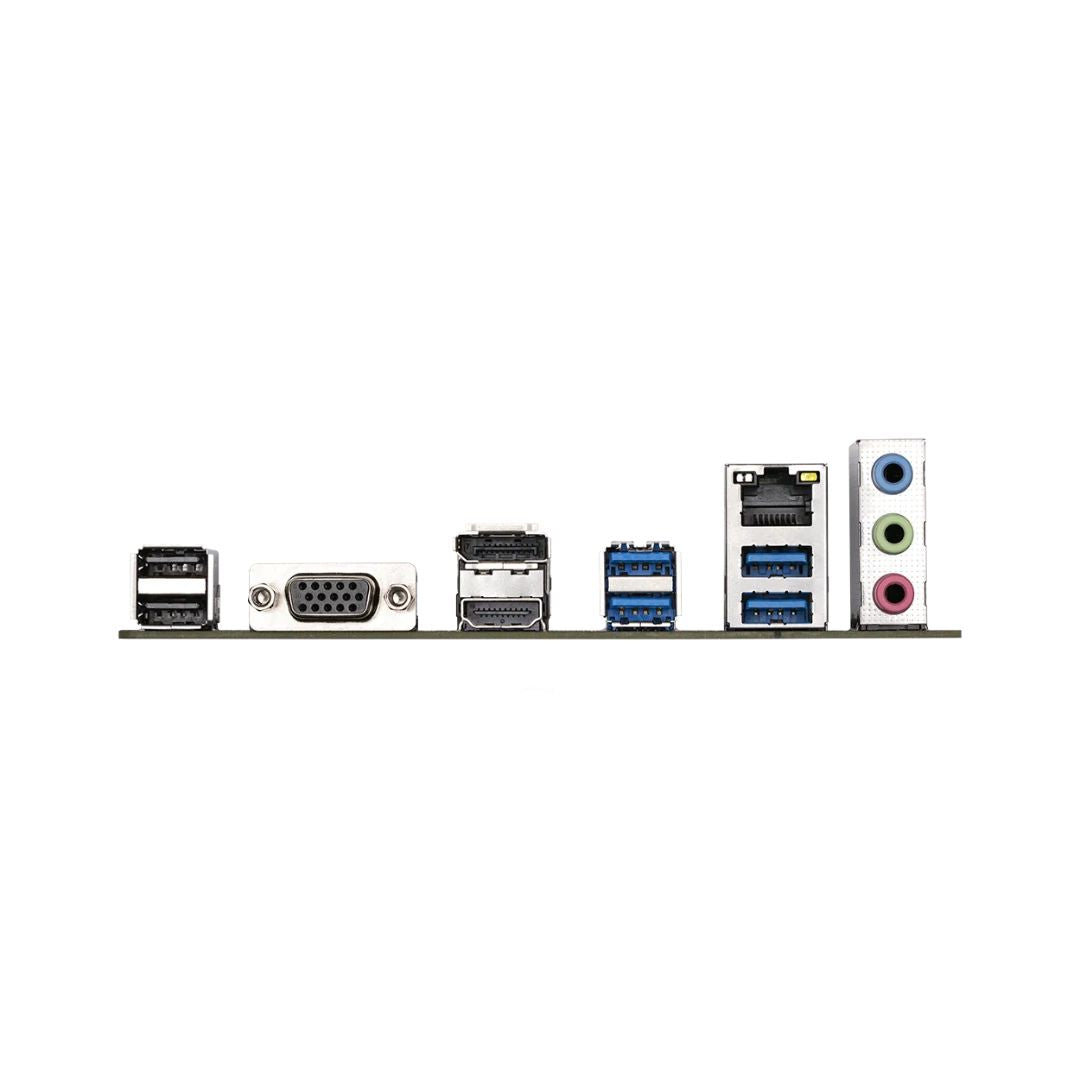

• USB Ports:
– Rear: USB 3.2 Gen 1, USB 2.0
– Internal Headers: USB 3.2 Gen 1, USB 2.0
• Cooling Features: Smart Fan 6, Hybrid Fan Headers, FAN STOP
• RGB Support: 1 x RGB LED Header
• BIOS: UEFI BIOS with Q-Flash
• EZ-Latch: PCIe slot quick-release design
• Compatibility: Supports Intel 12th, 13th, and 14th Gen Core processors
Motherboard Specification – Gigabyte B760M-E D5
• Chipset: Intel B760
• Form Factor: Micro-ATX
• CPU Socket: LGA 1700
• Memory Support: Dual Channel DDR5, 2 x DIMM slots
• Max Memory Capacity: Up to 96GB
• Memory Speed: Up to 4800MHz (native), up to 7200MHz (OC)
• Expansion Slots:
– 1 x PCIe 4.0 x16
– 1 x PCIe 3.0 x1
• Storage Interface:
– 2 x PCIe 4.0 x4 M.2
– 4 x SATA III 6Gb/s
• Graphics Outputs: HDMI 2.1, DisplayPort, D-Sub
• Audio: 8-Channel HD Audio with Audio Noise Guard
• LAN: 1 x Gigabit Ethernet (Realtek GbE LAN)
• USB Ports:
– Rear: USB 3.2 Gen 1, USB 2.0
– Internal Headers: USB 3.2 Gen 1, USB 2.0
• Cooling Features: Smart Fan 6, Hybrid Fan Headers, FAN STOP
• RGB Support: 1 x RGB LED Header
• BIOS: UEFI BIOS with Q-Flash
• EZ-Latch: PCIe slot quick-release design
• Compatibility: Supports Intel 12th, 13th, and 14th Gen Core processors
