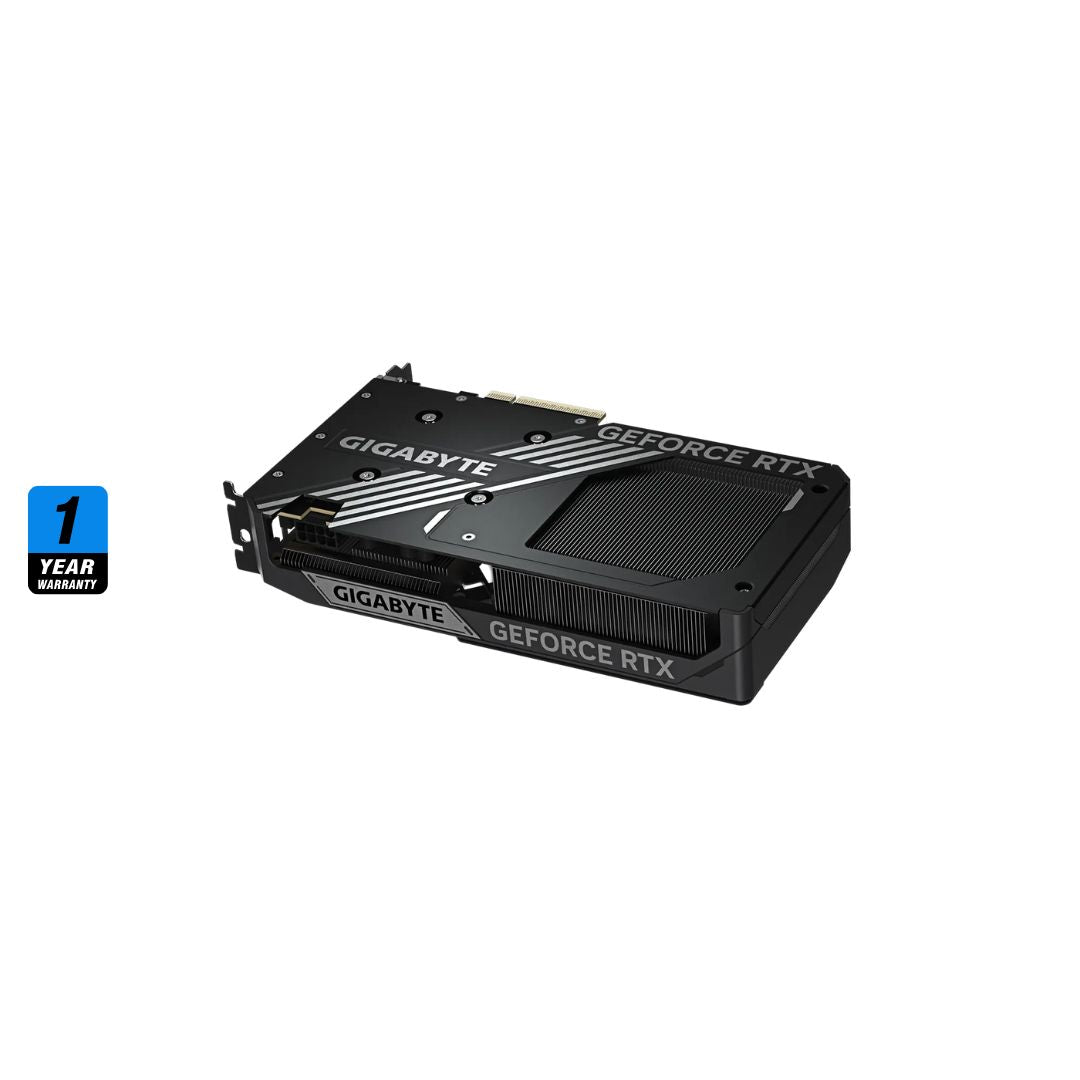

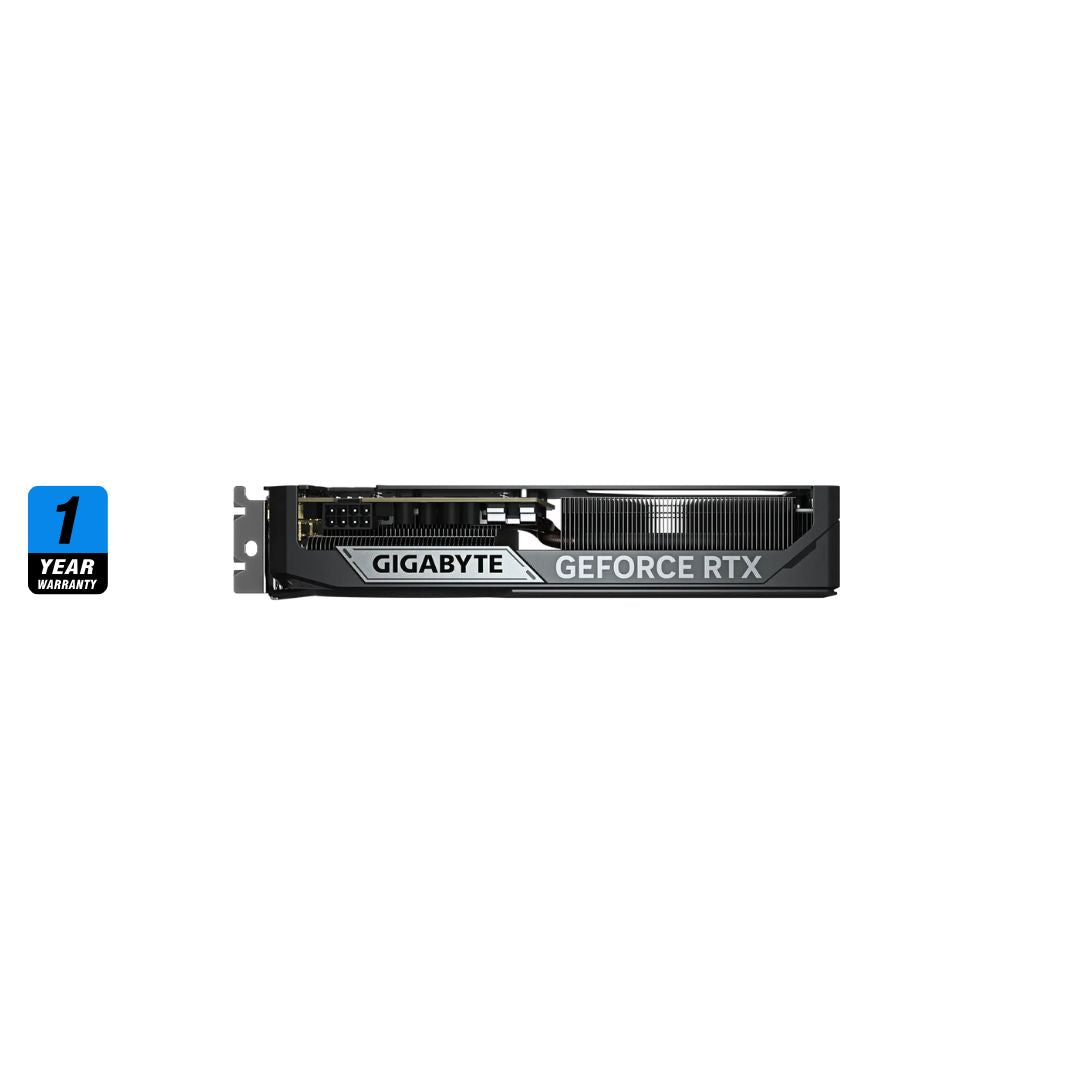

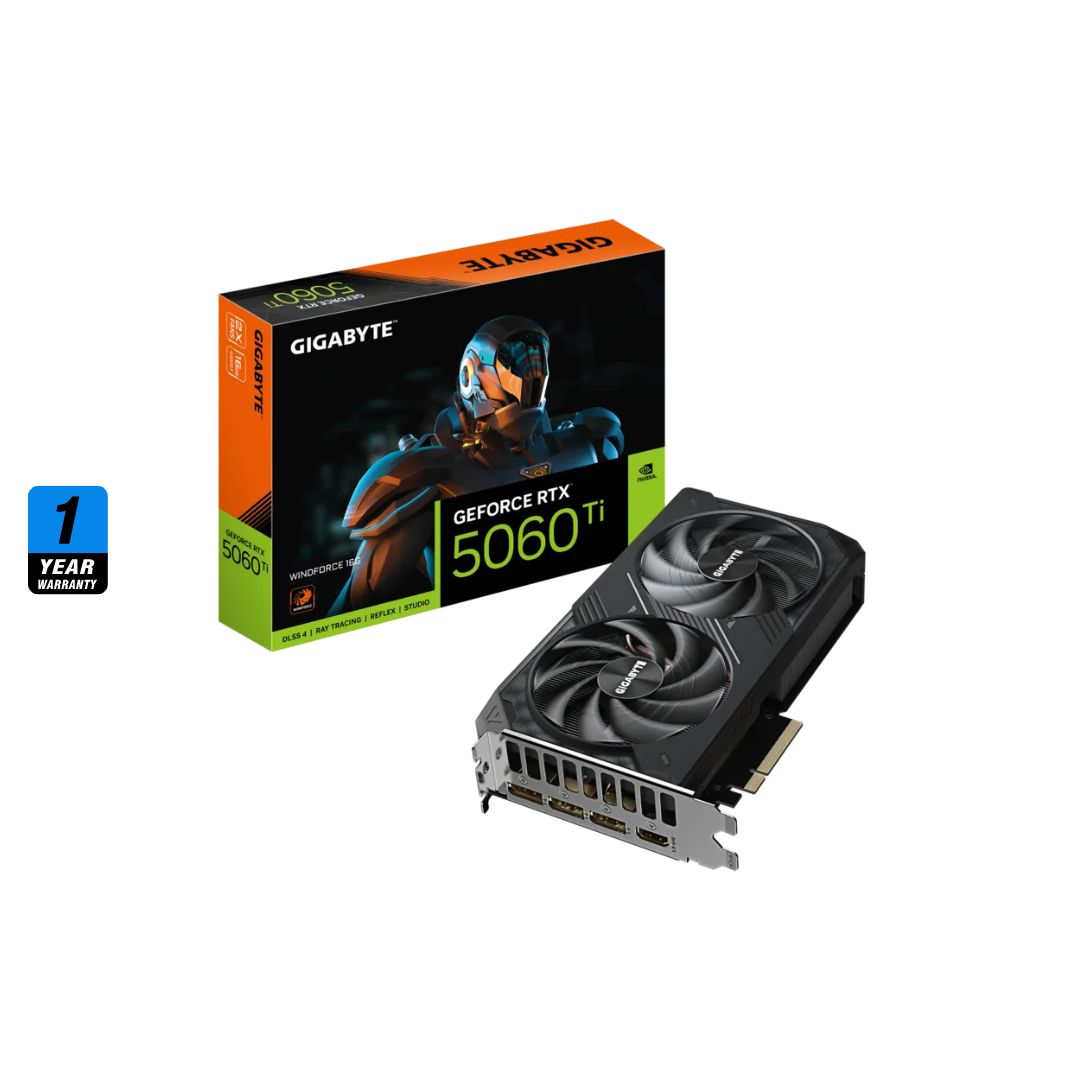

Gigabyte GeForce RTX™ 5060 Ti WINDFORCE 16GB
- Product SKU: 109623
Graphics Card – Gigabyte GeForce RTX 5060 Ti WINDFORCE 16GB
GPU: NVIDIA GeForce RTX 5060 Ti
Architecture: Blackwell
Core Clock: 2587 MHz (Reference: 2572 MHz)
CUDA Cores: 4608
Memory
• 16GB GDDR7
• 128-bit memory interface
• 896 GB/s memory bandwidth
• Memory Clock: 1750 MHz (28 Gbps effective)
Cooling System

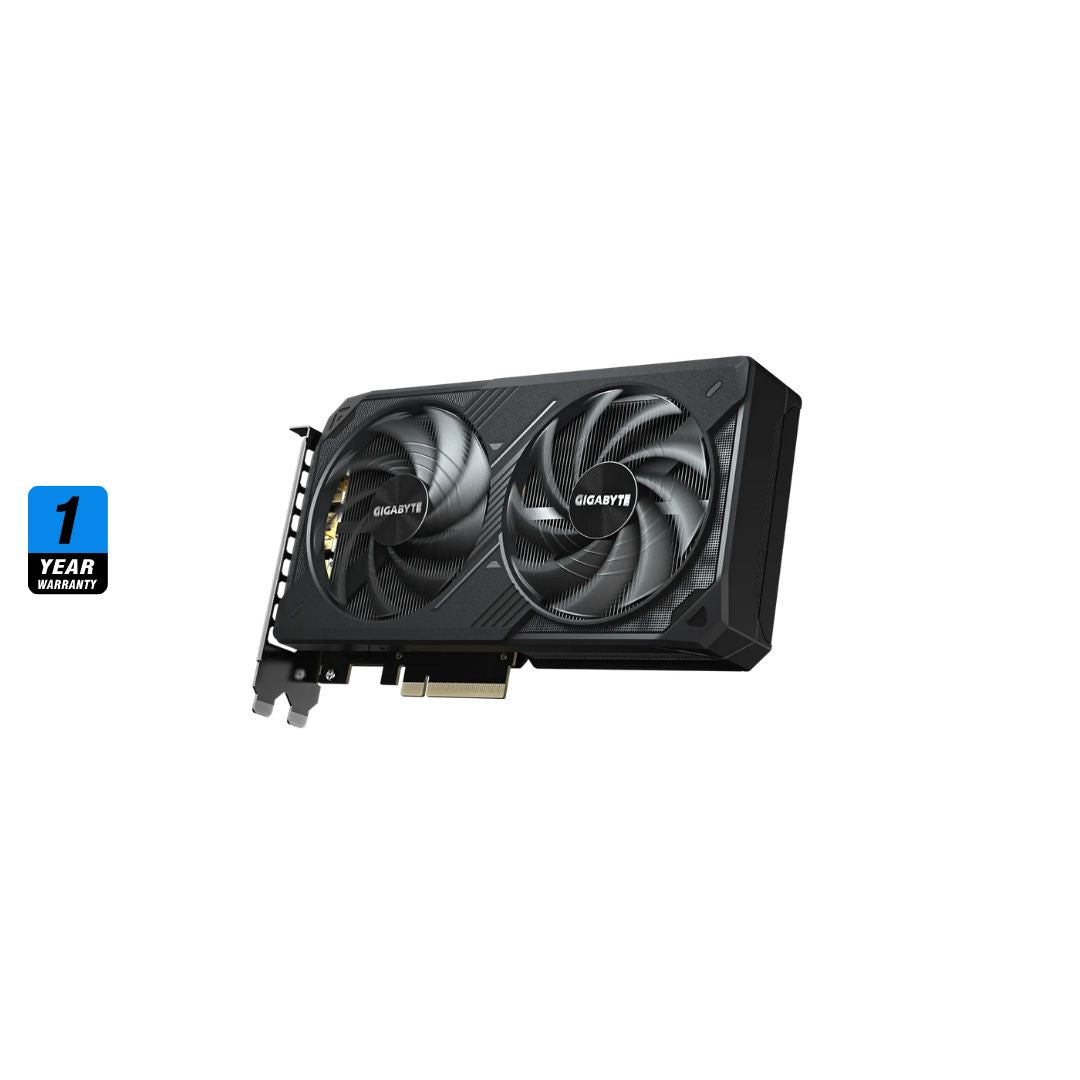

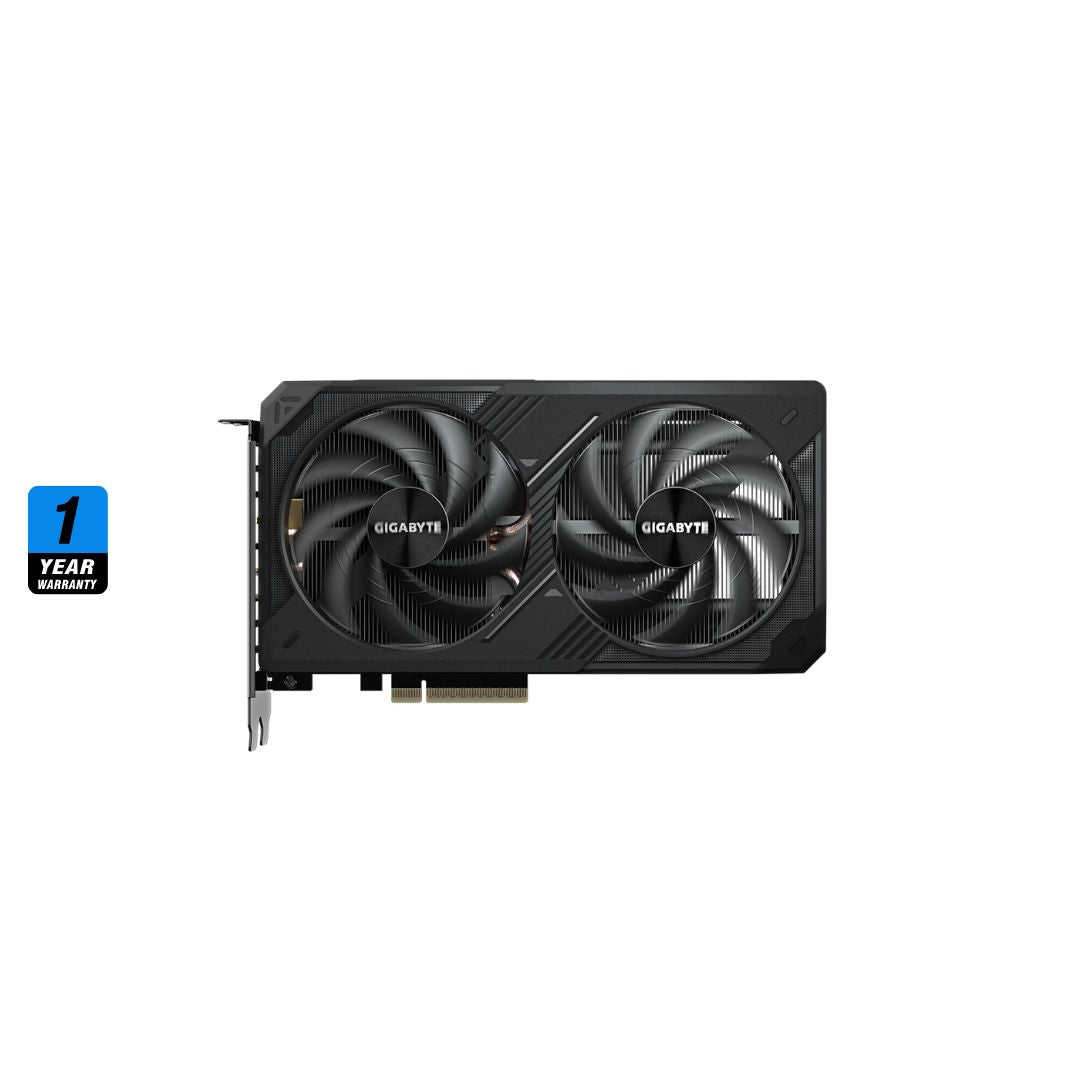

• WINDFORCE dual-fan cooling
• Hawk fans + thermal conductive gel

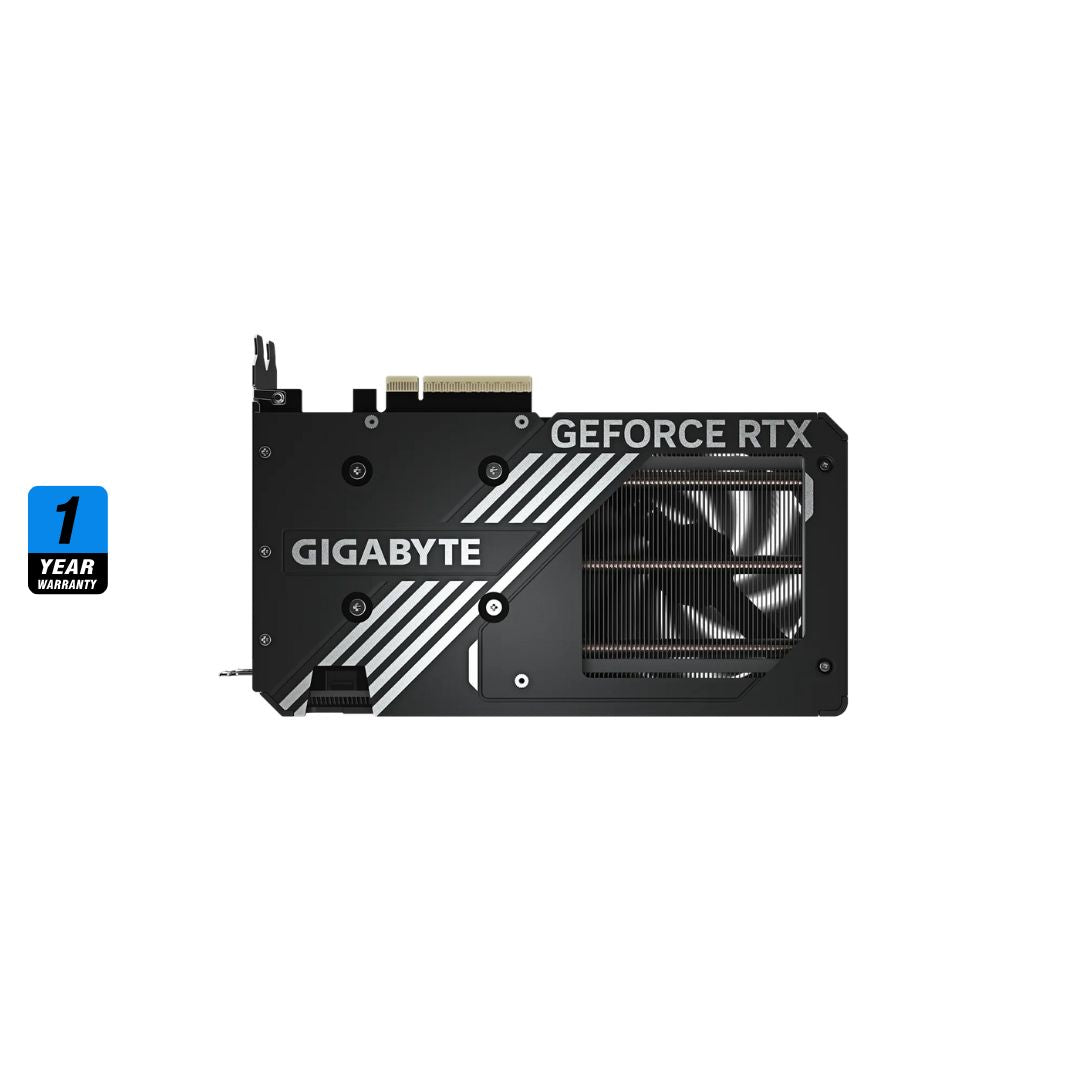

• Reinforced backplate
• Dual BIOS (Performance / Silent)

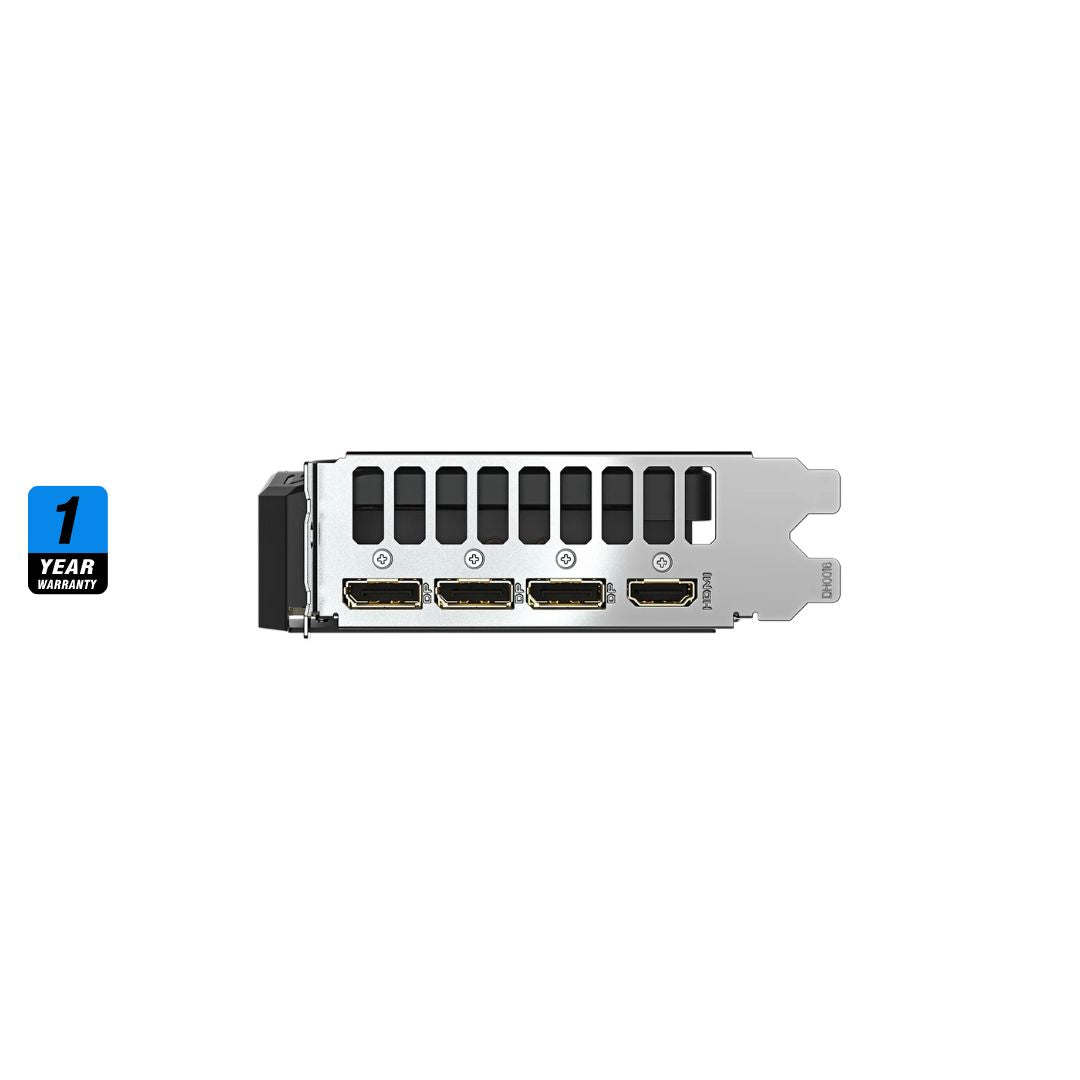

Display Outputs
• 3 x DisplayPort 2.1b
• 1 x HDMI 2.1b
Bus Interface
• PCIe 5.0 x8
Max Resolution
• 7680x4320 (8K UHD)
Features
• DLSS 4, Ray Tracing (4th Gen RT Cores)
• Tensor Cores (5th Gen)
• NVIDIA Reflex 2, ACE, Studio, Broadcast
• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
• NVENC (9th Gen), NVDEC (6th Gen)
Power Requirements
• TDP: 180W
• Recommended PSU: 650W
• Power Connector: 1 x 8-pin
Form Factor
• Dual-slot
• Dimensions: 208 x 120 x 40 mm
Graphics Card – Gigabyte GeForce RTX 5060 Ti WINDFORCE 16GB
GPU: NVIDIA GeForce RTX 5060 Ti
Architecture: Blackwell
Core Clock: 2587 MHz (Reference: 2572 MHz)
CUDA Cores: 4608
Memory
• 16GB GDDR7
• 128-bit memory interface
• 896 GB/s memory bandwidth
• Memory Clock: 1750 MHz (28 Gbps effective)
Cooling System
• WINDFORCE dual-fan cooling
• Hawk fans + thermal conductive gel
• Reinforced backplate
• Dual BIOS (Performance / Silent)
Display Outputs
• 3 x DisplayPort 2.1b
• 1 x HDMI 2.1b
Bus Interface
• PCIe 5.0 x8
Max Resolution
• 7680x4320 (8K UHD)
Features
• DLSS 4, Ray Tracing (4th Gen RT Cores)
• Tensor Cores (5th Gen)
• NVIDIA Reflex 2, ACE, Studio, Broadcast
• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
• NVENC (9th Gen), NVDEC (6th Gen)
Power Requirements
• TDP: 180W
• Recommended PSU: 650W
• Power Connector: 1 x 8-pin
Form Factor
• Dual-slot
• Dimensions: 208 x 120 x 40 mm
