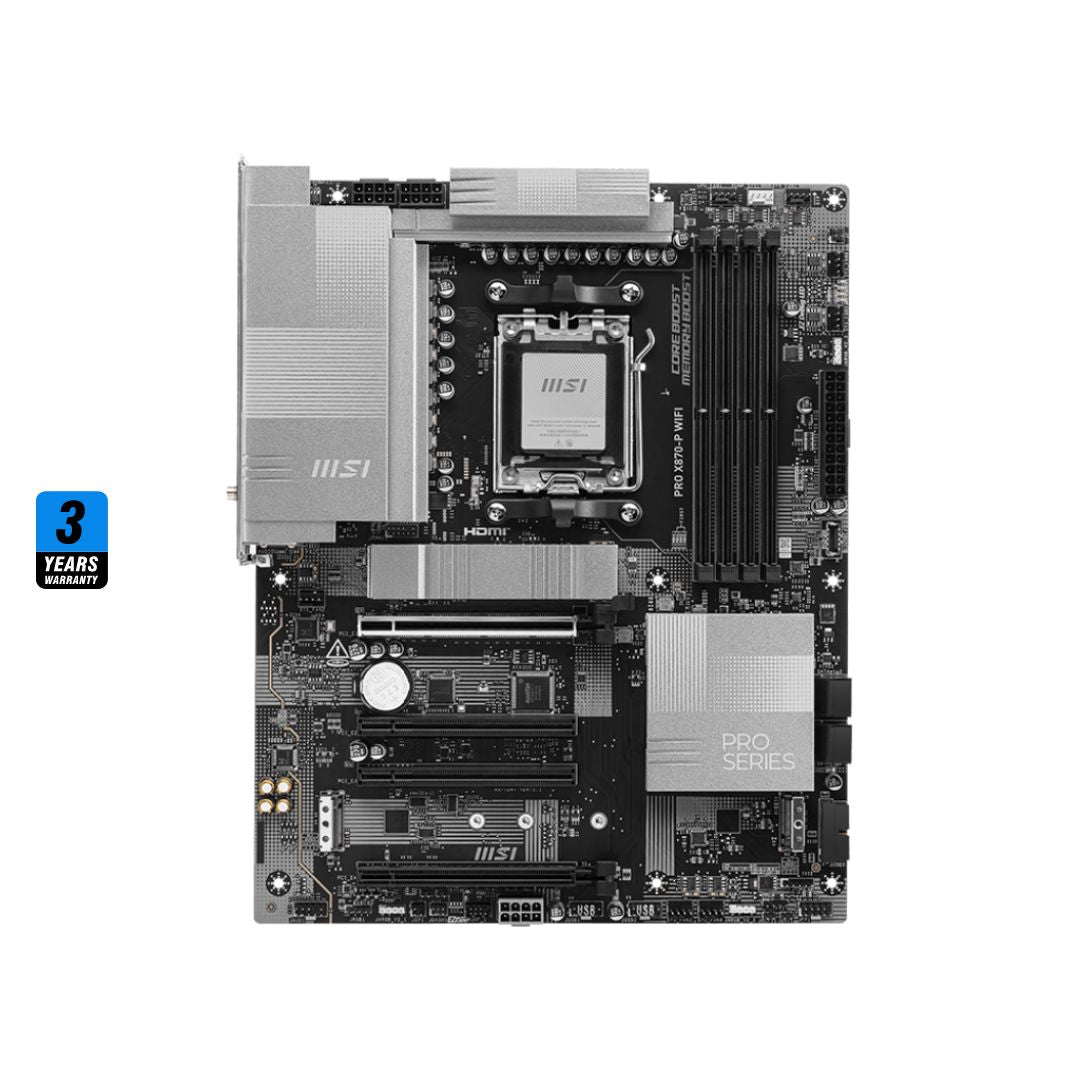

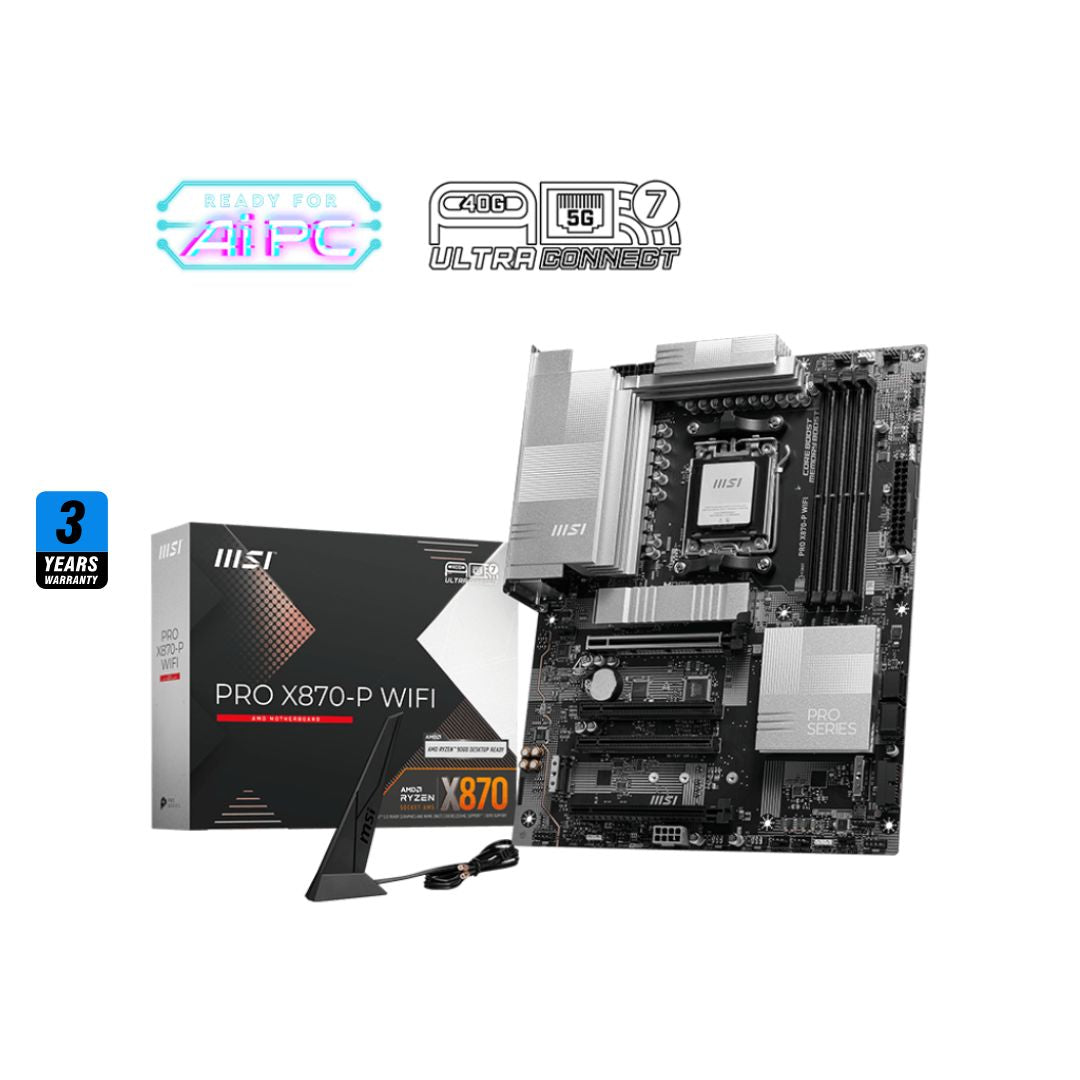

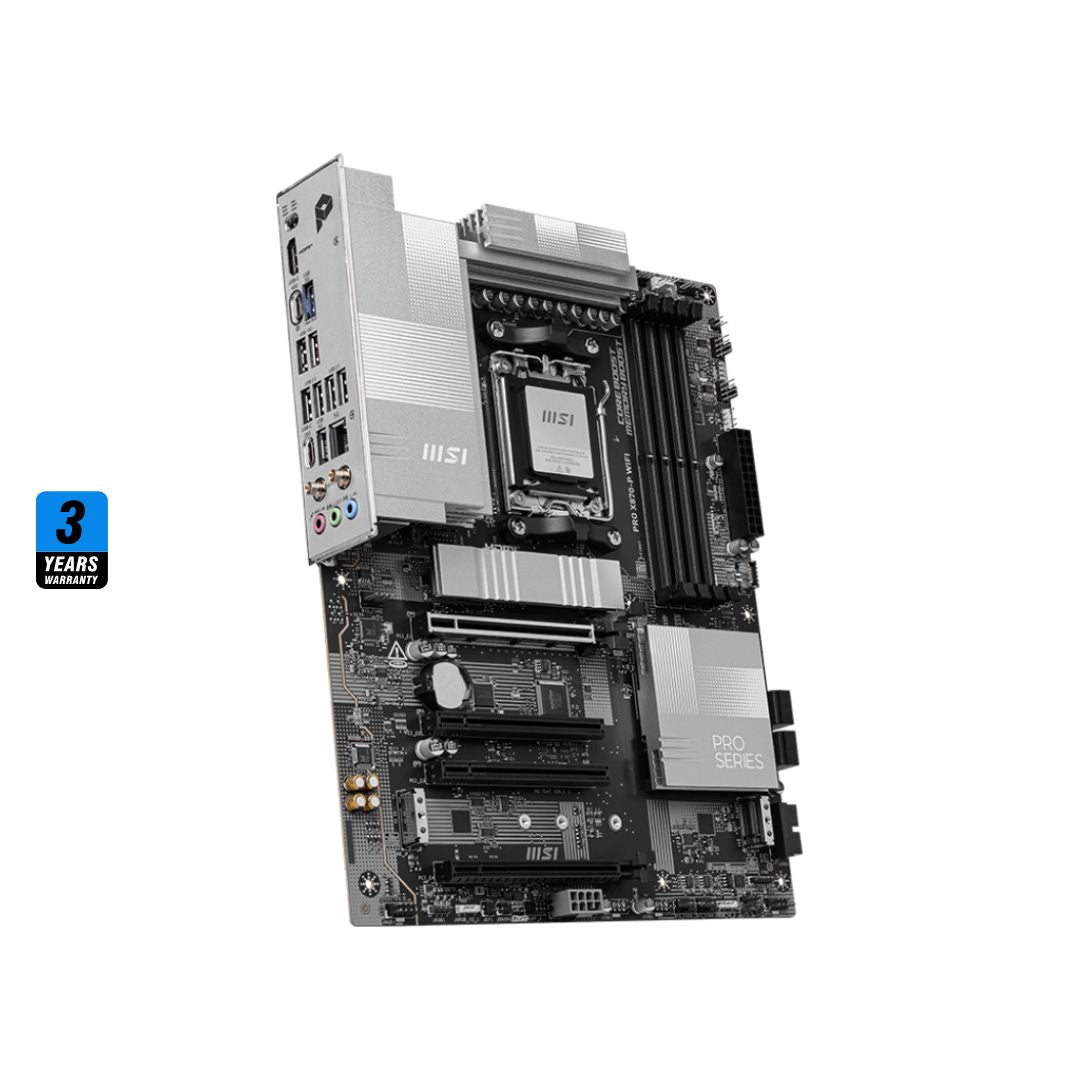

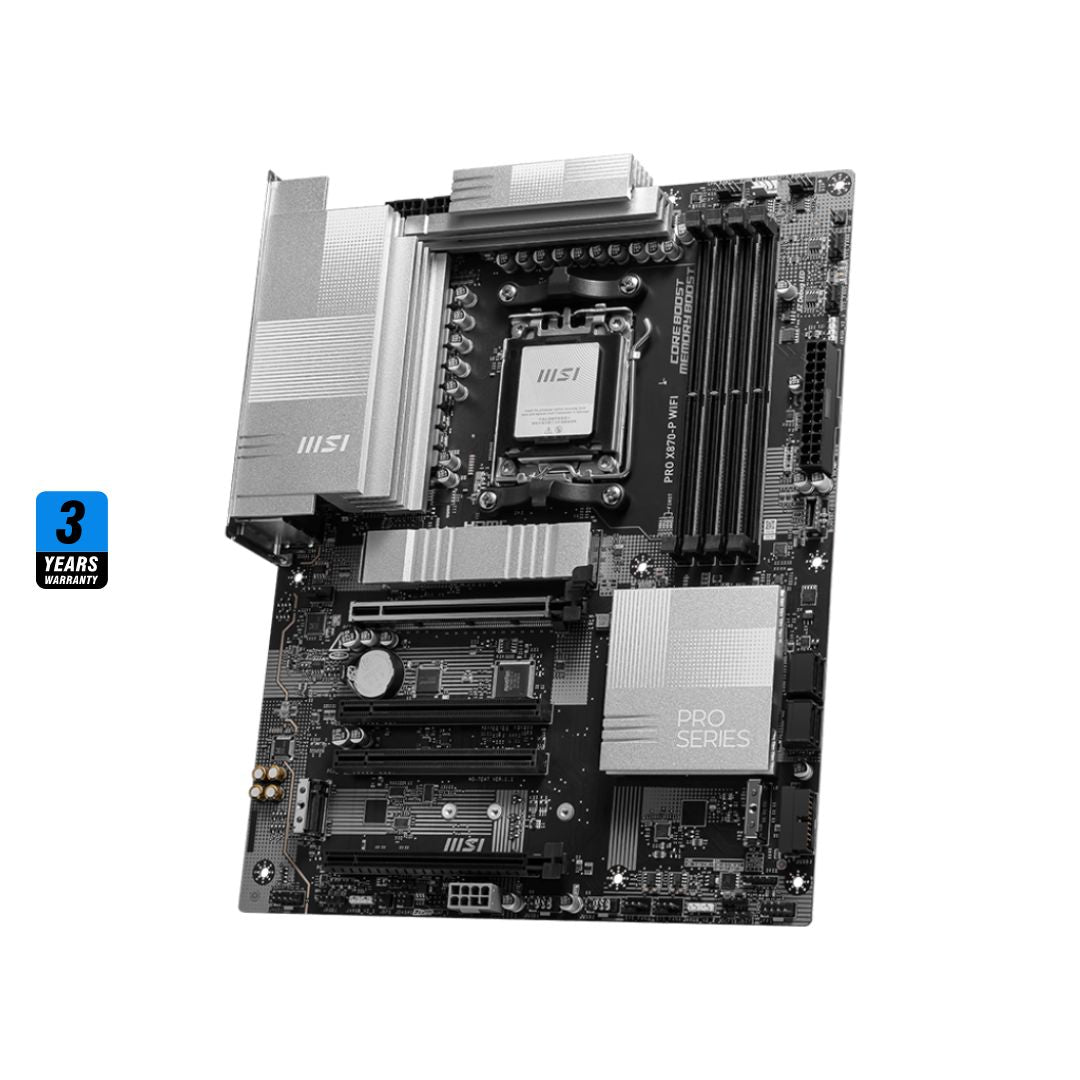

Motherboard Specification
Model: PRO X870-P WIFI
Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset: AMD X870
Memory Support: 4x DDR5 UDIMM, up to 256GB, 8200+ MT/s (OC), Dual-Channel, non-ECC, AMD EXPO
Graphics Ports: 1x HDMI™ 2.1 (4K@60Hz), 1x USB4® Type-C (DP 1.4, 4K@60Hz)
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
Storage: 3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s
Ethernet: Realtek® 8126VB 5G LAN
Wireless & Bluetooth: Wi-Fi 7 (2.4/5/6GHz), Bluetooth® 5.4
USB: Rear: 4x USB 2.0, 2x USB 5Gbps, 2x USB 10Gbps, 1x USB 20Gbps (Type-C), 1x USB 40Gbps (Type-C) | Front: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps (Type-C)
Audio: Realtek® ALC897, 7.1 HD Audio
Internal I/O Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR, 1x CPU Fan, 1x Pump/Combo Fan, 6x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JDASH, 3x JARGB_V2, 1x JRGB, 1x TPM, USB headers: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps (Type-C)

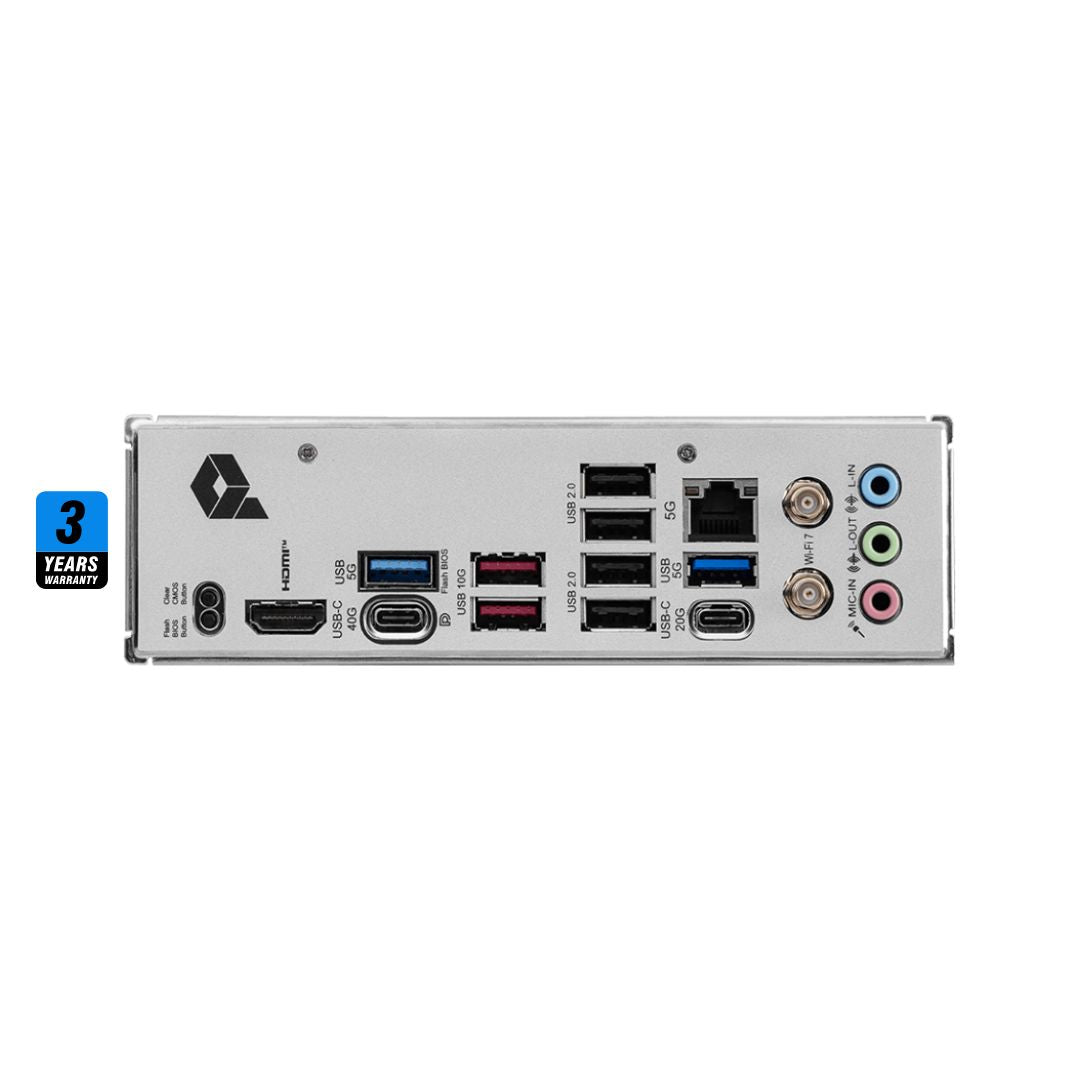

Back Panel I/O Ports: 1x HDMI™, 1x USB 40Gbps (Type-C), 1x USB 20Gbps (Type-C), 2x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0, 1x 5G LAN, Wi-Fi antenna, Audio connectors, Clear CMOS, Flash BIOS button
Form Factor: ATX
Motherboard Specification
Model: PRO X870-P WIFI
Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset: AMD X870
Memory Support: 4x DDR5 UDIMM, up to 256GB, 8200+ MT/s (OC), Dual-Channel, non-ECC, AMD EXPO
Graphics Ports: 1x HDMI™ 2.1 (4K@60Hz), 1x USB4® Type-C (DP 1.4, 4K@60Hz)
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
Storage: 3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s
Ethernet: Realtek® 8126VB 5G LAN
Wireless & Bluetooth: Wi-Fi 7 (2.4/5/6GHz), Bluetooth® 5.4
USB: Rear: 4x USB 2.0, 2x USB 5Gbps, 2x USB 10Gbps, 1x USB 20Gbps (Type-C), 1x USB 40Gbps (Type-C) | Front: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps (Type-C)
Audio: Realtek® ALC897, 7.1 HD Audio
Internal I/O Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR, 1x CPU Fan, 1x Pump/Combo Fan, 6x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JDASH, 3x JARGB_V2, 1x JRGB, 1x TPM, USB headers: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps (Type-C)
Back Panel I/O Ports: 1x HDMI™, 1x USB 40Gbps (Type-C), 1x USB 20Gbps (Type-C), 2x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0, 1x 5G LAN, Wi-Fi antenna, Audio connectors, Clear CMOS, Flash BIOS button
Form Factor: ATX
