Motherboard Specification
• Processor Support: Intel® LGA1700 for 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel® B760
• Memory Support: 2 x DDR5 DIMMs up to 96GB, up to 8000MHz (OC), Dual Channel, XMP support
• Graphics Ports: 1 x HDMI™ 2.1 (4K@60Hz), 1 x VGA
• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
• Storage: 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s
• Ethernet: Realtek 2.5Gb LAN
• Wireless & Bluetooth: Not included (supports optional M.2 Key E module)
• USB:
– Rear: 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
– Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (3 ports)
• Audio: Realtek 7.1 Surround HD Audio, 24-bit/192kHz playback, premium audio capacitors
• Internal I/O Connectors:
– 2 x M.2, 4 x SATA
– 1 x 24-pin ATX, 1 x 8-pin EPS
– 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
– 2 x ARGB Gen 2 headers, 1 x Aura RGB header
– Fan headers, Clear CMOS, TPM, S/PDIF, COM, AAFP, Speaker

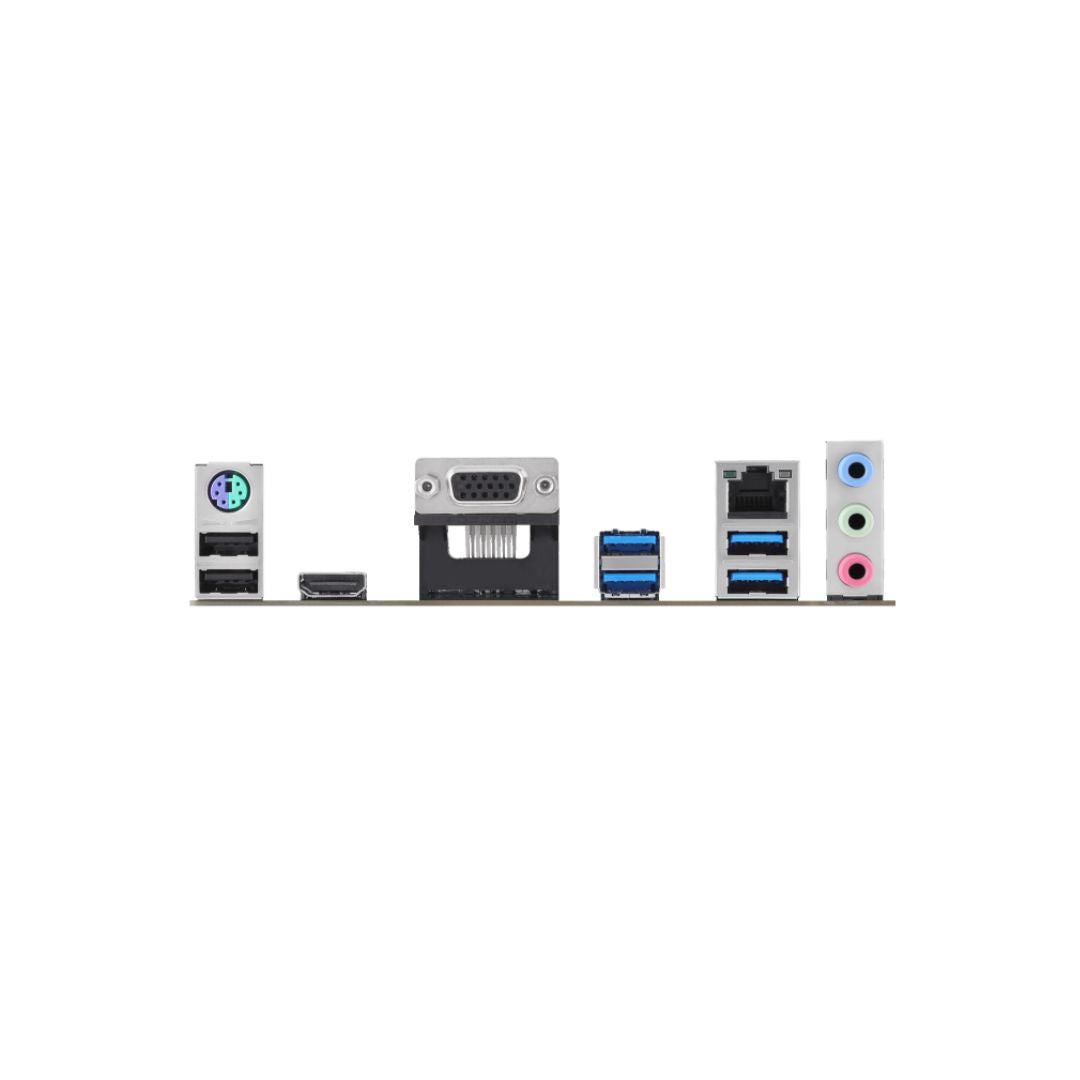

• Back Panel I/O Ports:
– 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
– 1 x HDMI, 1 x VGA
– 1 x Realtek 2.5Gb Ethernet
– 3 x Audio jacks
– 1 x PS/2 keyboard/mouse combo
• Form Factor: microATX (24.4 cm x 21.1 cm)
Motherboard Specification
• Processor Support: Intel® LGA1700 for 14th / 13th / 12th Gen Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel® B760
• Memory Support: 2 x DDR5 DIMMs up to 96GB, up to 8000MHz (OC), Dual Channel, XMP support
• Graphics Ports: 1 x HDMI™ 2.1 (4K@60Hz), 1 x VGA
• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
• Storage: 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s
• Ethernet: Realtek 2.5Gb LAN
• Wireless & Bluetooth: Not included (supports optional M.2 Key E module)
• USB:
– Rear: 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
– Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (3 ports)
• Audio: Realtek 7.1 Surround HD Audio, 24-bit/192kHz playback, premium audio capacitors
• Internal I/O Connectors:
– 2 x M.2, 4 x SATA
– 1 x 24-pin ATX, 1 x 8-pin EPS
– 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
– 2 x ARGB Gen 2 headers, 1 x Aura RGB header
– Fan headers, Clear CMOS, TPM, S/PDIF, COM, AAFP, Speaker
• Back Panel I/O Ports:
– 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
– 1 x HDMI, 1 x VGA
– 1 x Realtek 2.5Gb Ethernet
– 3 x Audio jacks
– 1 x PS/2 keyboard/mouse combo
• Form Factor: microATX (24.4 cm x 21.1 cm)
