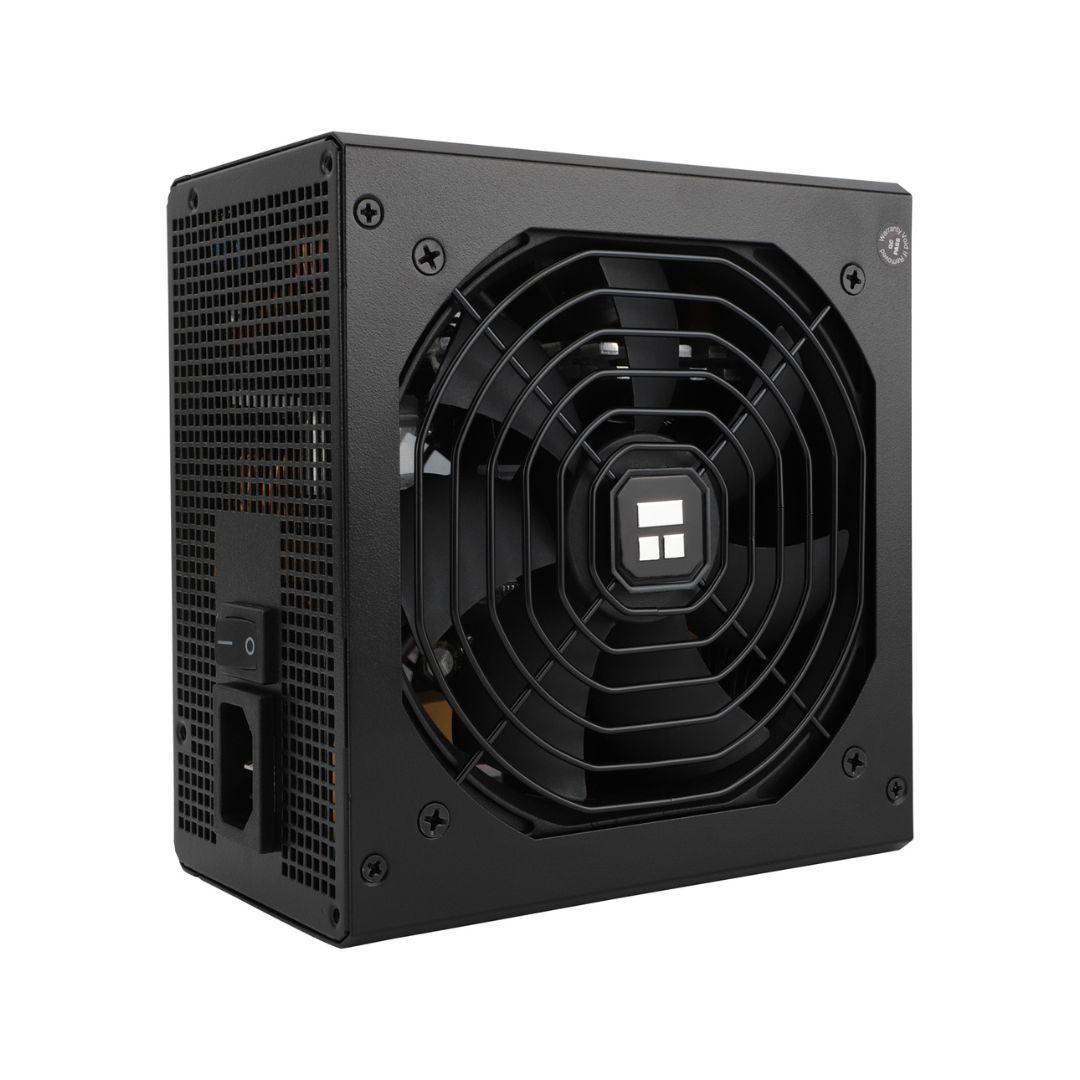

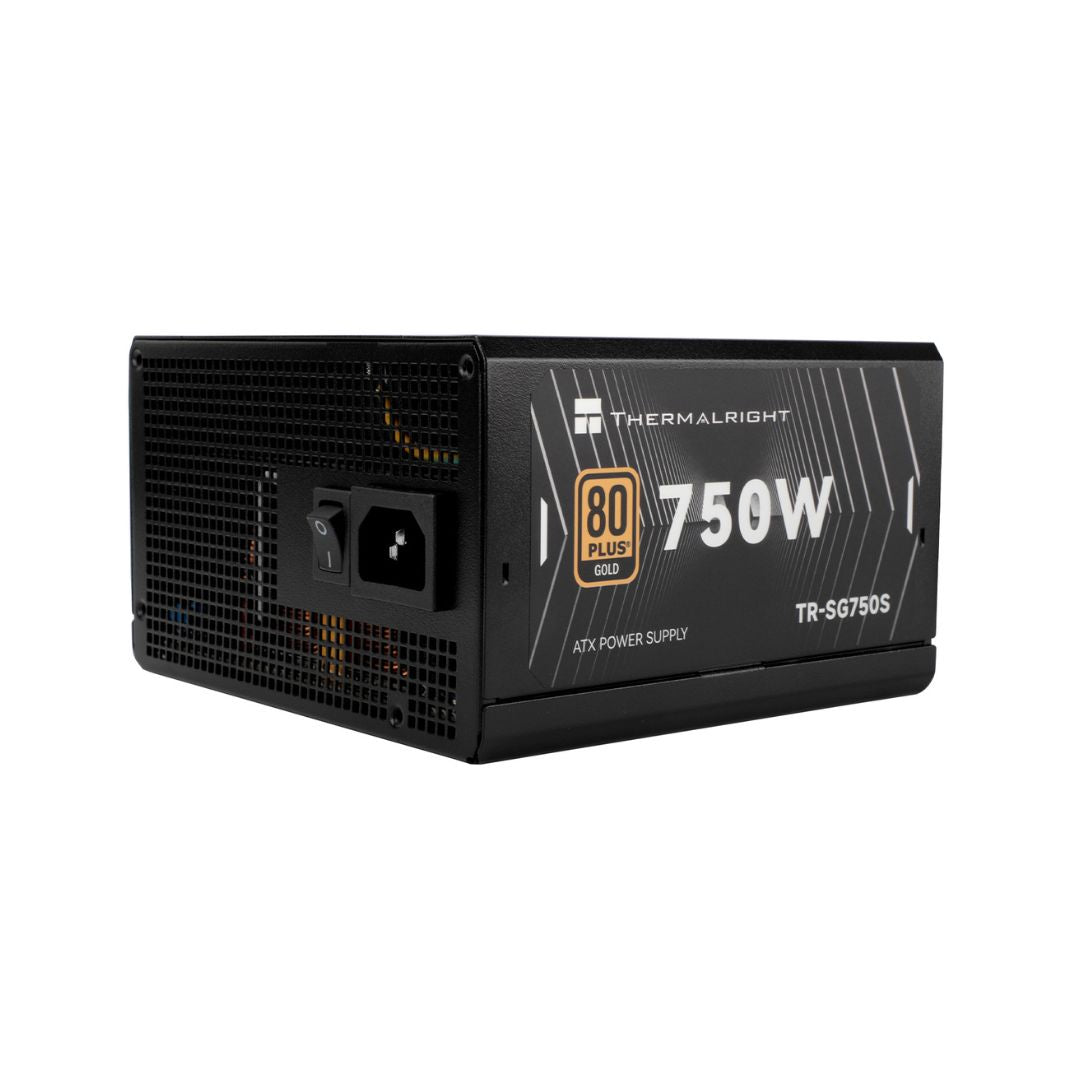

Thermalright SG750S 750W 80+ Gold Power Supply, Black

• Model: Thermalright TR-SG750S – 750W Power Supply

• Type: ATX Power Supply Unit (PSU)
• Wattage: 750W
• Efficiency Certification: 80 PLUS Gold
• Form Factor: Standard ATX
• Modular Design: Fully Modular
• Cooling: 120 mm Hydraulic Bearing Fan
• Input Voltage: 100 – 240V AC (Auto-ranging)
• PFC: Active PFC
• Protections: OVP (Over Voltage), UVP (Under Voltage), OCP (Over Current), OPP (Over Power), SCP (Short Circuit), OTP (Over Temperature)
• Connectors:
 – 1 × 24-pin ATX
 – 2 × 4+4-pin EPS12V (CPU)
 – 4 × 6+2-pin PCIe (GPU)
 – 8 × SATA
 – 3 × Molex (Peripheral)
• Dimensions: 140 × 150 × 86 mm
• Weight: ~1.5 kg
• MTBF: >100,000 hours
• Warranty: 5 years
• Features:
 – Japanese capacitors for stability and durability
 – Low-noise operation with optimized fan curve
 – High efficiency for gaming and workstation builds
 – Compact 140 mm length for wider case compatibility
