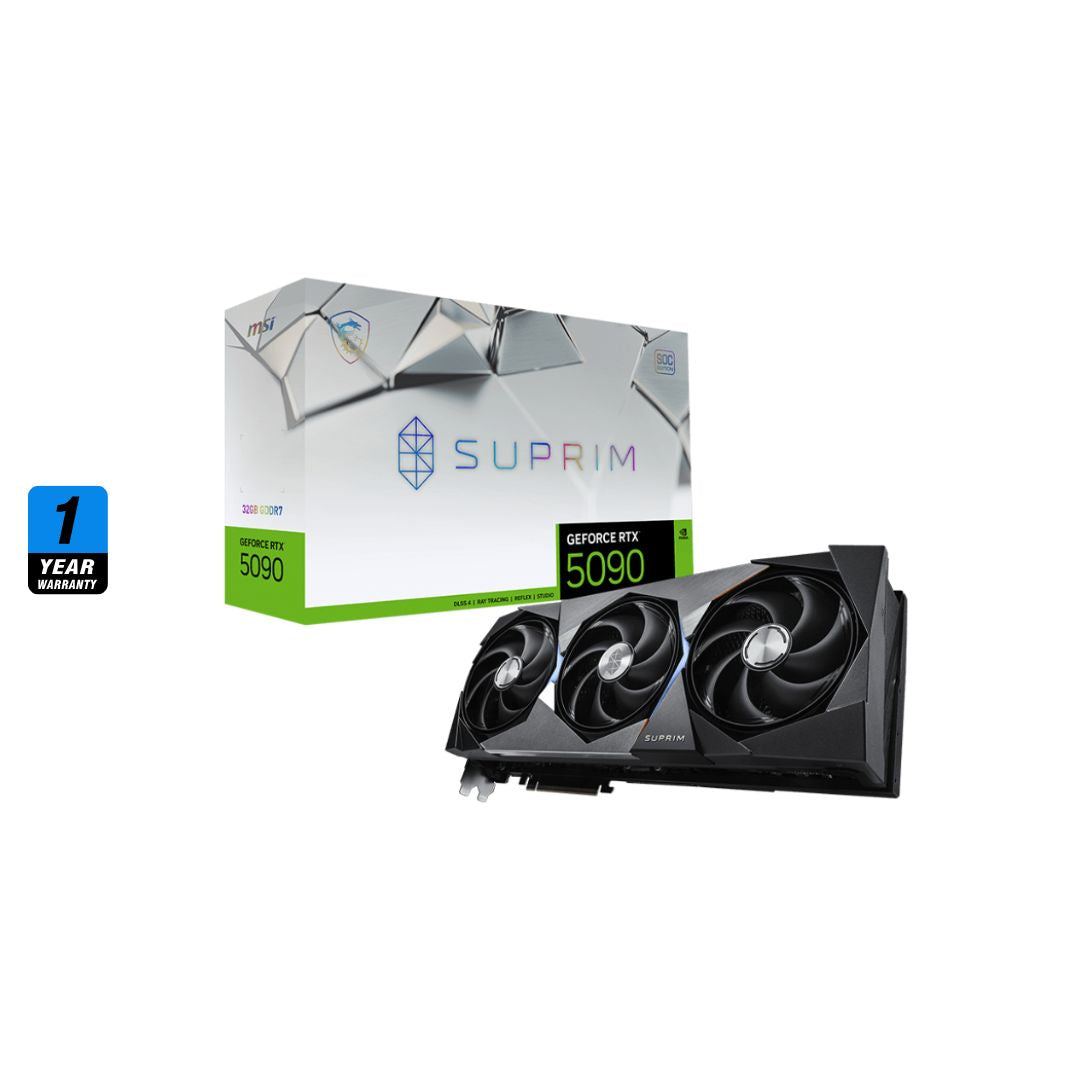

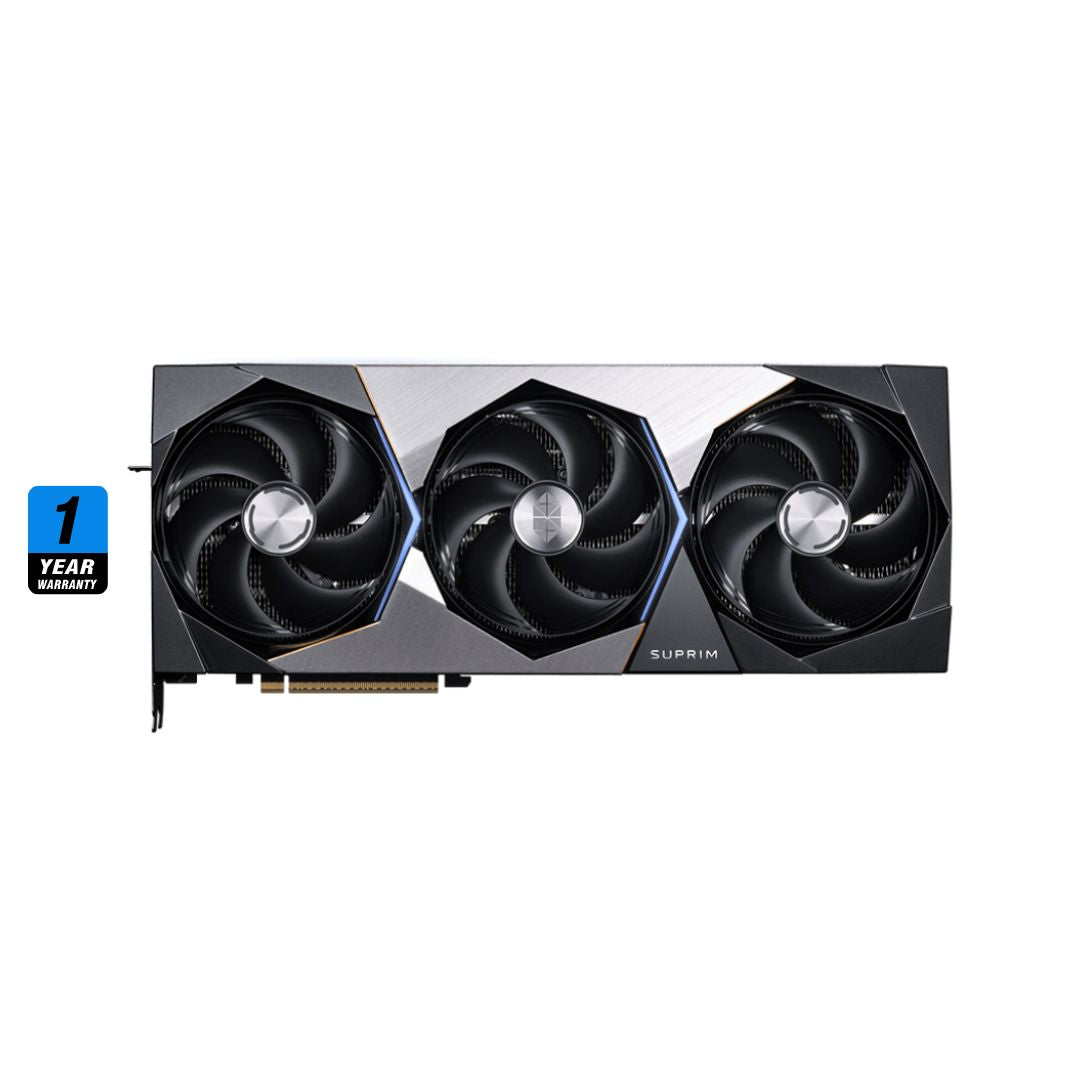

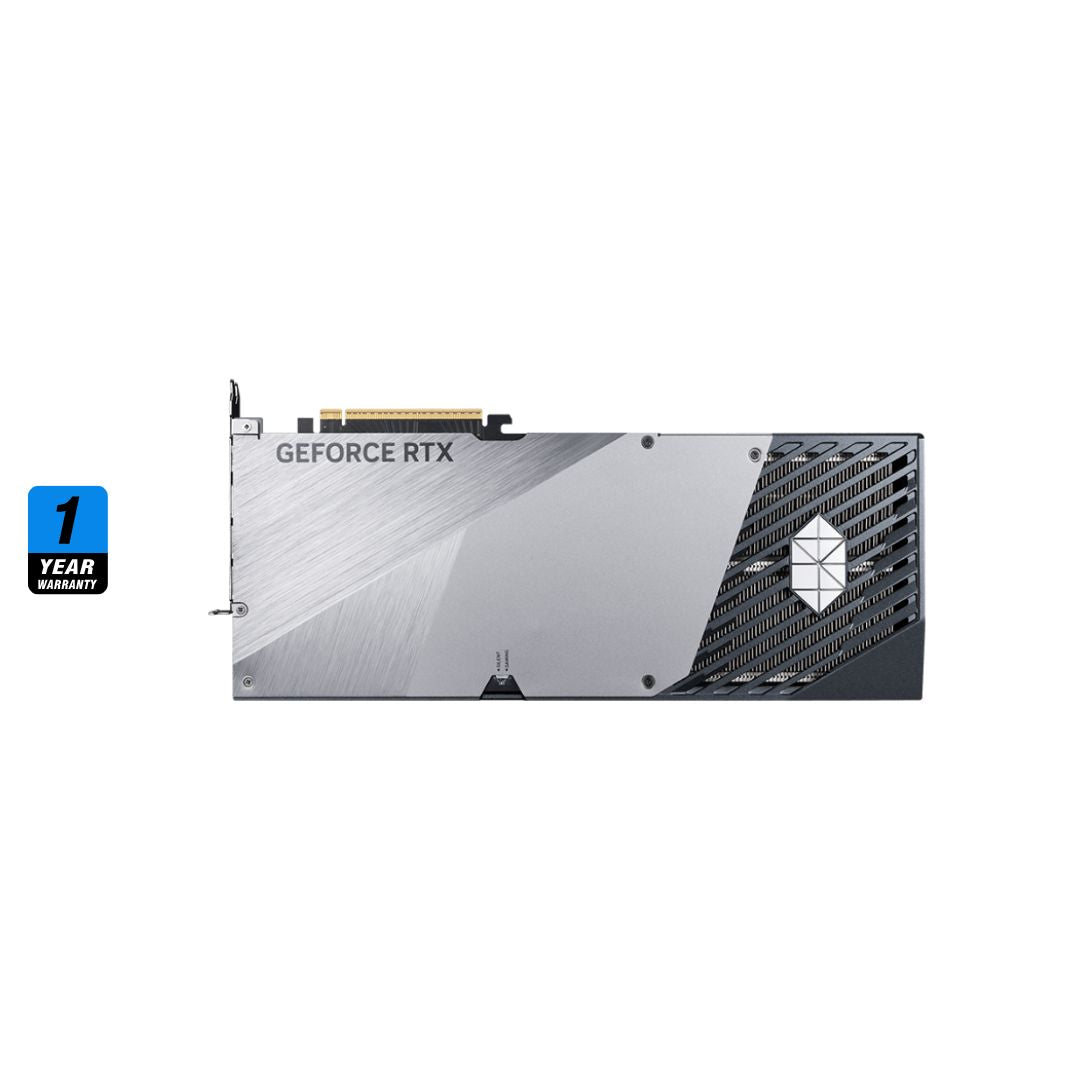

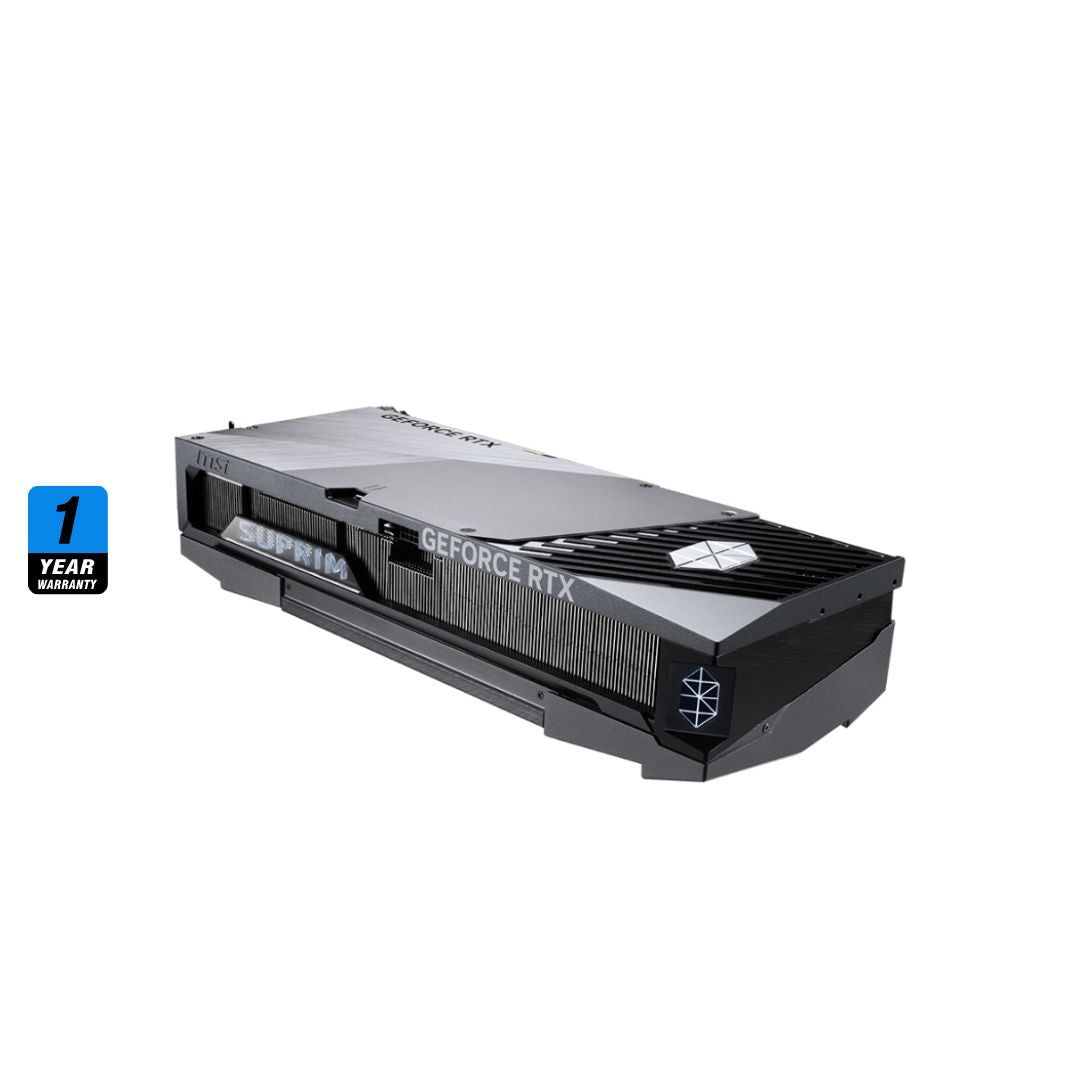

MSI GeForce RTX™ 5090 32G SUPRIM SOC Specifications
Basic Information
-
Marketing Name: GeForce RTX™ 5090 32G SUPRIM SOC
-
Model Name: G5090-32SPS
GPU Specifications
-
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5090
-
Interface: PCI Express® Gen 5 x16
-
Core Clocks:
-
Gaming Mode:
-
Extreme Performance: 2580 MHz (MSI Center)
-
Boost: 2565 MHz
-
-
Silent Mode:
-
Extreme Performance: 2527 MHz (MSI Center)
-
Boost: 2512 MHz
-
-
-
CUDA® Cores: 21760 Units
Memory Specifications
-
Memory Speed: 28 Gbps
-
Memory Size: 32GB GDDR7
-
Memory Bus: 512-bit

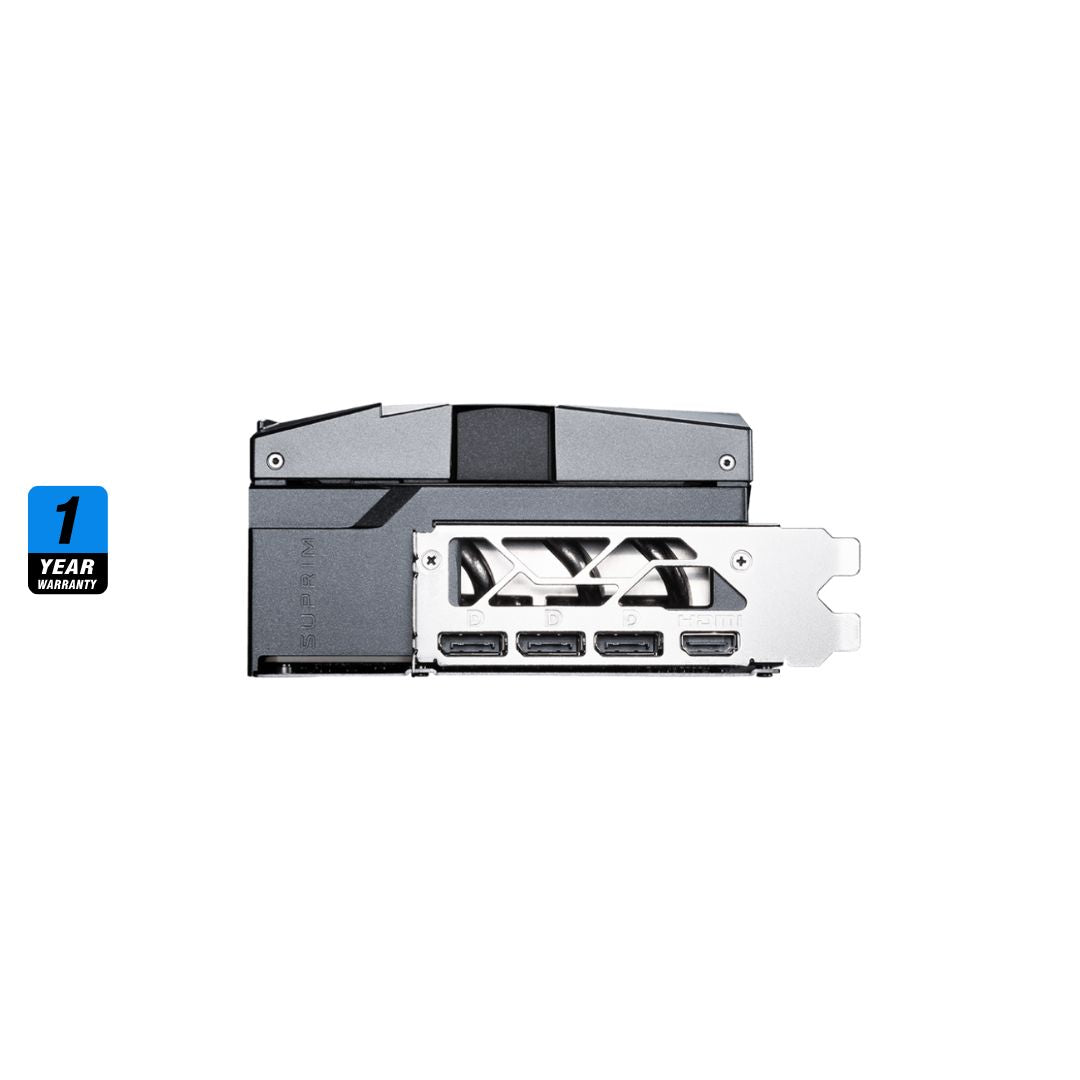

Display & Connectivity
-
Output:
-
DisplayPort x 3 (v2.1b)
-
HDMI™ x 1 (Supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR as per HDMI™ 2.1b)
-
-
HDCP Support: Yes
-
Maximum Displays: 4
-
Digital Maximum Resolution: 7680 x 4320
Power & Dimensions
-
Power Consumption:
-
Gaming Mode: 600W
-
Silent Mode: 575W
-
-
Power Connectors: 16-pin x1 (ATX 3.1 PSU recommended)
-
Recommended PSU: 1000W
-
Card Dimensions (mm): 359 x 150 x 76 (Triple-slot+)
-
Weight:
-
Card: 2840 g (2.84kg)
-
Package: 3695 g (3.7kg)
-
Software & Technologies
-
DirectX Version Support: 12 Ultimate
-
OpenGL Version Support: 4.6
-
G-SYNC® Technology: Yes
