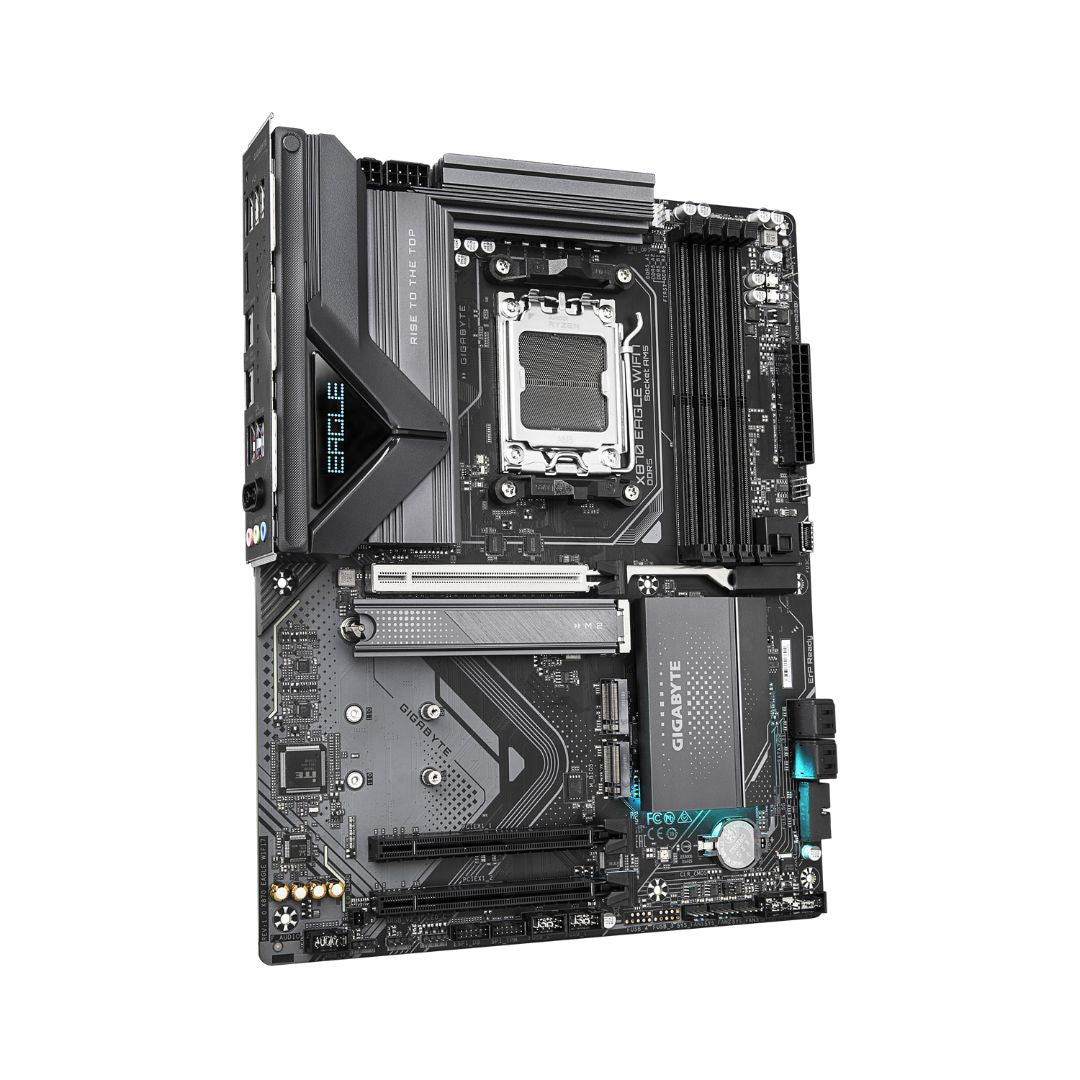

Gigabyte X870 EAGLE WIFI7

Motherboard Specification
CPU Socket: AMD Socket AM5
Chipset: AMD X870

Memory: Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s, up to 256 GB, Dual channel
Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics, HDMI 2.1 (4096x2160@60 Hz), USB4 Type-C (3840x2160@240 Hz)
Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Networking: Realtek® 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925, Realtek® Wi-Fi 7 RTL8922AE, Bluetooth 5.4

Expansion Slots:
1 x PCI Express x16 slot (PCIEX16), PCIe 5.0 x16 mode (Ryzen™ 9000/7000), PCIe 4.0 x8/x4 mode (Ryzen™ 8000)
2 x PCI Express x16 slots (PCIe 3.0 x1)

Storage Interface:
1 x M.2 (M2A_CPU), PCIe 5.0 x4/x2
1 x M.2 (M2C_SB), PCIe 4.0 x2
1 x M.2 (M2B_SB), PCIe 4.0 x4/x2
4 x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for NVMe SSDs (RAID 5 only on Ryzen™ 9000), RAID 0, RAID 1, RAID 10 for SATA

USB Ports:
Back Panel:

• 2 x USB4 Type-C
• 1 x USB 3.2 Gen 2 Type-A (red)
• 1 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1

Internal I/O:

• 1 x USB Type-C (USB 3.2 Gen 2x2)
• 4 x USB 3.2 Gen 1 (2 internal, 2 back)
• 4 x USB 2.0/1.1

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 3 x M.2 connectors
• 1 x USB Type-C header (USB 3.2 Gen 2x2)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x TPM header
• 1 x front panel header
• 1 x front panel audio header

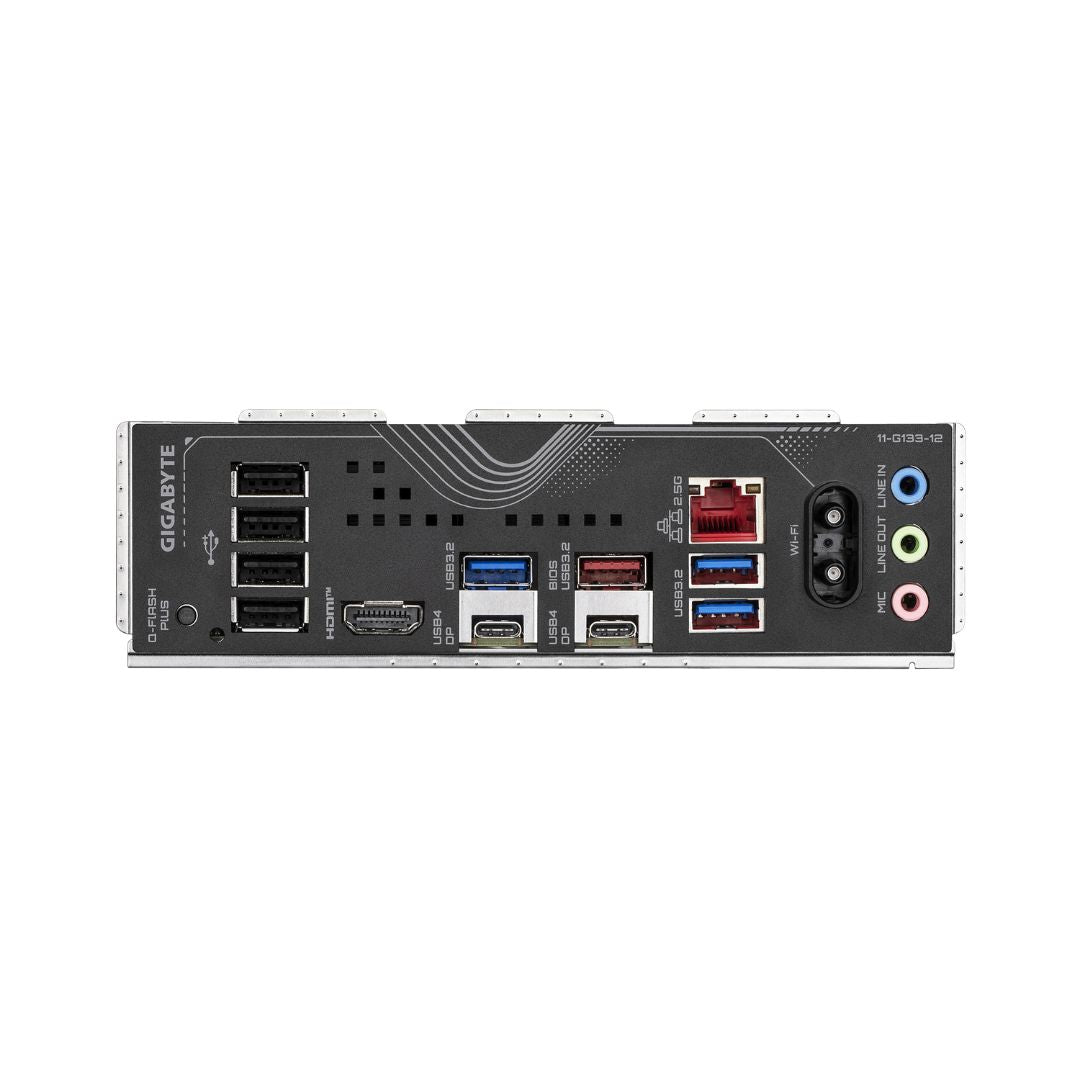

Back Panel I/O Ports:

• 1 x HDMI port
• 2 x USB4 Type-C ports (DisplayPort)
• 1 x USB 3.2 Gen 2 Type-A (red)
• 3 x USB 3.2 Gen 1
• 4 x USB 2.0/1.1
• 1 x RJ-45 LAN port
• 3 x audio jacks
• 2 x antenna connectors
• 1 x Q-Flash Plus button

BIOS:
1 x 256 Mbit flash, AMI UEFI BIOS

Unique Features:
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Operating System Support:
Windows 11 64-bit

Form Factor:
ATX Form Factor, 30.5cm x 24.4cm
