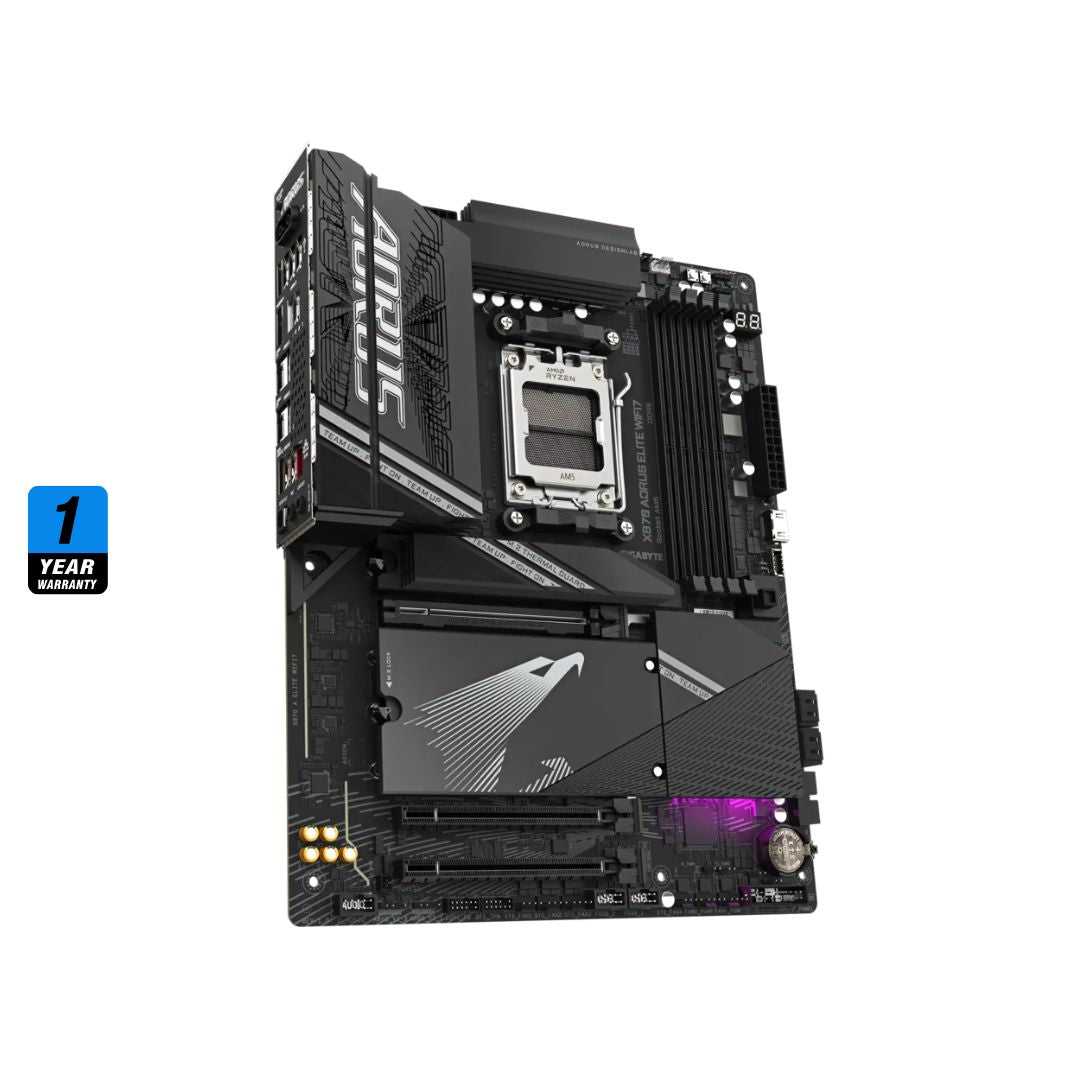

Gigabyte X870 GAMING WIFI6, Motherboard
- Product SKU: GLOBALIQ
Motherboard Specification
• Processor Support : AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series
• Chipset : AMD X870
• Memory Support : 4 x DDR5 DIMM, up to 256GB, speeds up to 8200 MT/s (OC), dual channel, supports AMD EXPO™ & XMP
• Graphics Ports :
-
2 x USB4® Type-C (DP 3840x2160@240Hz)
-
1 x HDMI (4096x2160@60Hz)
-
Front HDMI (1920x1080@30Hz)
• Expansion Slots :
-
1 x PCIe x16 (CPU, PCIe 5.0/4.0/3.0 depending on CPU)
-
2 x PCIe x1 (PCIe 3.0, chipset)
• Storage :
-
3 x M.2 (PCIe 5.0/4.0 x4/x2, CPU + chipset based)
-
4 x SATA 6Gb/s
-
RAID 0/1/5/10 for NVMe & SATA
• Ethernet : Realtek® 2.5GbE LAN
• Wireless & Bluetooth : Realtek® Wi-Fi 6 (RTL8851BE), Bluetooth® 5.3
• USB :
-
Back: 2 x USB4® Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0
-
Internal: USB-C 3.2 Gen 2x2, 4 x USB 2.0, 1 x USB 3.2 Gen 1 header (2 ports)
• Audio : Realtek® Audio CODEC, 7.1 Channel HD Audio, S/PDIF Out
• Internal I/O Connectors :
1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin ATX 12V
6 x Fan headers, 3 x ARGB Gen2, 1 x RGB
4 x SATA, 3 x M.2
USB-C 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
TPM header, Reset/CMOS jumpers

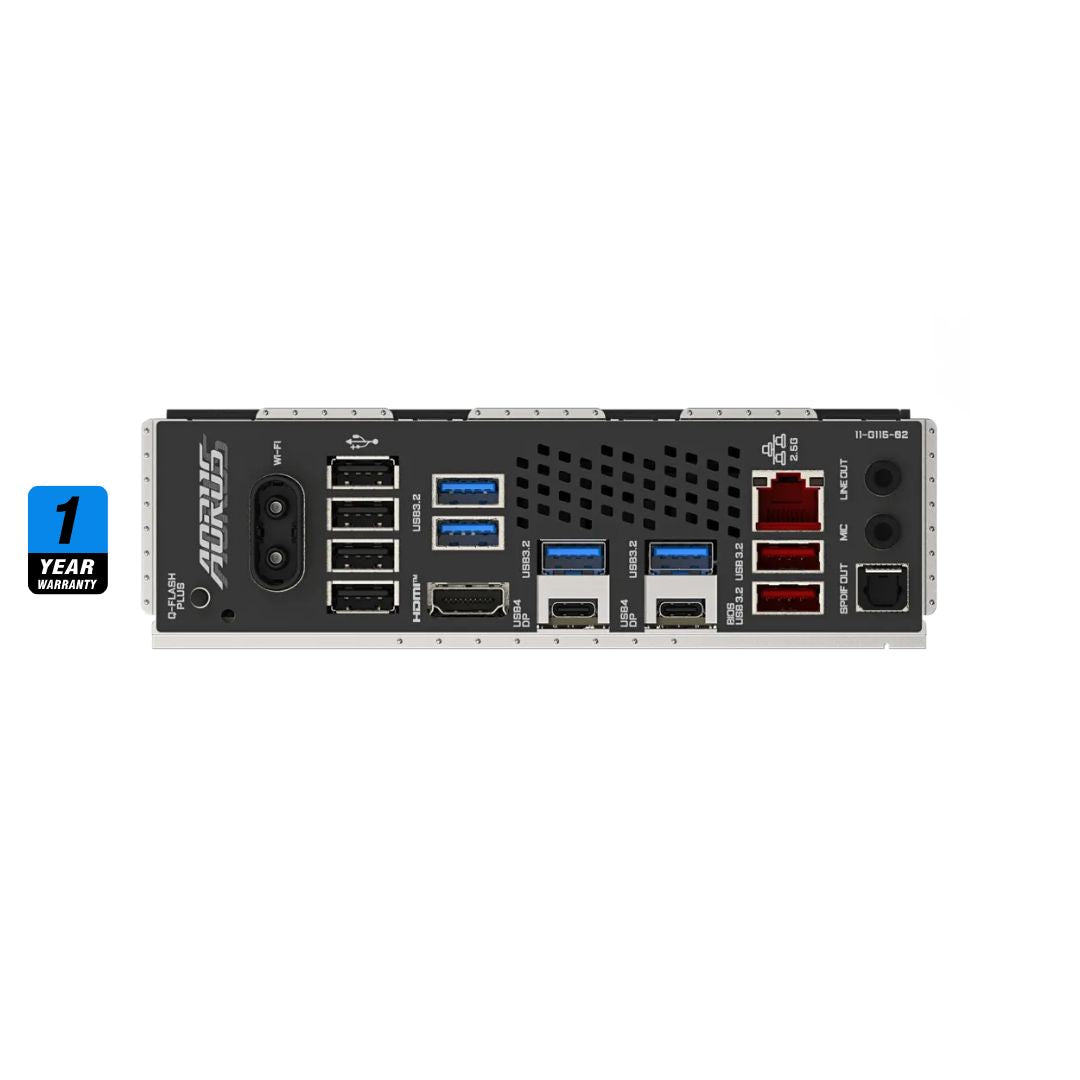

• Back Panel I/O Ports :
1 x Q-Flash Plus button
1 x HDMI, 2 x USB4® Type-C
1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1
4 x USB 2.0, 1 x RJ-45

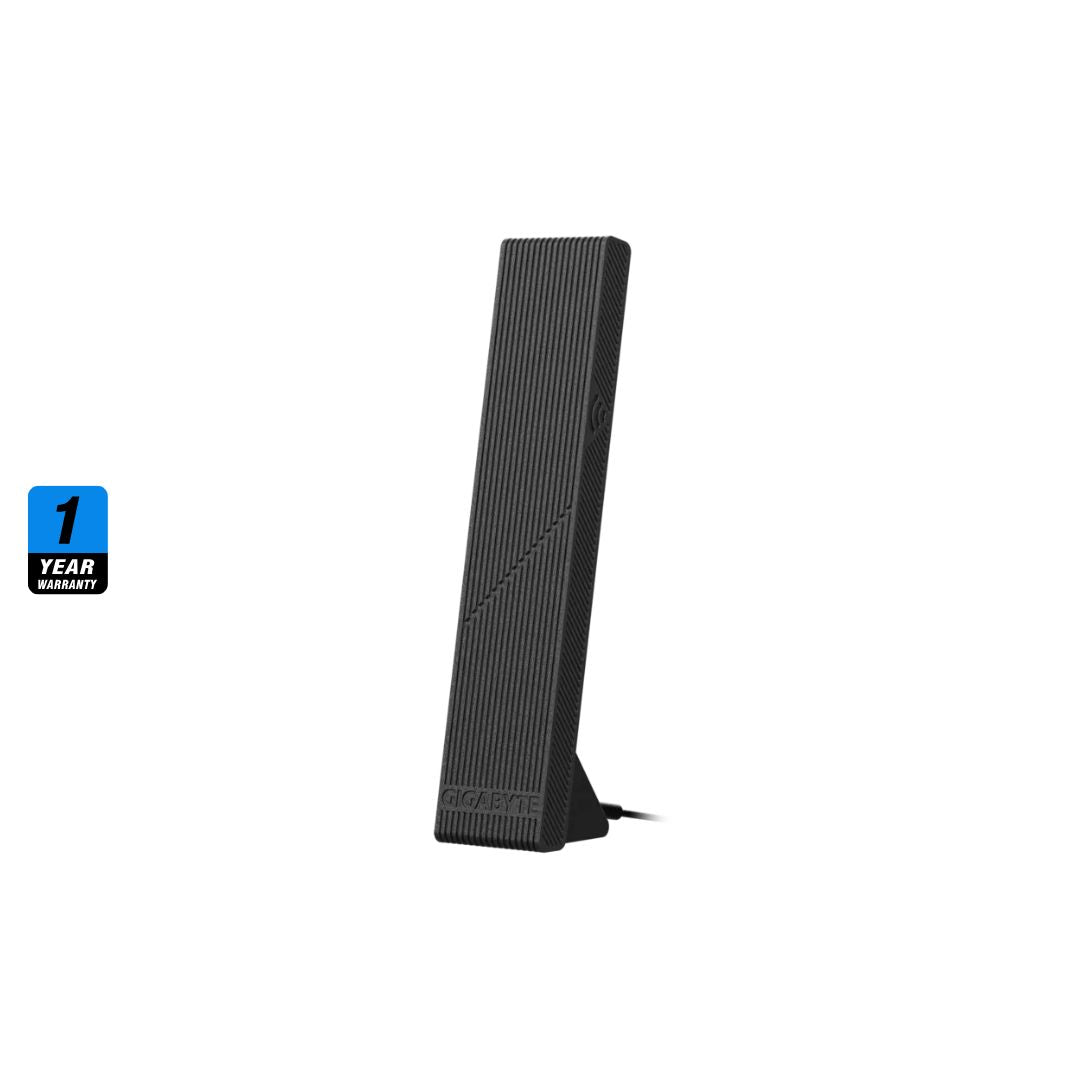

3 x Audio jacks, 2 x SMA Wi-Fi antenna
• Form Factor : ATX, 30.5cm x 24.4cm
Motherboard Specification
• Processor Support : AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series
• Chipset : AMD X870
• Memory Support : 4 x DDR5 DIMM, up to 256GB, speeds up to 8200 MT/s (OC), dual channel, supports AMD EXPO™ & XMP
• Graphics Ports :
-
2 x USB4® Type-C (DP 3840x2160@240Hz)
-
1 x HDMI (4096x2160@60Hz)
-
Front HDMI (1920x1080@30Hz)
• Expansion Slots :
-
1 x PCIe x16 (CPU, PCIe 5.0/4.0/3.0 depending on CPU)
-
2 x PCIe x1 (PCIe 3.0, chipset)
• Storage :
-
3 x M.2 (PCIe 5.0/4.0 x4/x2, CPU + chipset based)
-
4 x SATA 6Gb/s
-
RAID 0/1/5/10 for NVMe & SATA
• Ethernet : Realtek® 2.5GbE LAN
• Wireless & Bluetooth : Realtek® Wi-Fi 6 (RTL8851BE), Bluetooth® 5.3
• USB :
-
Back: 2 x USB4® Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0
-
Internal: USB-C 3.2 Gen 2x2, 4 x USB 2.0, 1 x USB 3.2 Gen 1 header (2 ports)
• Audio : Realtek® Audio CODEC, 7.1 Channel HD Audio, S/PDIF Out
• Internal I/O Connectors :
1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin ATX 12V
6 x Fan headers, 3 x ARGB Gen2, 1 x RGB
4 x SATA, 3 x M.2
USB-C 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0
TPM header, Reset/CMOS jumpers
• Back Panel I/O Ports :
1 x Q-Flash Plus button
1 x HDMI, 2 x USB4® Type-C
1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1
4 x USB 2.0, 1 x RJ-45
3 x Audio jacks, 2 x SMA Wi-Fi antenna
• Form Factor : ATX, 30.5cm x 24.4cm
