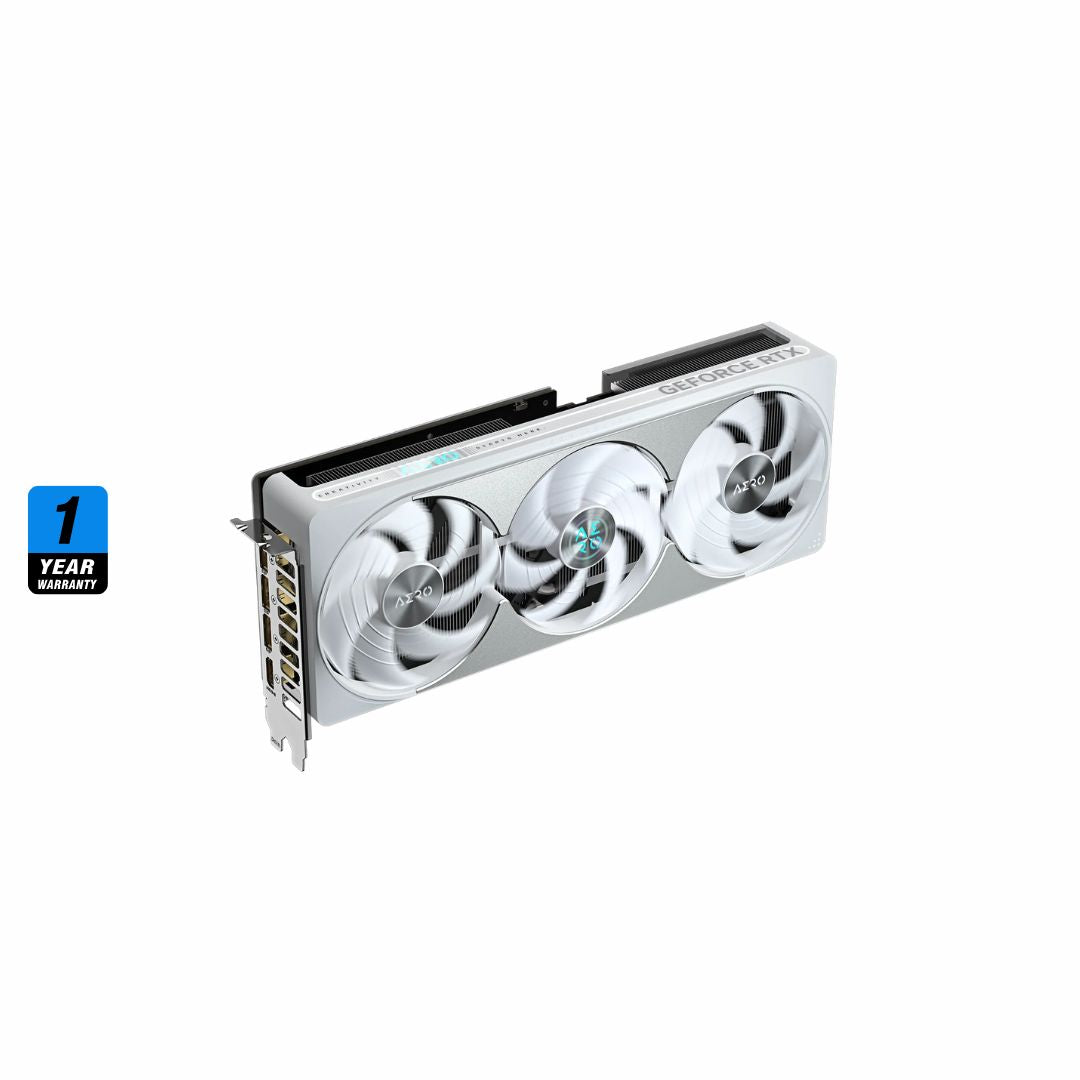

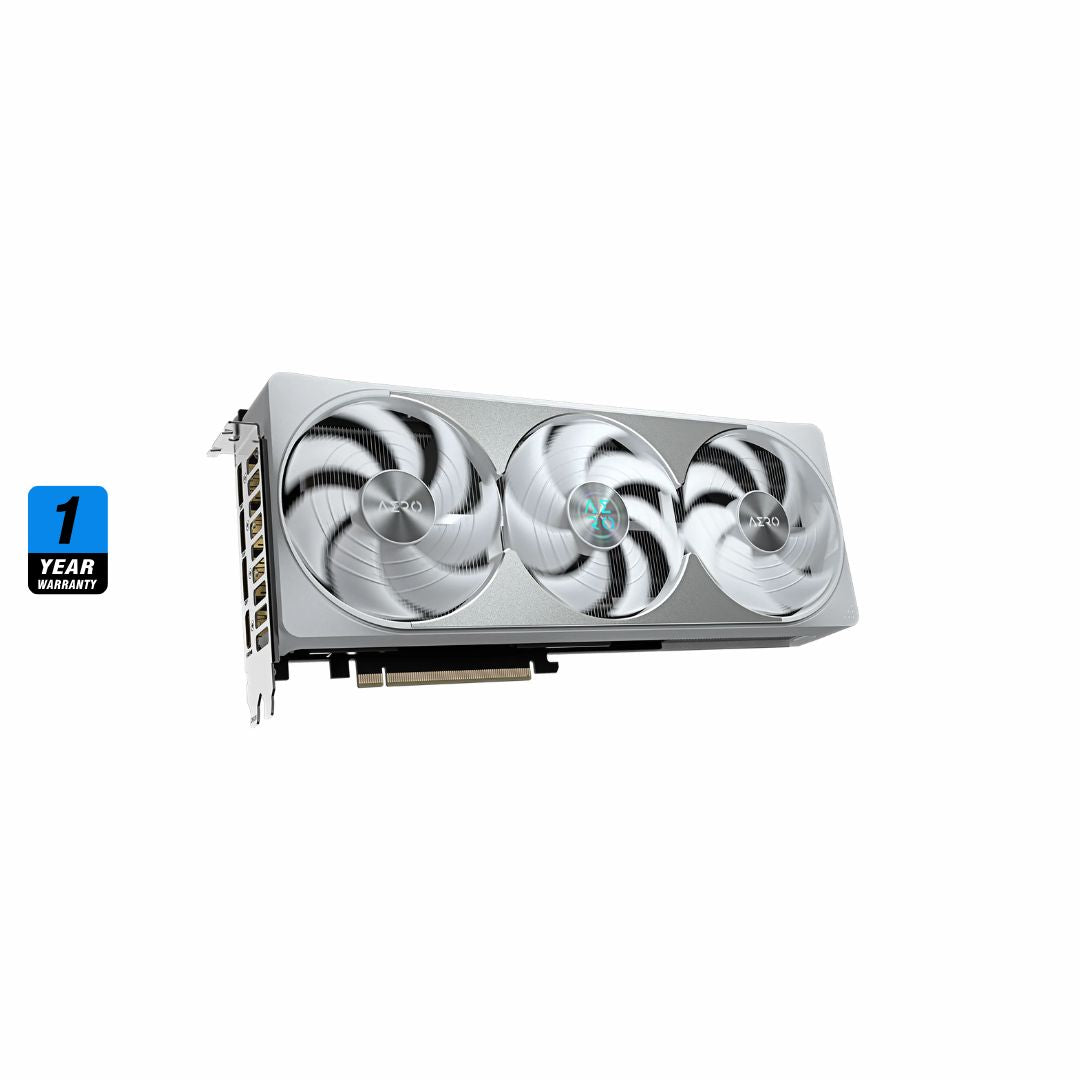

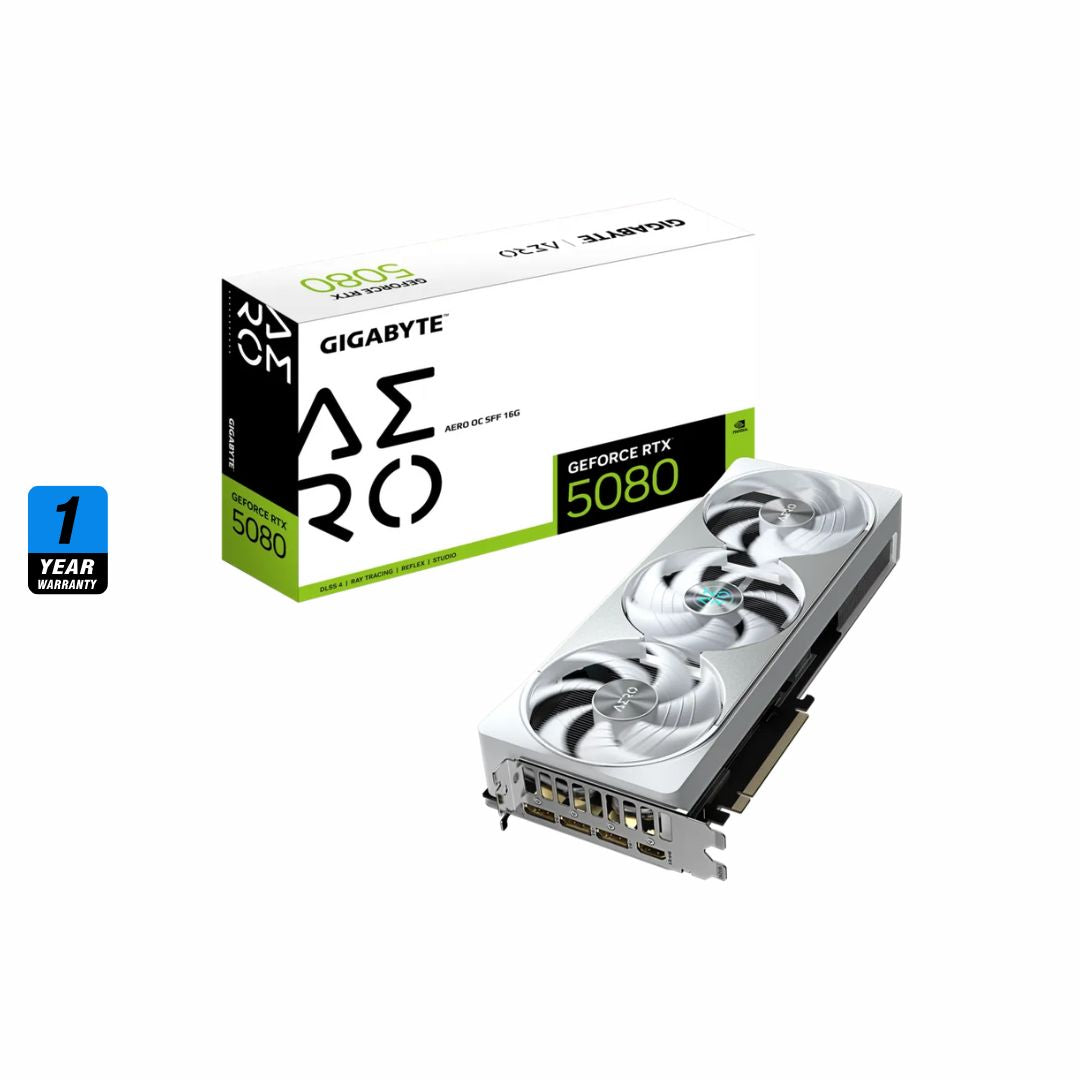

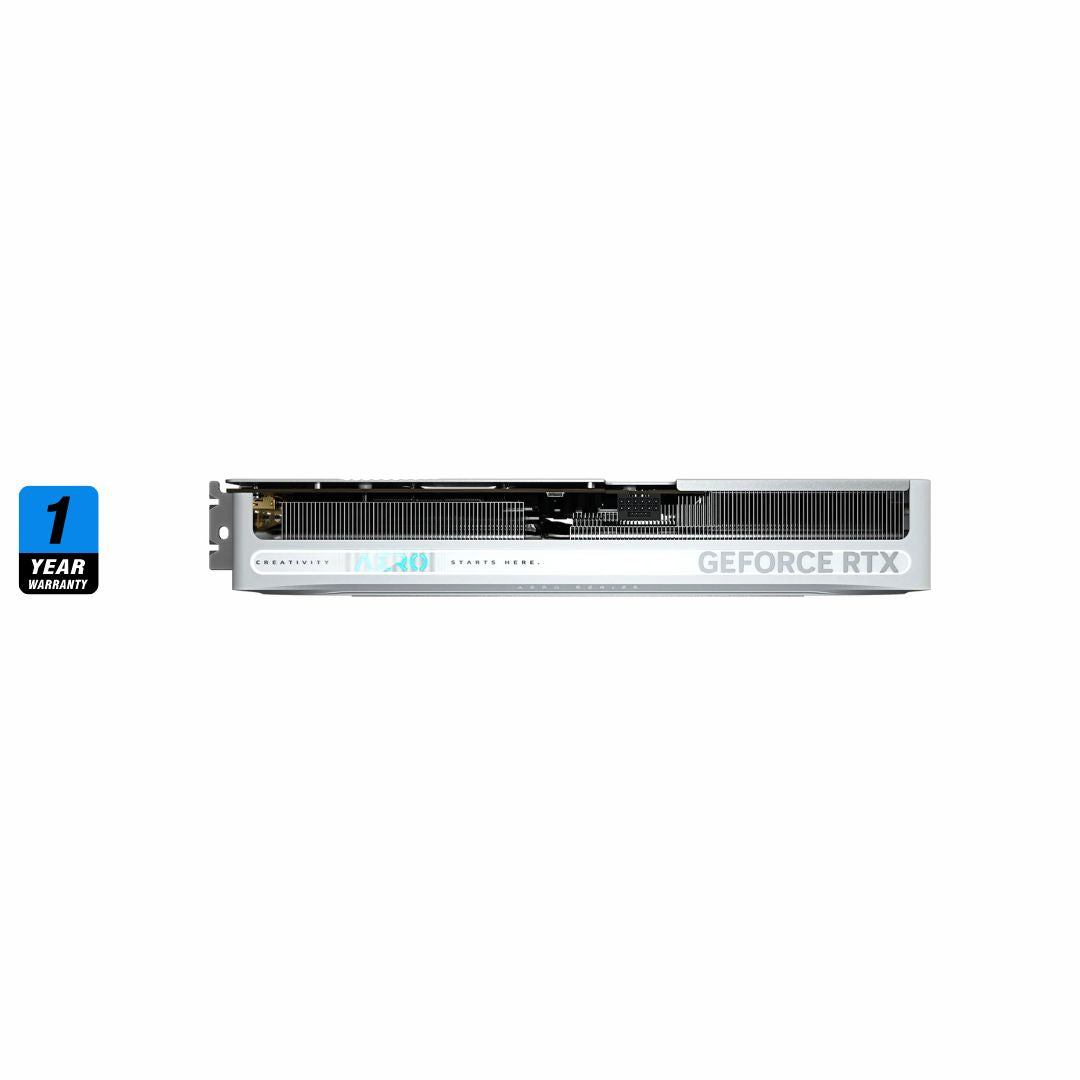

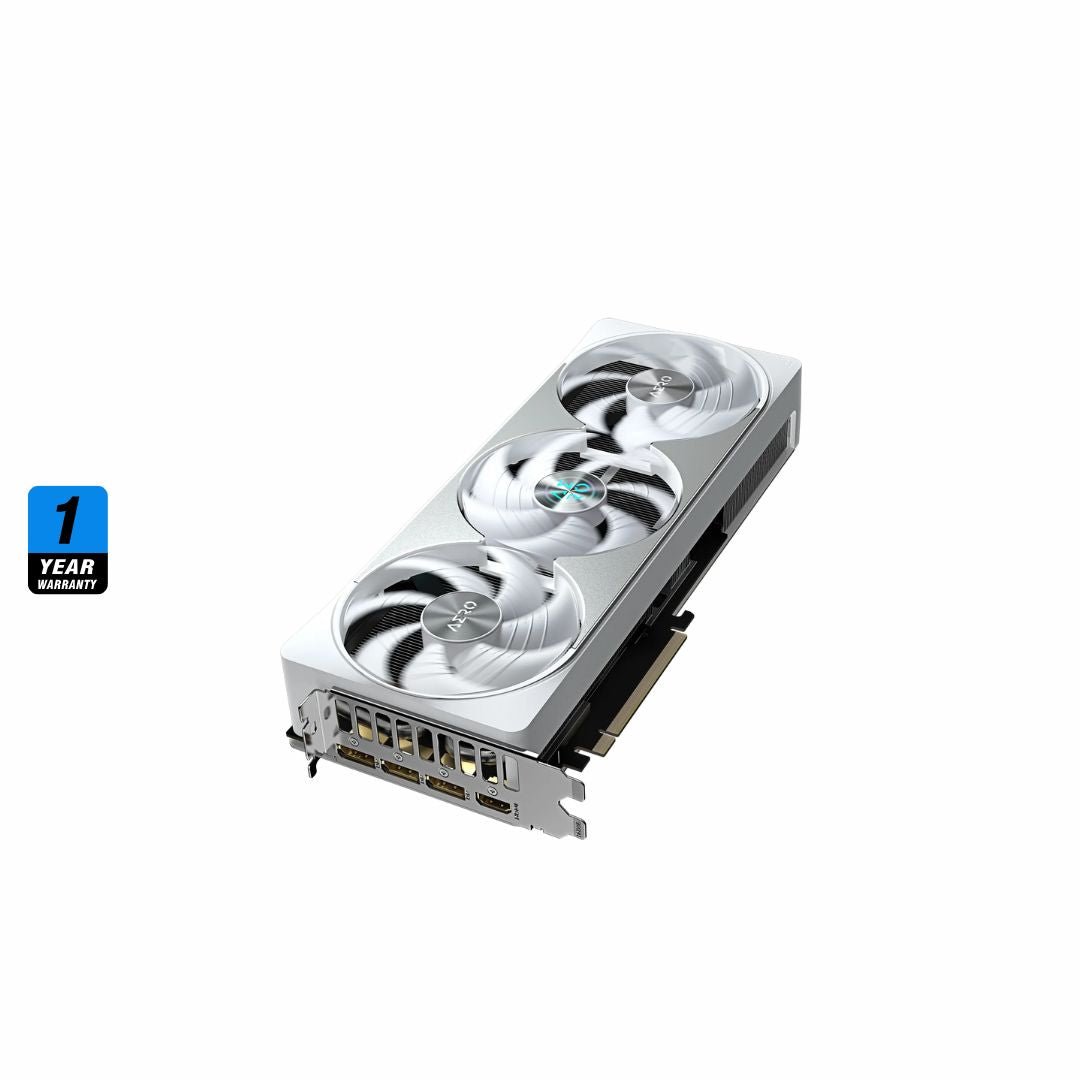

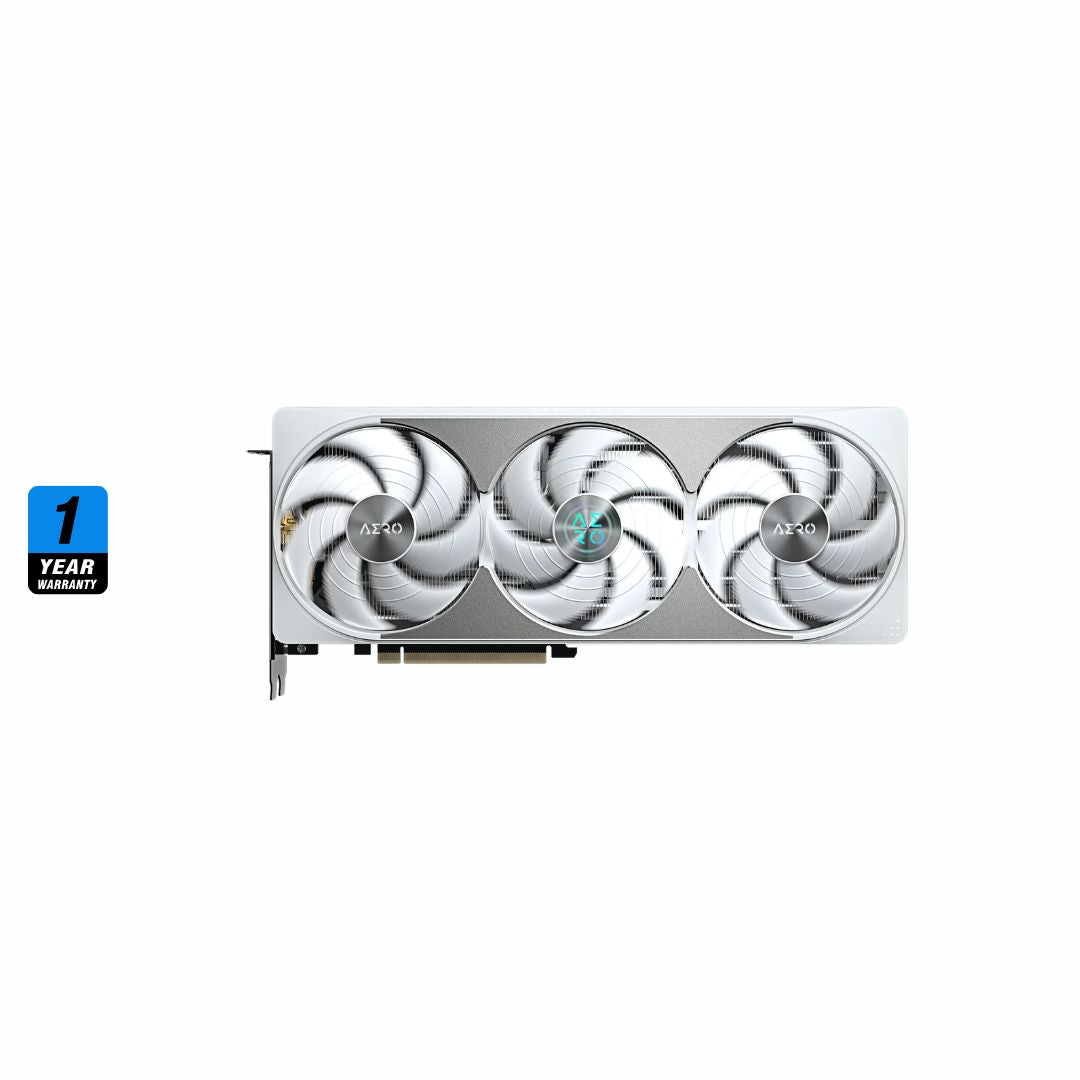

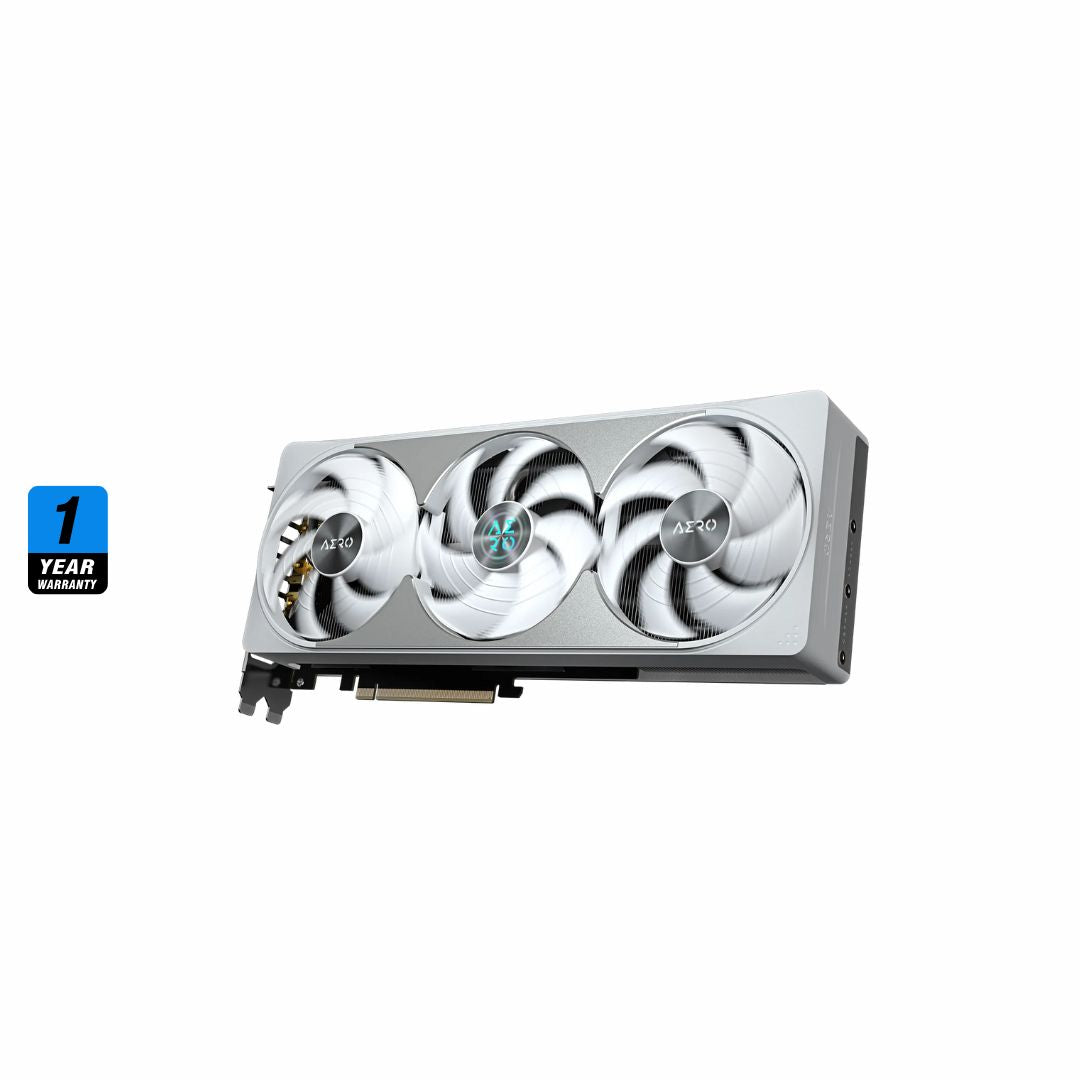

Gigabyte GeForce RTX™ 5080 AERO OC SFF 16G
- Product SKU: 109158
NVIDIA GeForce RTX 5080 Specifications
Core Architecture
-
CUDA Cores: 10,752 (40% increase over RTX 4080's 9,728)
-
Clock Speeds:
-
Reference: 2,617 MHz
-
Boost (OC): 2,730 MHz (+4.3% over reference)
-
-
Process Node: Expected TSMC 4N (unconfirmed)
Memory Subsystem
-
Capacity: 16GB GDDR7
-
Memory Speed: 30 Gbps (industry-leading)
-
Bus Width: 256-bit
-
Bandwidth: 960 GB/s (30 Gbps × 256-bit ÷ 8)
-
*Compare to RTX 4080: 716.8 GB/s (22.4 Gbps GDDR6X)*
-
Power Delivery
-
PSU Recommendation: 850W (suggests ~320W TDP)
-
Connector: 16-pin (12V-2x6)
-
Includes adapter: 1x 12V-2x6 to 3x PCIe 8-pin
-
Physical Dimensions
-
Size: 304 × 126 × 50 mm
-
More compact than RTX 4090 (304mm vs. 304mm length, but slimmer)
-
-
Cooling: Expected vapor chamber design

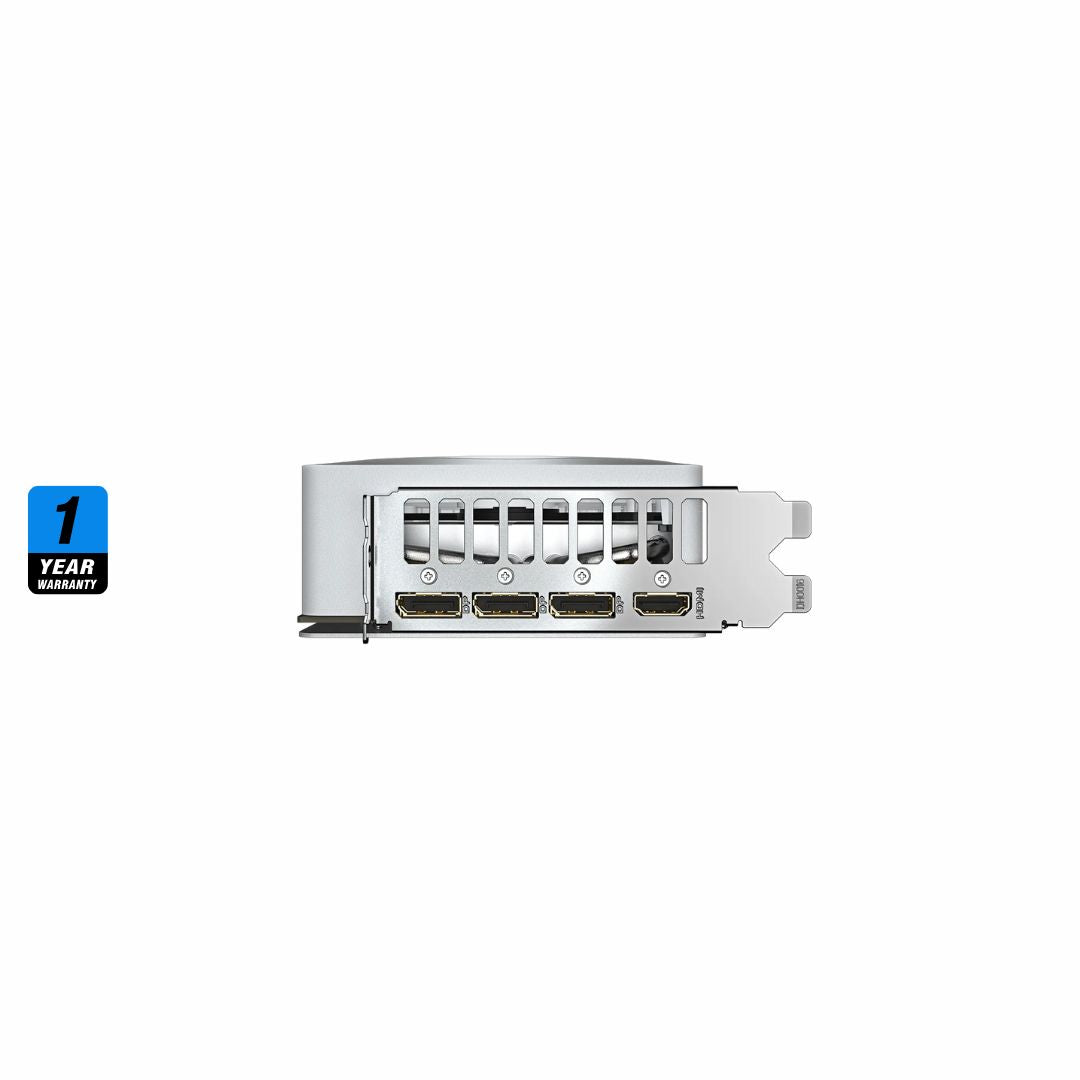

Display Outputs
-
Max Resolution: 8K (7680×4320)
-
Ports:
-
3× DisplayPort 2.1b (8K@120Hz with DSC)
-
1× HDMI 2.1b (8K@60Hz, 4K@120Hz)
-
Included Accessories
-
VGA manual
-
Warranty documentation
-
Power adapter (16-pin to 3x 8-pin)
-
Anti-sag VGA holder
-
Holder manual
NVIDIA GeForce RTX 5080 Specifications
Core Architecture
-
CUDA Cores: 10,752 (40% increase over RTX 4080's 9,728)
-
Clock Speeds:
-
Reference: 2,617 MHz
-
Boost (OC): 2,730 MHz (+4.3% over reference)
-
-
Process Node: Expected TSMC 4N (unconfirmed)
Memory Subsystem
-
Capacity: 16GB GDDR7
-
Memory Speed: 30 Gbps (industry-leading)
-
Bus Width: 256-bit
-
Bandwidth: 960 GB/s (30 Gbps × 256-bit ÷ 8)
-
*Compare to RTX 4080: 716.8 GB/s (22.4 Gbps GDDR6X)*
-
Power Delivery
-
PSU Recommendation: 850W (suggests ~320W TDP)
-
Connector: 16-pin (12V-2x6)
-
Includes adapter: 1x 12V-2x6 to 3x PCIe 8-pin
-
Physical Dimensions
-
Size: 304 × 126 × 50 mm
-
More compact than RTX 4090 (304mm vs. 304mm length, but slimmer)
-
-
Cooling: Expected vapor chamber design
Display Outputs
-
Max Resolution: 8K (7680×4320)
-
Ports:
-
3× DisplayPort 2.1b (8K@120Hz with DSC)
-
1× HDMI 2.1b (8K@60Hz, 4K@120Hz)
-
Included Accessories
-
VGA manual
-
Warranty documentation
-
Power adapter (16-pin to 3x 8-pin)
-
Anti-sag VGA holder
-
Holder manual
