Gigabyte GeForce RTX™ 5070 AERO OC 12GB

NVIDIA GeForce RTX 5070 Specifications

Core Specifications

• GPU Model: GeForce RTX™ 5070

• Core Clock:

  • Reference: 2512 MHz

  • Boost (OC Model): 2625 MHz (+113 MHz over reference)

• CUDA Cores: 6144 (Significant upgrade over RTX 4070's 5888 cores)

Memory Configuration

• Capacity: 12GB GDDR7

• Memory Speed: 28 Gbps

• Bus Width: 192-bit (Wider than RTX 4070's 192-bit but with faster GDDR7)

• Effective Bandwidth: ~672 GB/s (Calculated: 28 Gbps × 192-bit ÷ 8)

Interface & Power

• Bus Standard: PCIe 5.0 x16

• PSU Recommendation: 750W (Suggests ~220-250W TDP)

• Power Connector: 1x 16-pin (12V-2x6)

  • Included Adapter: 1x 12V-2x6 to 2x PCIe 8-pin

Display & Connectivity

• Max Resolution: 8K (7680×4320)

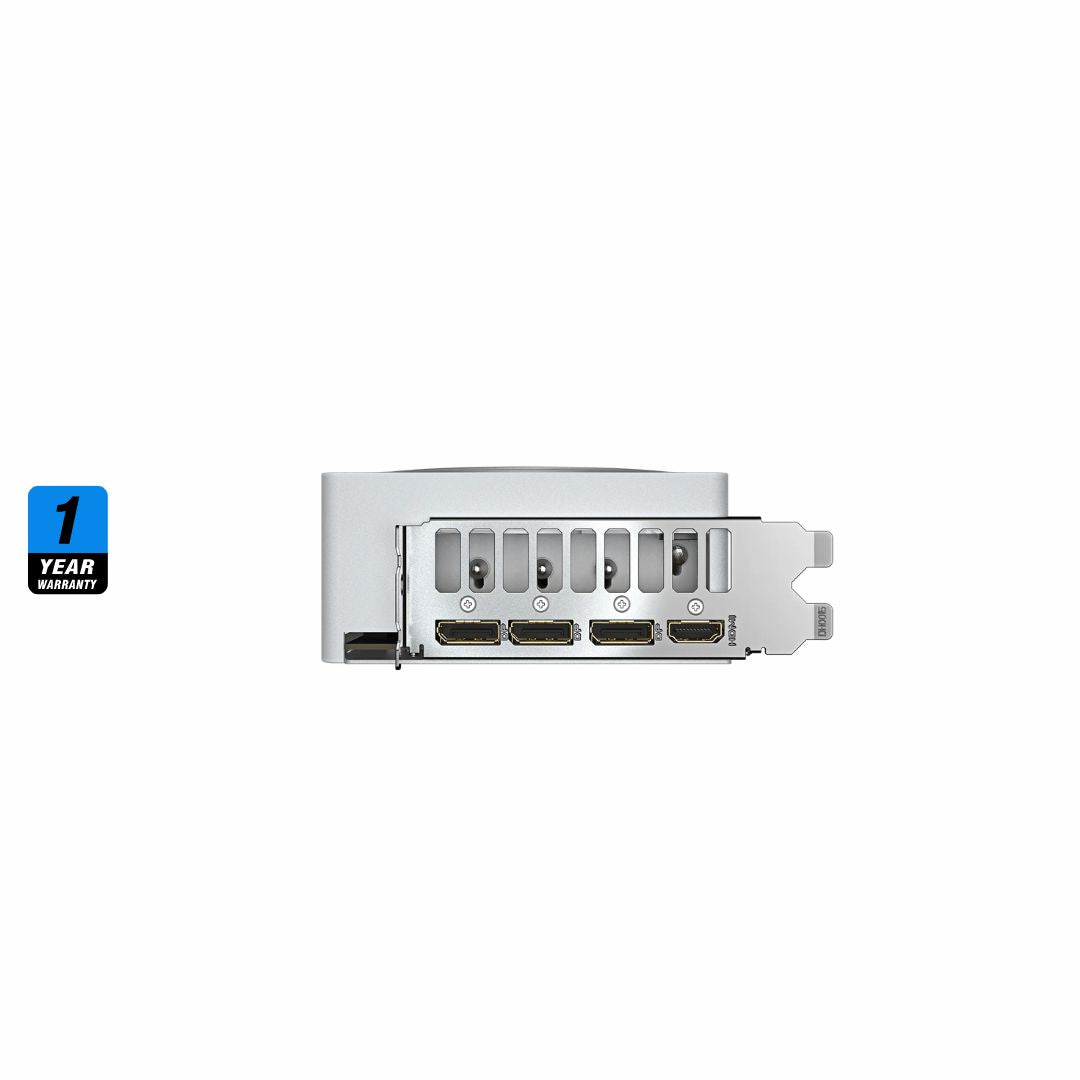

• Outputs:

  • 3× DisplayPort 2.1b (Supports 8K@120Hz with DSC)

  • 1× HDMI 2.1b (4K@144Hz, 8K@60Hz)

• Multi-Monitor: Supports 4 displays simultaneously

Physical Design

• Dimensions: 324mm (L) × 130mm (W) × 56mm (H)

  • Larger than RTX 4070 (324mm vs. ~240mm)

• Form Factor: ATX (May require full-tower cases)

Software & APIs

• DirectX: 12 Ultimate

• OpenGL: 4.6

Included Accessories

1. Quick Guide

2. Warranty Registration Card

3. 1x 12V-2x6 to 2x PCIe 8-pin Adapter

4. Versatile VGA Holder (GPU anti-sag bracket)

5. VGA Holder Manual
