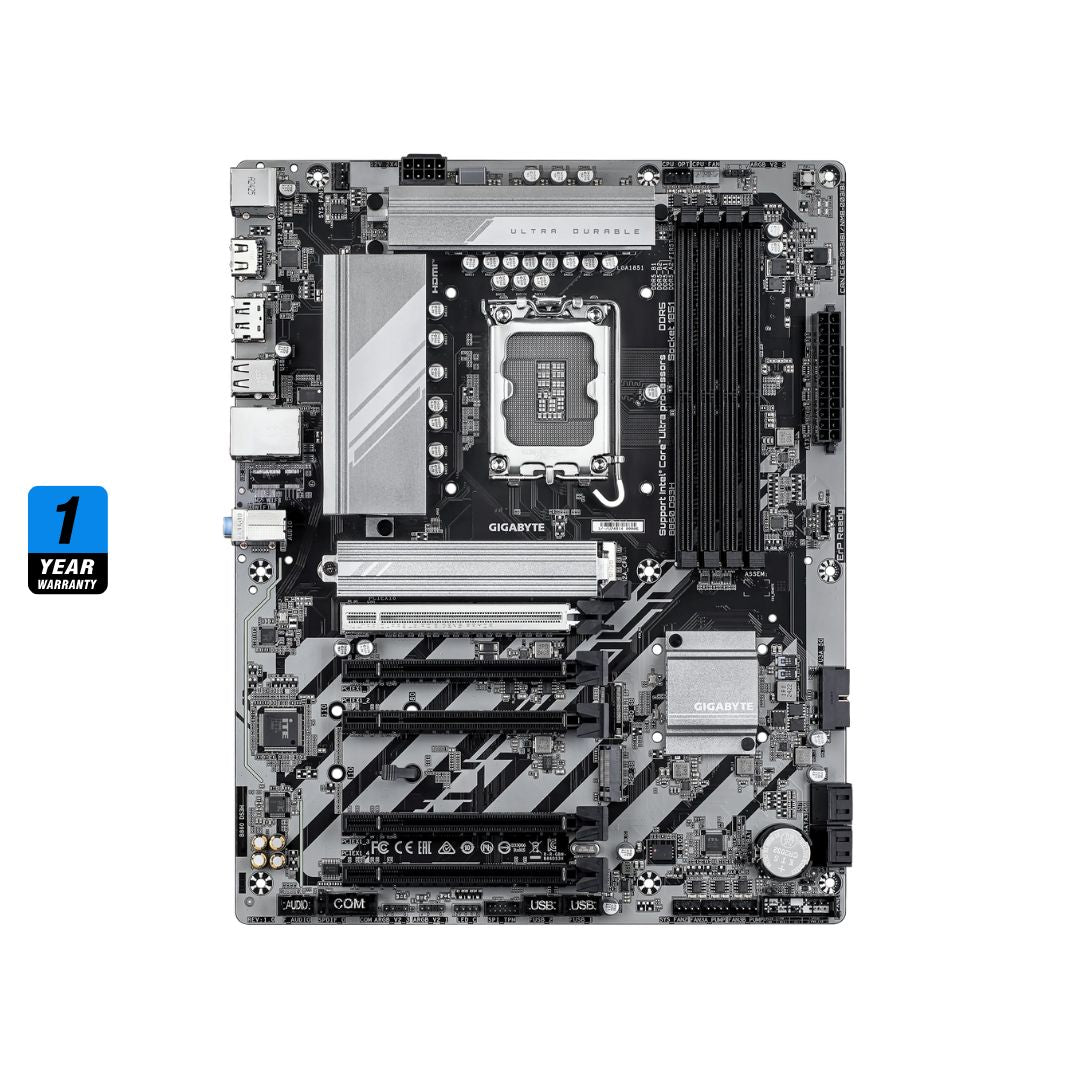

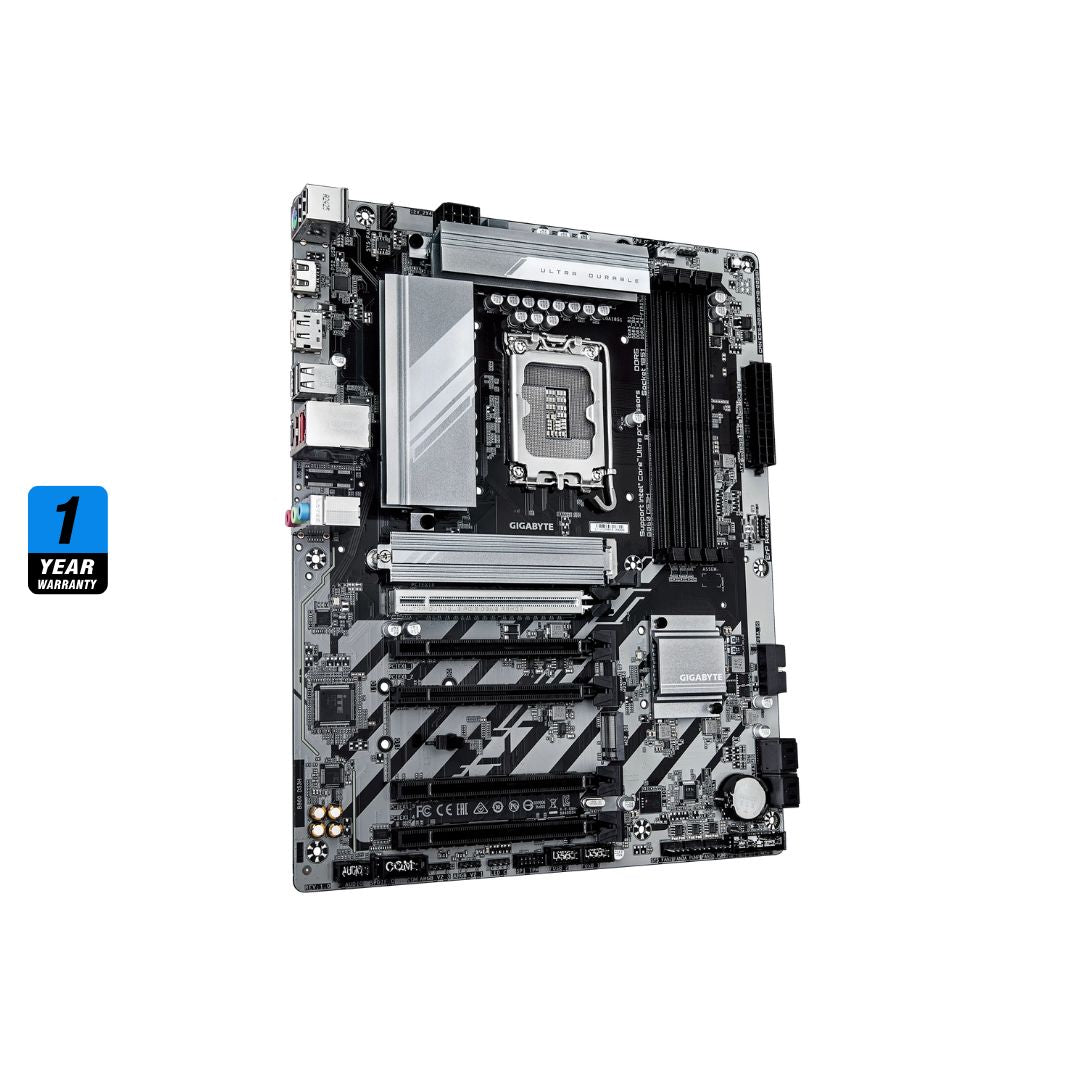

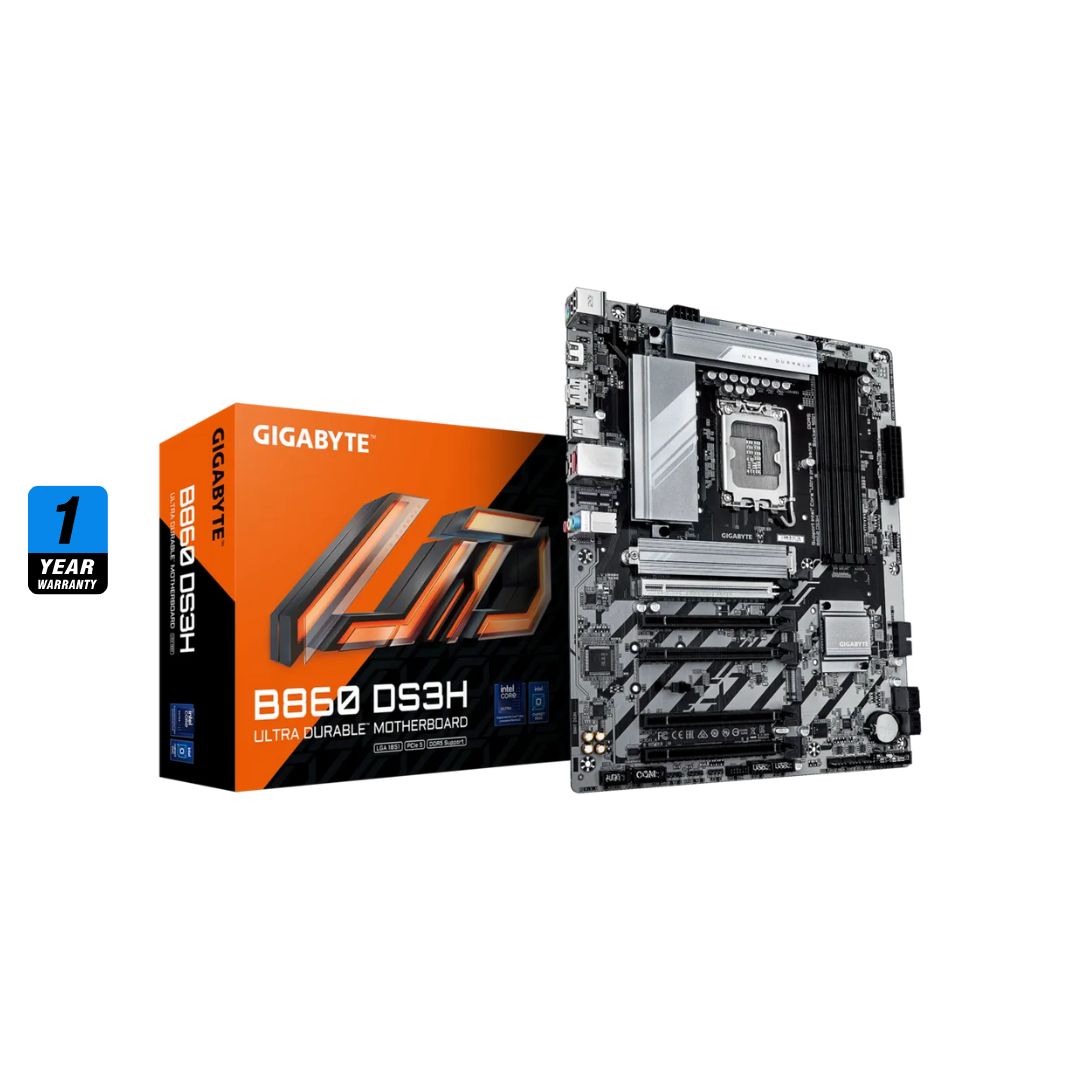

Gigabyte B860 DS3H , Motherboard
- Product SKU: 109574
Motherboard Specification
• Model: Gigabyte B860 DS3H
• Socket: Intel LGA 1851 – supports Intel® Core™ Ultra (Series 2) processors
• Chipset: Intel® B860 Express
• Form Factor: ATX
Power & Performance
• 8+1+2 Hybrid VRM design
• 6-layer PCB with Ultra Durable components
• D5 Bionic Corsa AI Overclocking (auto tuning for CPU & DDR5)
Memory Support
• 4 × DDR5 DIMM slots (up to 256GB)
• Speeds: up to DDR5-9066 MT/s (OC)
• Dual-channel architecture
• Supports ECC/non-ECC unbuffered DIMMs and XMP 3.0 profiles
Expansion Slots
• 1 × PCIe 5.0 x16 slot (CPU)
• 4 × PCIe 4.0 x1 slots (chipset)
Storage Interface
• 2 × M.2 slots:
– 1 × PCIe 5.0 x4 (CPU)
– 1 × PCIe 4.0 x4 (chipset)
• 4 × SATA 6Gb/s ports
• Supports RAID 0, 1, 5, 10
Networking
• Realtek 2.5GbE LAN
USB Ports

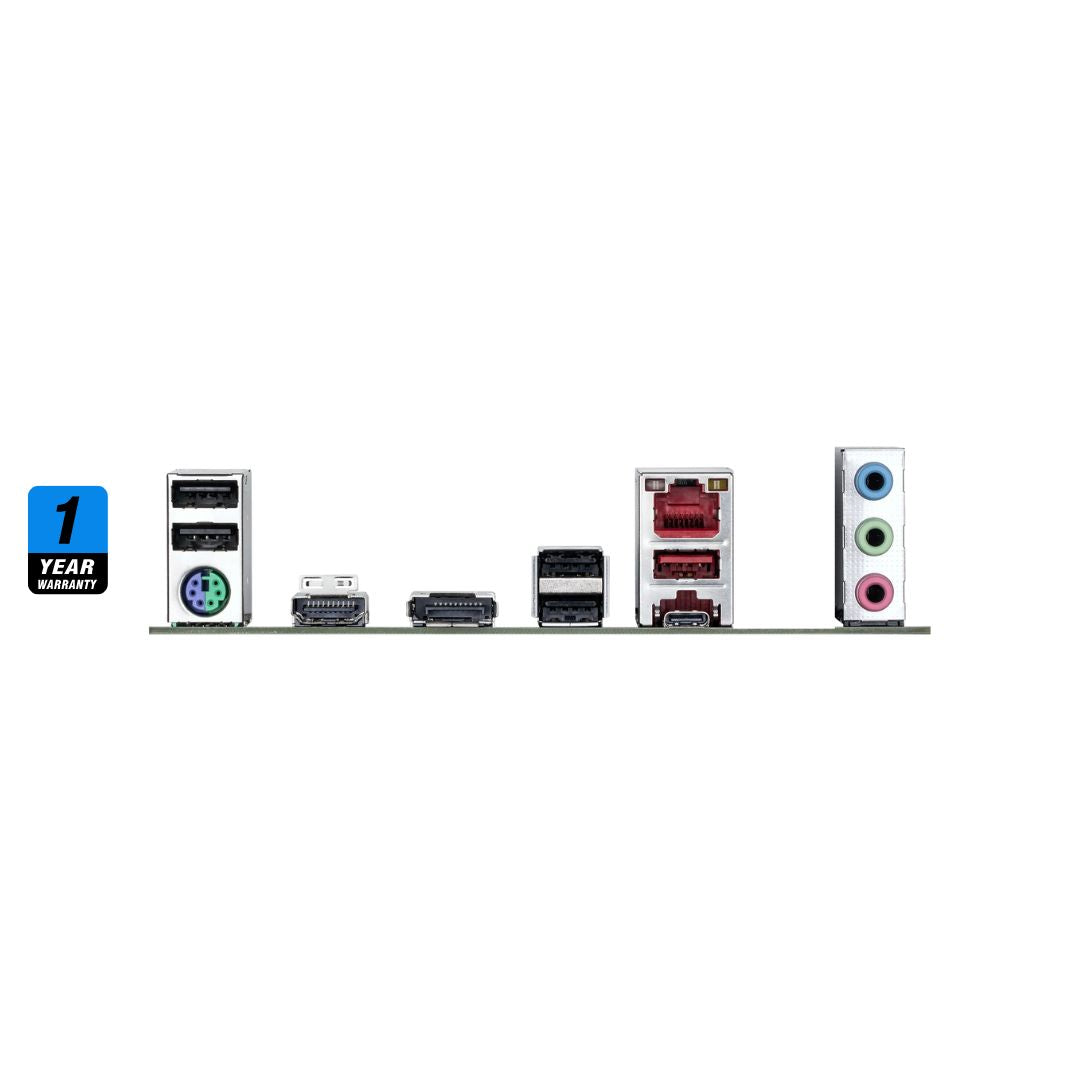

• Rear I/O:
– 1 × USB 3.2 Gen 2x2 Type-C
– 1 × USB 3.2 Gen 2 Type-A
– 4 × USB 2.0
• Internal Headers:
– USB 3.2 Gen 1 Type-C
– USB 3.2 Gen 1 & USB 2.0 headers
Display Outputs
• 1 × HDMI 2.1 (4096×2160 @60Hz)
• 1 × DisplayPort 2.1 (3840×2160 @144Hz)
Audio
• Realtek HD Audio codec
• 2/4/5.1/7.1-channel support
• S/PDIF Out
Cooling & DIY Features
• EZ-Latch PCIe slot
• Q-Flash BIOS update utility
• Smart Fan 6 with multiple temperature sensors
