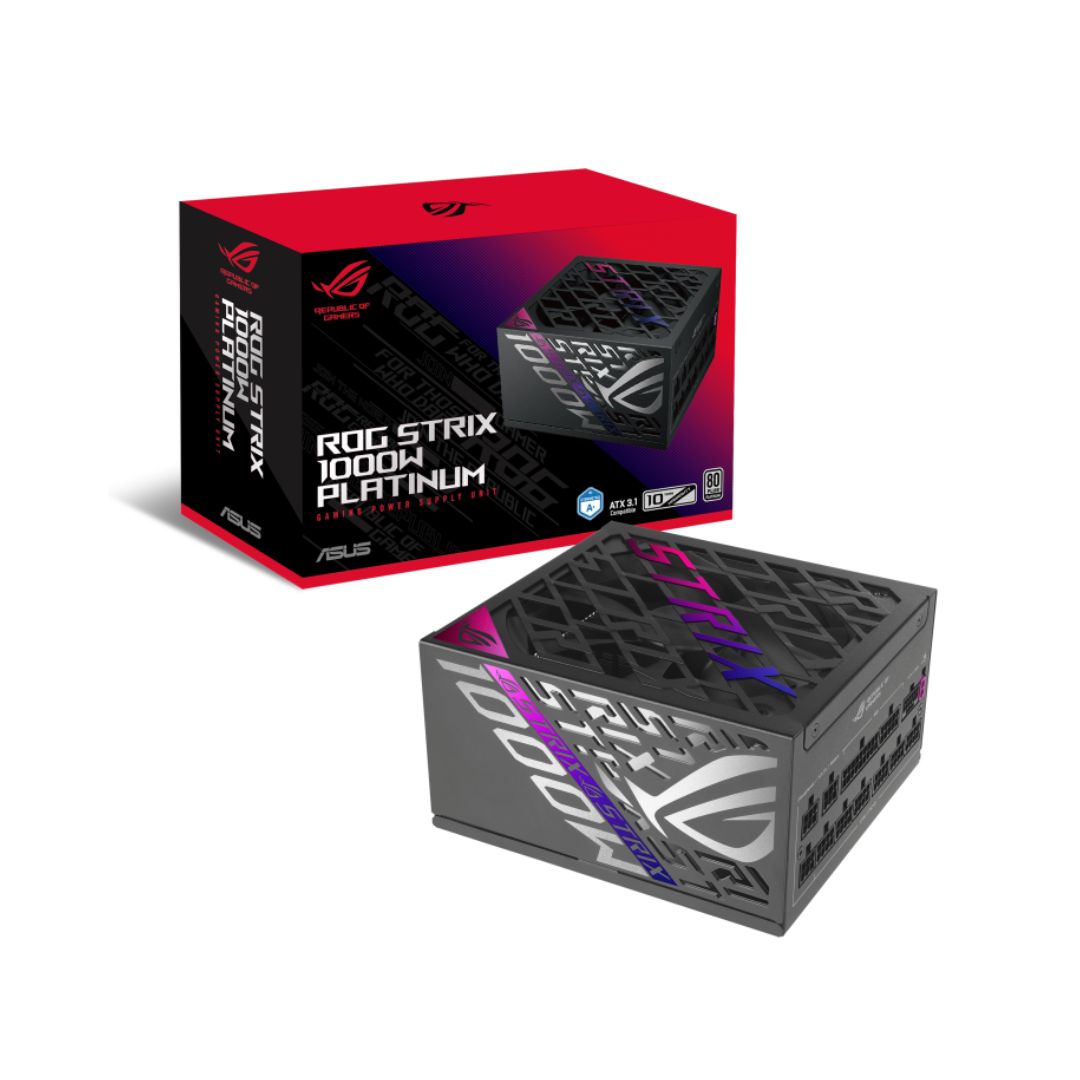

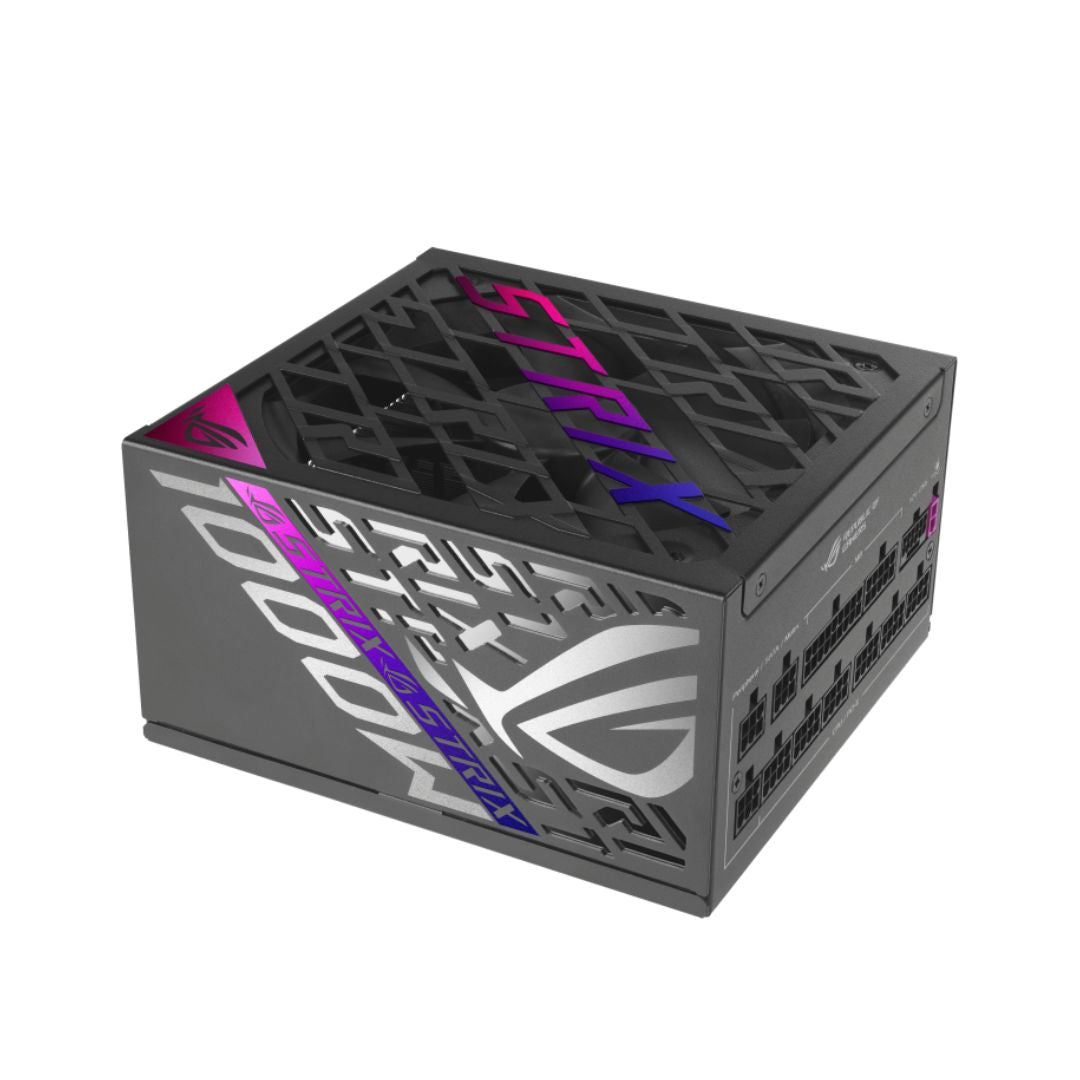

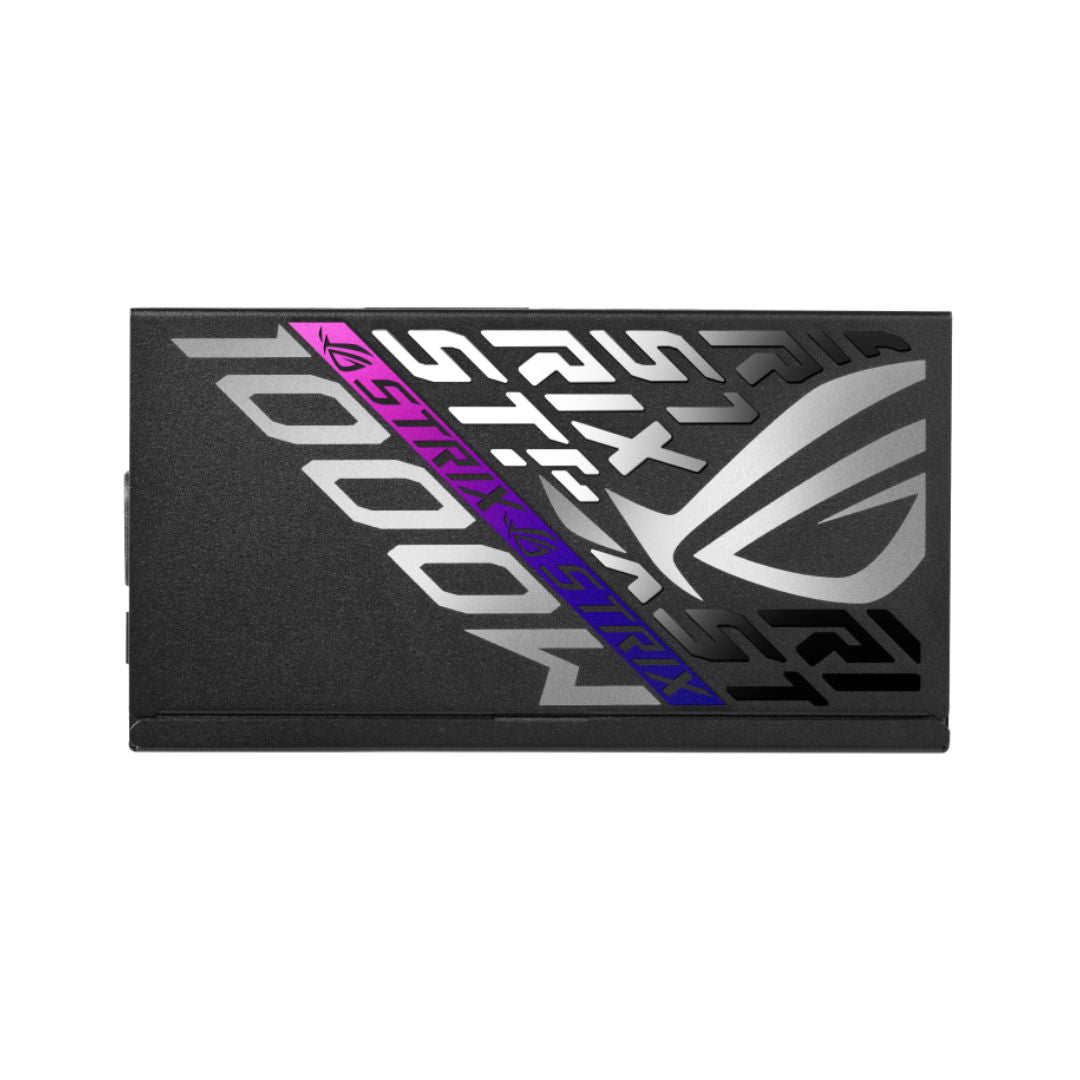

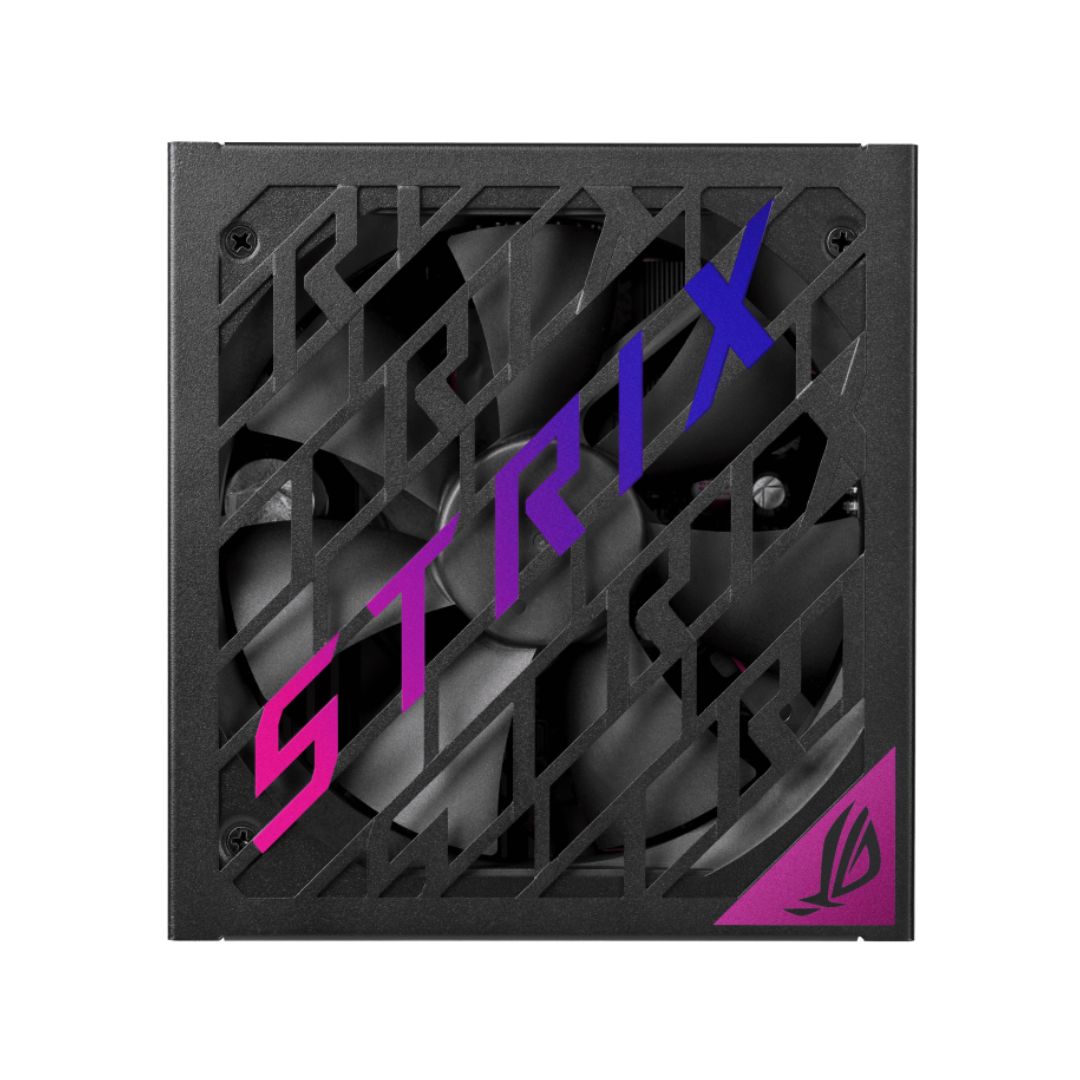

ASUS ROG STRIX GAMING 1000P, Full Modular, 1000W 80+ Platinum, PCIe 5.1
- Product SKU: 109115
Power Supply Specification
• Model :- ROG STRIX 1000W Platinum
• Form Factor :- ATX12V
• ATX Standard :- ATX 3.1
• PFC Type :- Active PFC
• Efficiency :- 80Plus Platinum
• MTBF :- >120,000 hrs @ 25°C
• Protection Features :- OPP, OVP, UVP, SCP, OCP, OTP
• AC Input Range :- 100-240Vac
• DC Output Voltage :- +3.3V, +5V, +12V, -12V, +5Vsb
• Maximum Load :- 25A / 25A / 83.3A / 0.3A / 3A
• Combined Load :- 130W / 130W / 1000W / 3.6W / 15W
• Total Output :- 1000W
• Dimensions :- 160 x 150 x 86 mm
• Cable Connectors :-
• MB 24/20-pin x1
• CPU 4+4-pin x2
• PCI-E 16-pin x1
• PCI-E 6+2-pin x4
• SATA x6
• Peripheral x3
• Accessories :-
• Power Cord x1
• Motherboard Power Cable x1 (610mm)
• CPU Cable x2 (1000mm)
• PCI-E Gen 5.1 16-pin Cable x1 (750mm)
• PCI-E 8-pin Cable x4 (750mm)
• SATA 1-to-3 Cable x2 (400+120+120mm)
• Peripheral 1-to-3 Cable x1 (400+150+150mm)
• ROG Strix DIY Sticker x1
• User Manual x1
• Weight :- 1.81 kg
• Cybenetics Noise Level Certification :- A+
• 0dB Technology :- Supported (Fan shuts off under low load)

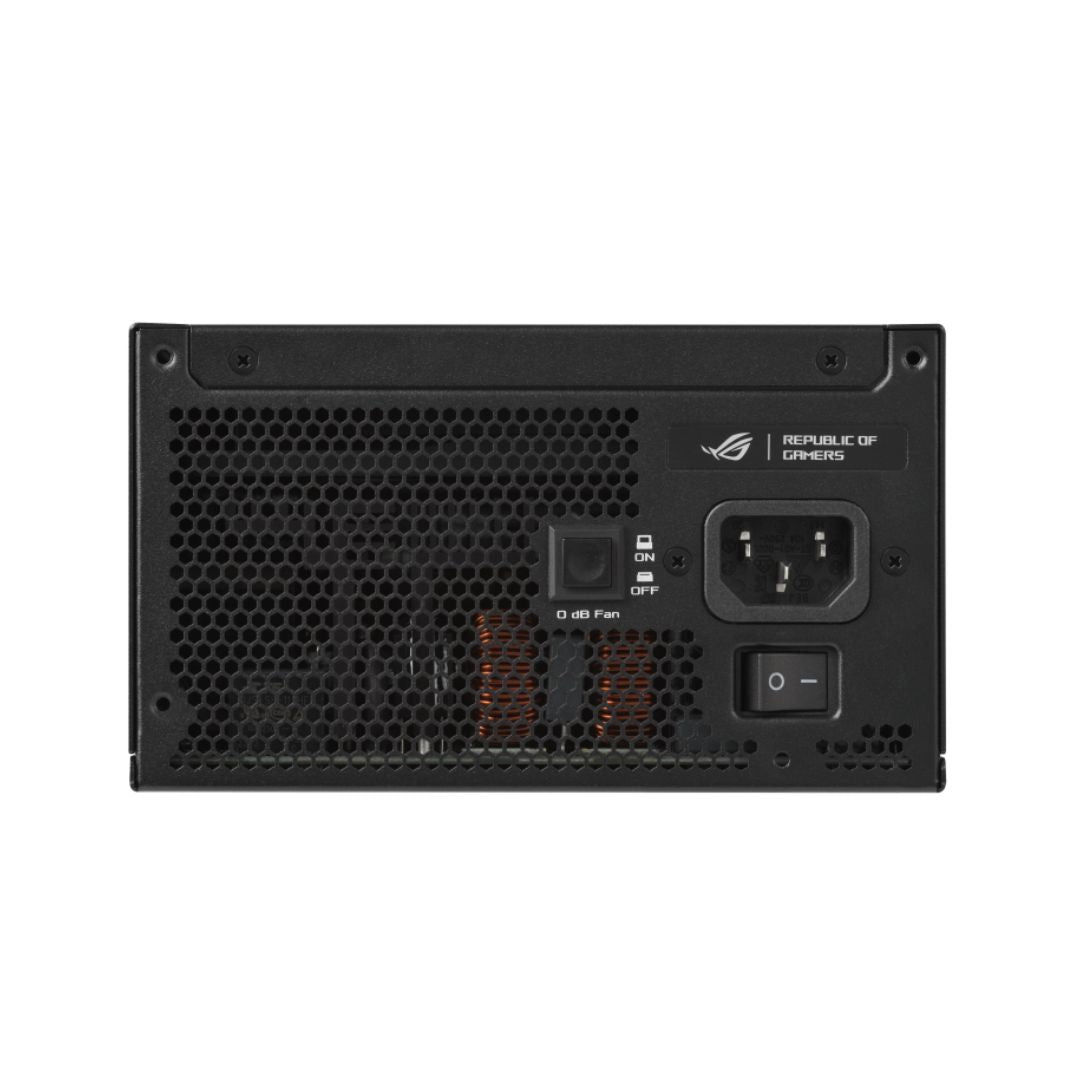

• 0dB Fan Button :- Yes (Toggle between semi-passive and always-on fan mode)
Power Supply Specification
• Model :- ROG STRIX 1000W Platinum
• Form Factor :- ATX12V
• ATX Standard :- ATX 3.1
• PFC Type :- Active PFC
• Efficiency :- 80Plus Platinum
• MTBF :- >120,000 hrs @ 25°C
• Protection Features :- OPP, OVP, UVP, SCP, OCP, OTP
• AC Input Range :- 100-240Vac
• DC Output Voltage :- +3.3V, +5V, +12V, -12V, +5Vsb
• Maximum Load :- 25A / 25A / 83.3A / 0.3A / 3A
• Combined Load :- 130W / 130W / 1000W / 3.6W / 15W
• Total Output :- 1000W
• Dimensions :- 160 x 150 x 86 mm
• Cable Connectors :-
• MB 24/20-pin x1
• CPU 4+4-pin x2
• PCI-E 16-pin x1
• PCI-E 6+2-pin x4
• SATA x6
• Peripheral x3
• Accessories :-
• Power Cord x1
• Motherboard Power Cable x1 (610mm)
• CPU Cable x2 (1000mm)
• PCI-E Gen 5.1 16-pin Cable x1 (750mm)
• PCI-E 8-pin Cable x4 (750mm)
• SATA 1-to-3 Cable x2 (400+120+120mm)
• Peripheral 1-to-3 Cable x1 (400+150+150mm)
• ROG Strix DIY Sticker x1
• User Manual x1
• Weight :- 1.81 kg
• Cybenetics Noise Level Certification :- A+
• 0dB Technology :- Supported (Fan shuts off under low load)
• 0dB Fan Button :- Yes (Toggle between semi-passive and always-on fan mode)
