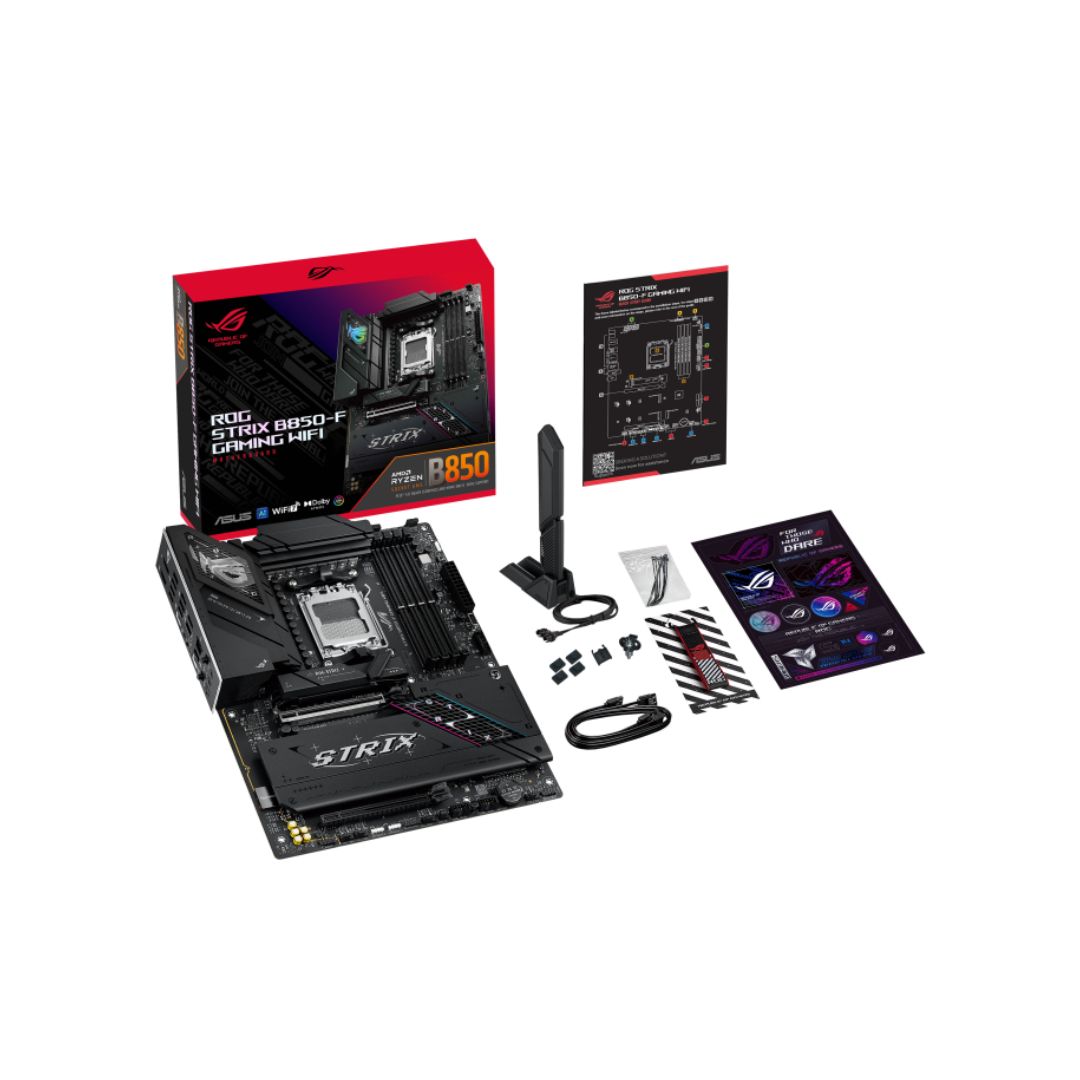

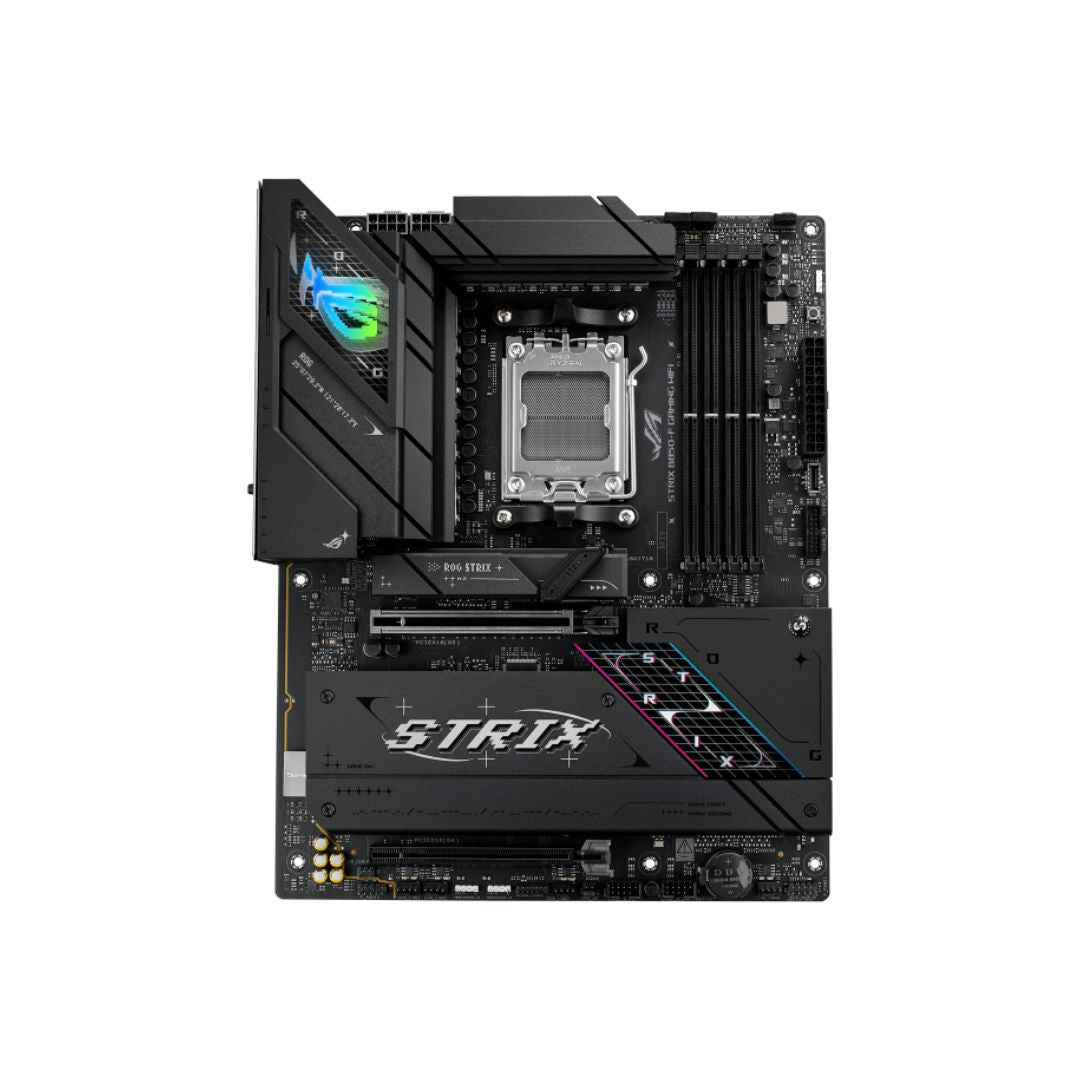

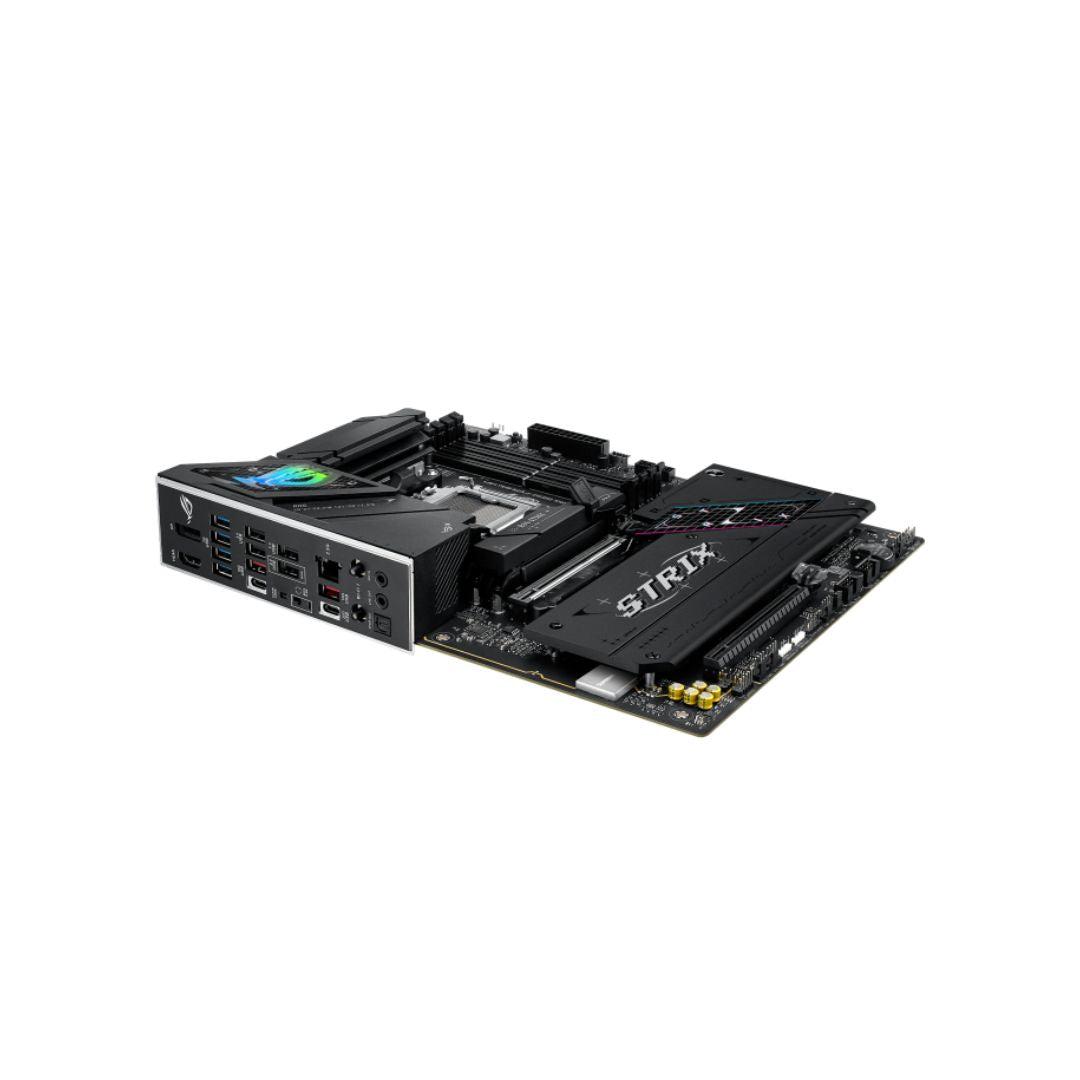

ASUS ROG STRIX B850-F GAMING WIFI , Motherboard
Motherboard Specification
• Model: ASUS ROG STRIX B850-F GAMING WIFI
• Socket: AMD AM5 – supports Ryzen™ 9000 / 8000 / 7000 Series processors
• Chipset: AMD B850
• Form Factor: ATX
Power & Performance
• 16+2+2 power stages rated at 80A each
• Dual ProCool connectors, optimized VRM cooling
• AI Overclocking, PBO Enhancement, Curve Optimizer support
• AI Cache Boost for up to 29% faster LLM performance
Memory Support
• 4 × DDR5 DIMM slots (up to 256GB)
• Speeds: up to DDR5-8000+ MT/s (OC)
• Dual-channel architecture
• Supports AMD EXPO™ & ASUS AEMP profiles
Expansion Slots
• 1 × PCIe 5.0 x16 SafeSlot (CPU)
• 1 × PCIe 4.0 x16 (x4 mode, chipset)
Storage Interface
• 4 × M.2 slots:
– 2 × PCIe 5.0 x4 (2280/22110)
– 2 × PCIe 4.0 x4 (2280)
• 2 × SATA 6Gb/s ports
Networking
• Intel i226-V 2.5Gb Ethernet
• MediaTek MT7925B22M Wi-Fi 7
• Bluetooth 5.4
USB Ports

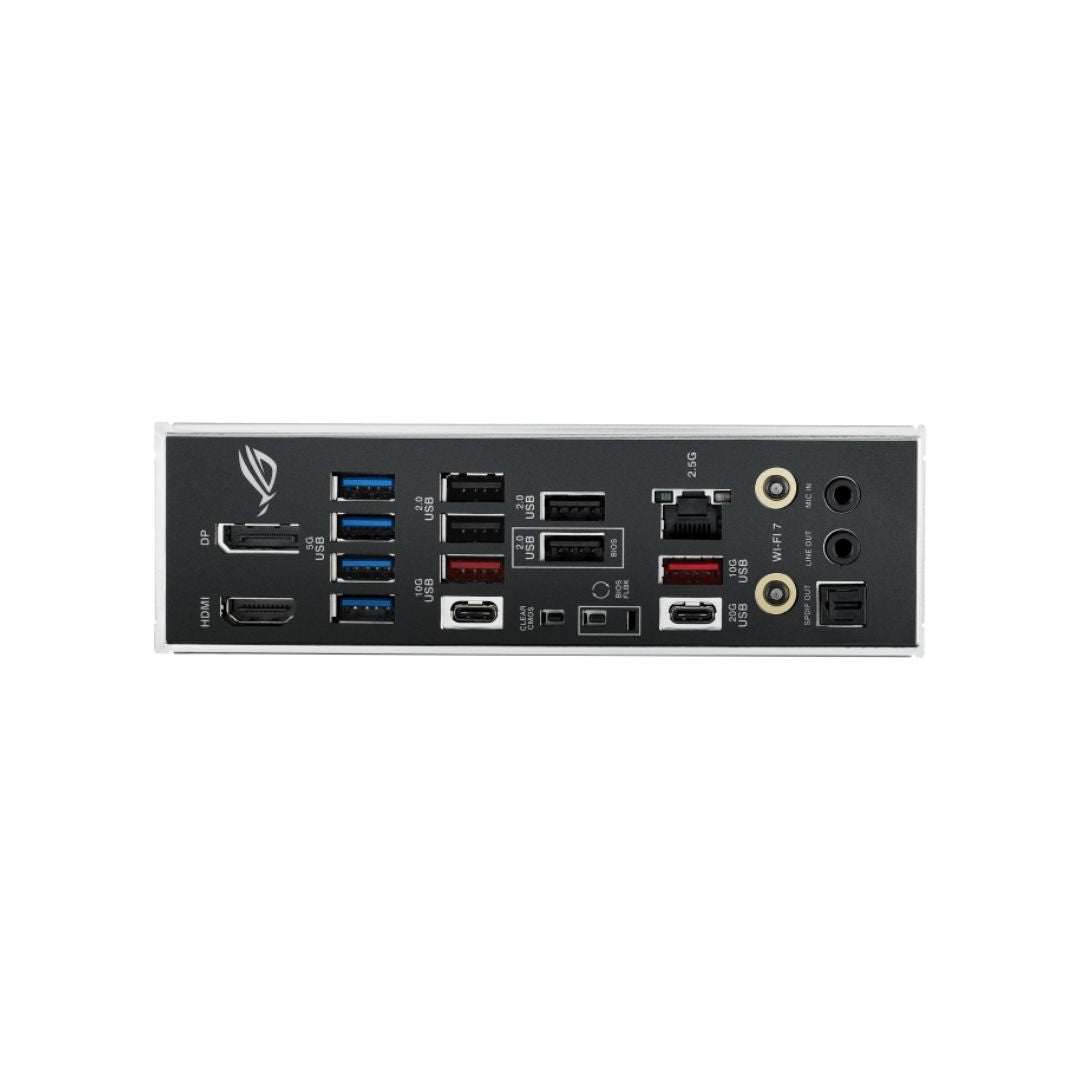

• Rear I/O:
– 1 × USB 3.2 Gen 2x2 Type-C (20Gbps)
– 1 × USB 3.2 Gen 2 Type-C (10Gbps)
– 2 × USB 3.2 Gen 2 Type-A (10Gbps)
– 4 × USB 3.0 Type-A
– 4 × USB 2.0 Type-A
• Front I/O:
– USB 3.2 Gen 2 Type-C
– USB 3.2 Gen 1 & USB 2.0 headers
Display Outputs
• 1 × HDMI
• 1 × DisplayPort
Audio
• Realtek ALC4080 codec
• Optical S/PDIF Out
• 2 × Audio jacks
Cooling & DIY Features
• 7 × 4-pin fan headers, 1 × 2-pin thermistor header
• M.2 Q-Latch, BIOS FlashBack™, Clear CMOS
• Q-LED diagnostic display
Customization & Software
• Aura Sync RGB lighting
• Gen 2 ARGB headers
• ASUS AI Advisor, AI Networking II
