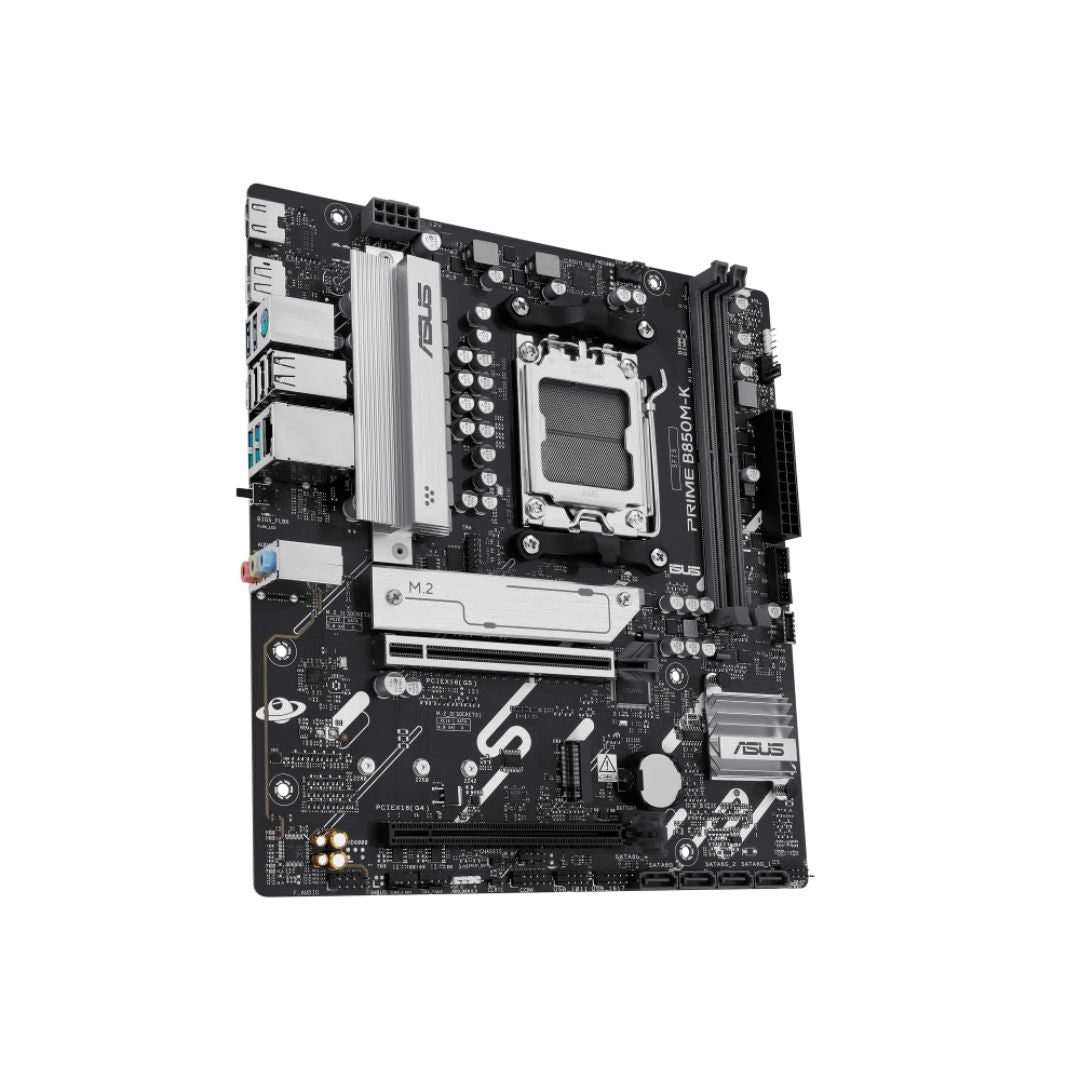

ASUS PRIME B850M-K , Motherboard

• Model: ASUS PRIME B850M-K – Micro-ATX Motherboard
• Chipset: AMD B850
• CPU Socket: AM5
• CPU Support: AMD Ryzen 9000 Series

• Memory
 • Type: DDR5
 • Capacity: Up to 96GB
 • Slots: 2 × DIMM
 • Speed: Up to 8400+ MT/s (OC)
 • ECC Support: Non-ECC, un-buffered

• Expansion Slots
 • 1 × PCIe 5.0 x16 (SafeSlot)
 • 1 × PCIe 4.0 x16 (x4 mode)

• Storage
 • 2 × M.2 Slots
  – M.2_1: PCIe 5.0 x4 (2280)
  – M.2_2: PCIe 4.0 x4 (2242/2260/2280)
 • 4 × SATA 6Gb/s

• Graphics Support
 • Integrated Graphics: Depends on CPU
 • Outputs: 1 × HDMI, 1 × DisplayPort

• Audio
 • Codec: Realtek ALC897
 • Channels: 7.1 HD Audio

• USB Ports

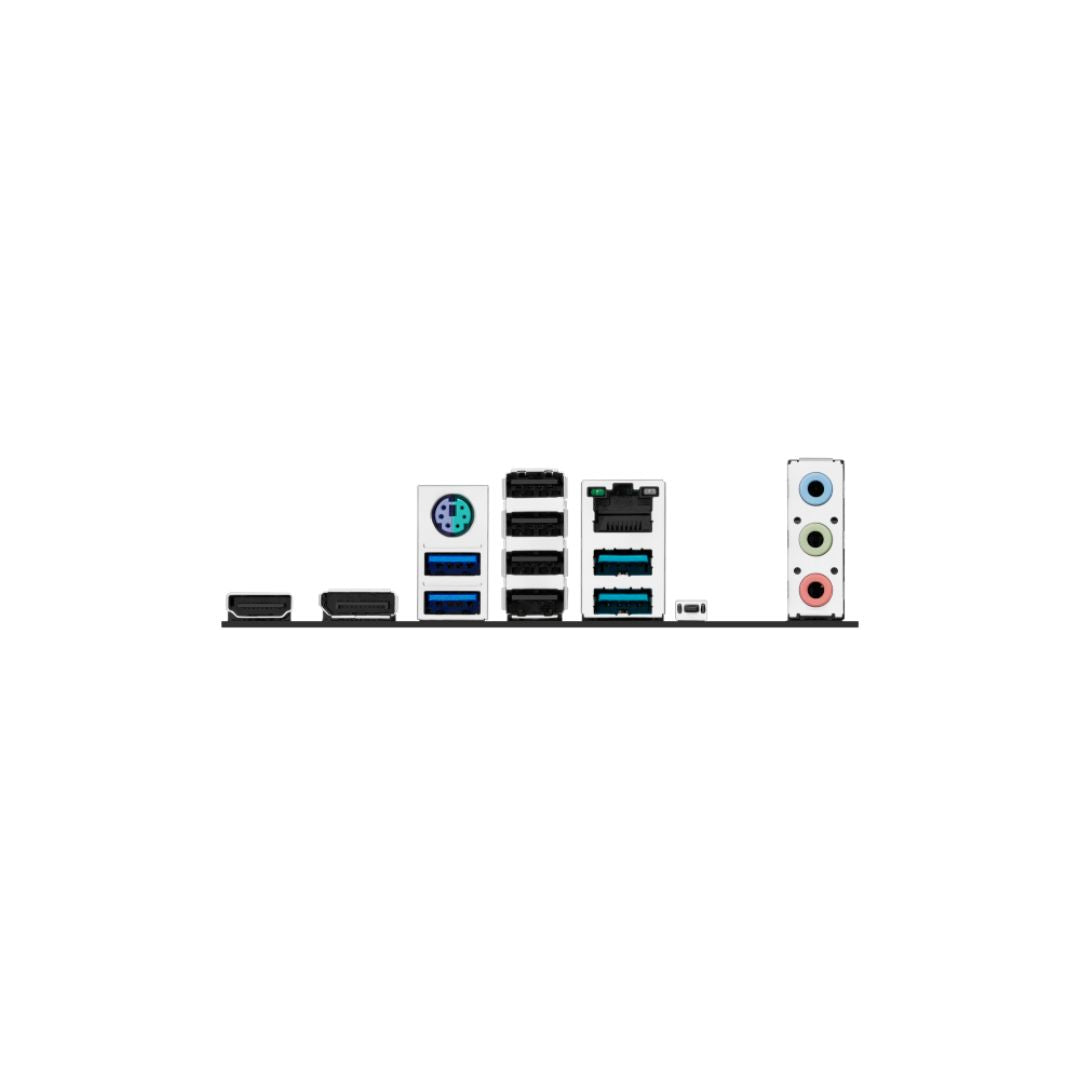

 • Rear I/O:
  – 2 × USB 3.2 Gen2 Type-A
  – 1 × USB 3.2 Gen2 Type-C
  – 4 × USB 2.0
 • Internal Headers:
  – USB 3.2 Gen1
  – USB 2.0

• LAN
 • Controller: Realtek RTL8125BG
 • Speed: 2.5Gb Ethernet

• Cooling & Power
 • VRM Design: 8+2+1 phase digital
 • Fan Headers: 4 × PWM/DC

• Features
 • ASUS AI Cache Boost
 • AEMP II
 • Armoury Crate
 • BIOS Flashback
 • M.2 heatsinks
 • 6-layer PCB

• Form Factor: Micro-ATX
• Dimensions: 244 × 244 mm
• OS Support: Windows 10 / 11 64-bit
