ASRock TRX40 Taichi Motherboard

• Model: ASRock TRX40 Taichi – ATX Motherboard
• Chipset: AMD TRX40
• CPU Socket: sTRX4
• CPU Support: AMD Ryzen Threadripper 3rd Gen

• Memory
 • Type: DDR4
 • Capacity: Up to 256GB
 • Slots: 8 × DIMM
 • Speed: Up to 4666+ MHz (OC)
 • ECC Support: ECC & non-ECC, un-buffered

• Expansion Slots
 • 4 × PCIe 4.0 x16
 • 1 × PCIe 4.0 x1

• Storage
 • 3 × Hyper M.2 (PCIe Gen4 x4)
 • 8 × SATA 6Gb/s
 **• 1 × U.2 Connector

• Graphics Support
 **• Multi-GPU: NVIDIA SLI, AMD CrossFireX

• Audio
 • Codec: Realtek ALC1220
 • Channels: 7.1 HD Audio
 • Amplifier: TI NE5532 Premium Headset Amplifier

• USB Ports

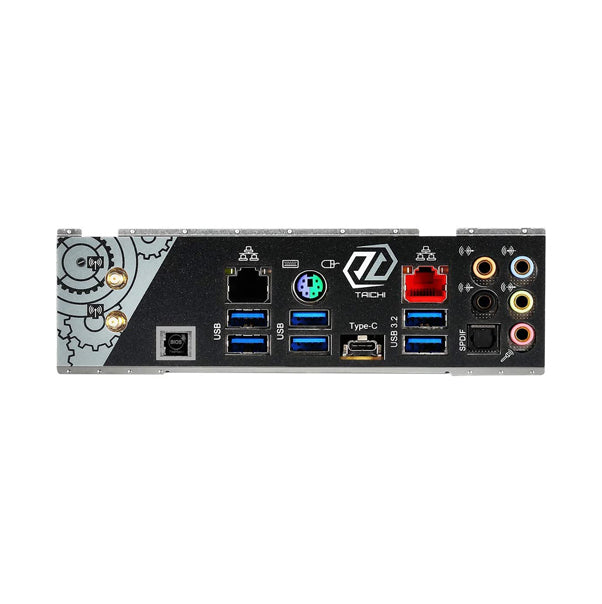

 • Rear I/O:
  – 2 × USB 3.2 Gen2 Type-A
  – 1 × USB 3.2 Gen2 Type-C
  – 6 × USB 3.2 Gen1
 • Internal Headers:
  – USB 3.2 Gen1
  – USB 2.0

• LAN
 • Controllers: Intel I211AT + Realtek RTL8125AG
 • Speed: Dual Gigabit + 2.5GbE

• Wireless
 • Wi-Fi 6 (802.11ax)
 • Bluetooth 5.0

• Cooling & Power
 • VRM Design: 16 Power Phase
 • Fan Headers: 8 × PWM/DC

• Features
 • Polychrome RGB
 • Dr. MOS
 • ASRock Steel Slot
 • BIOS Flashback
 • Hyper  BCLK Engine III

• Form Factor: ATX
• Dimensions: 305 × 244 mm
• OS Support: Windows 10 64-bit
