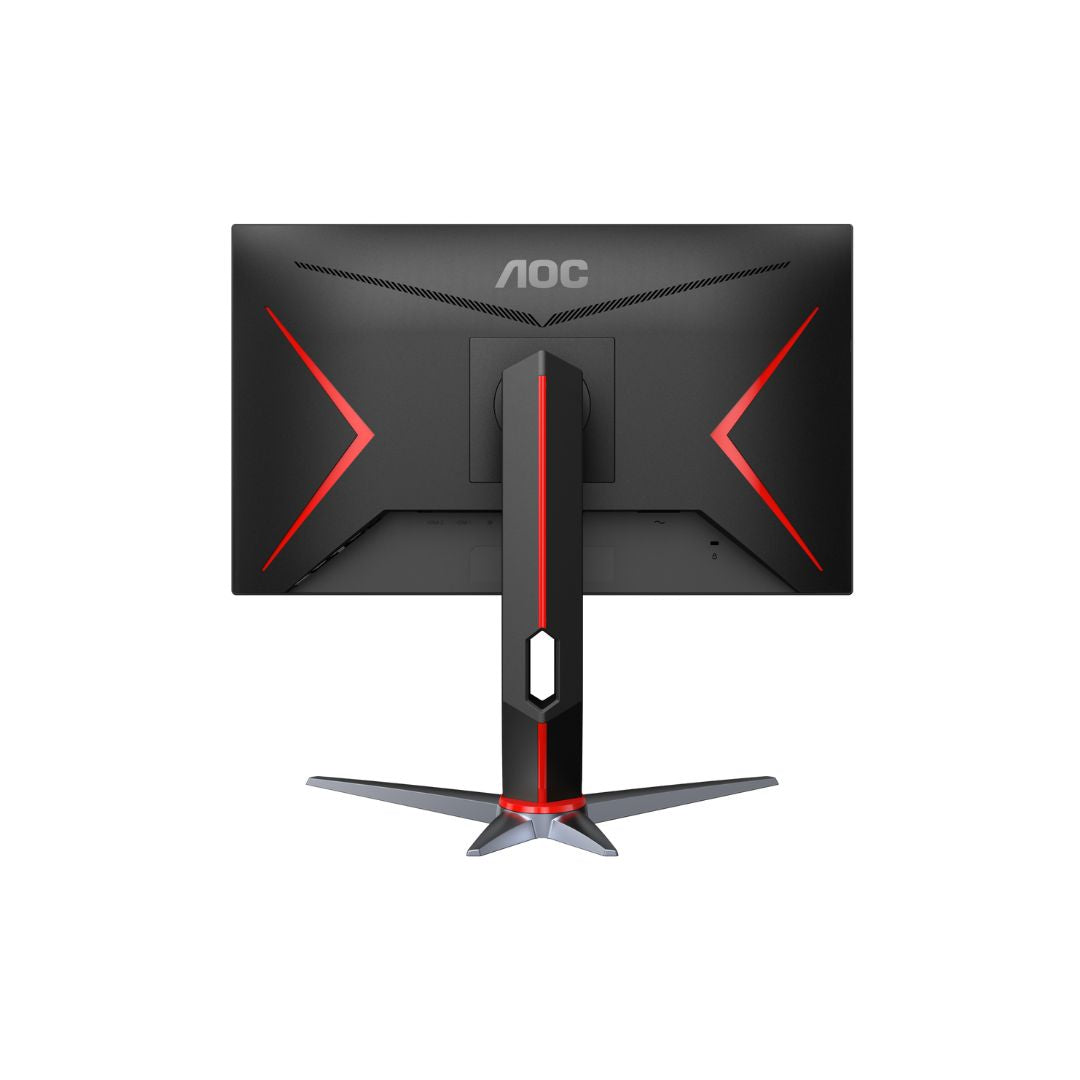

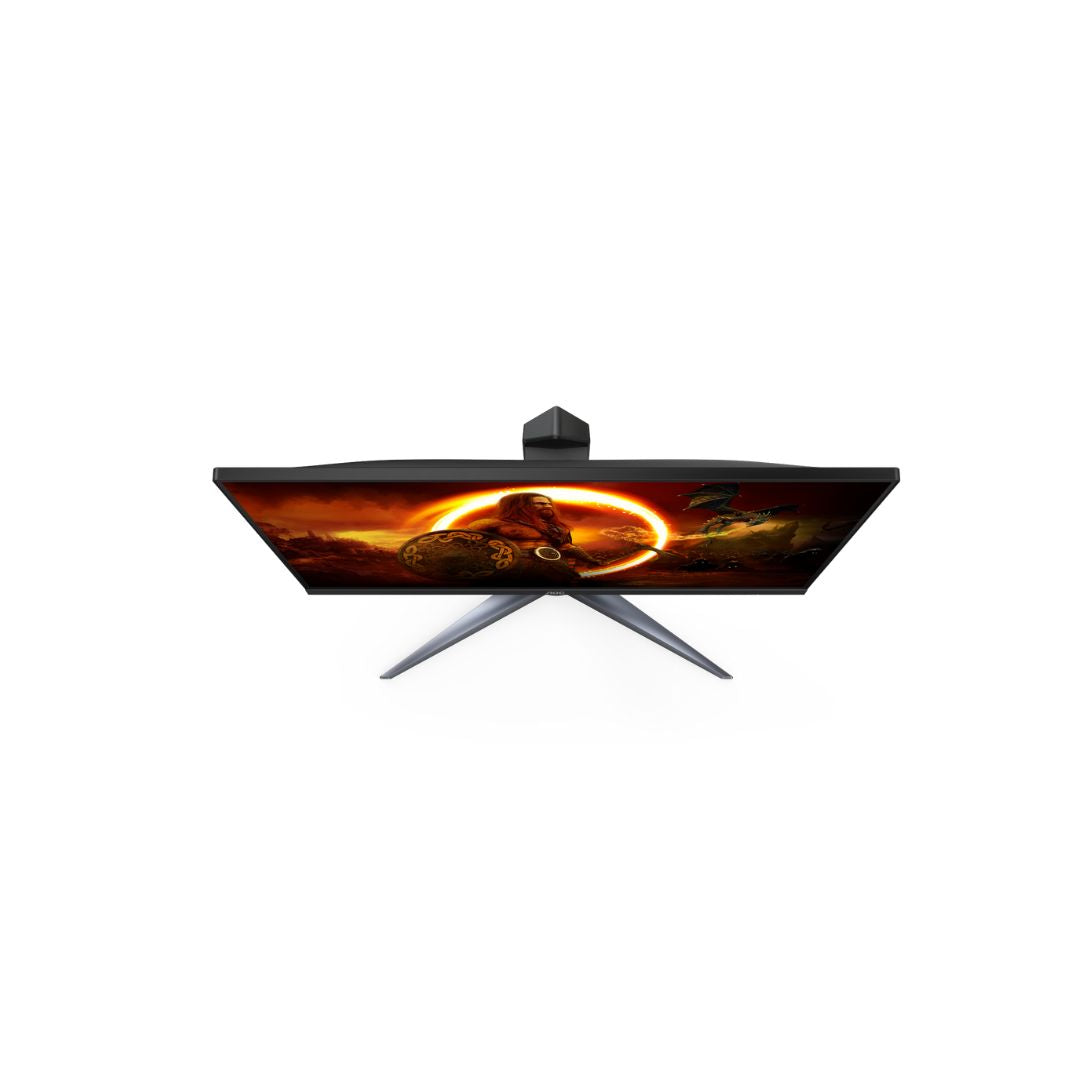

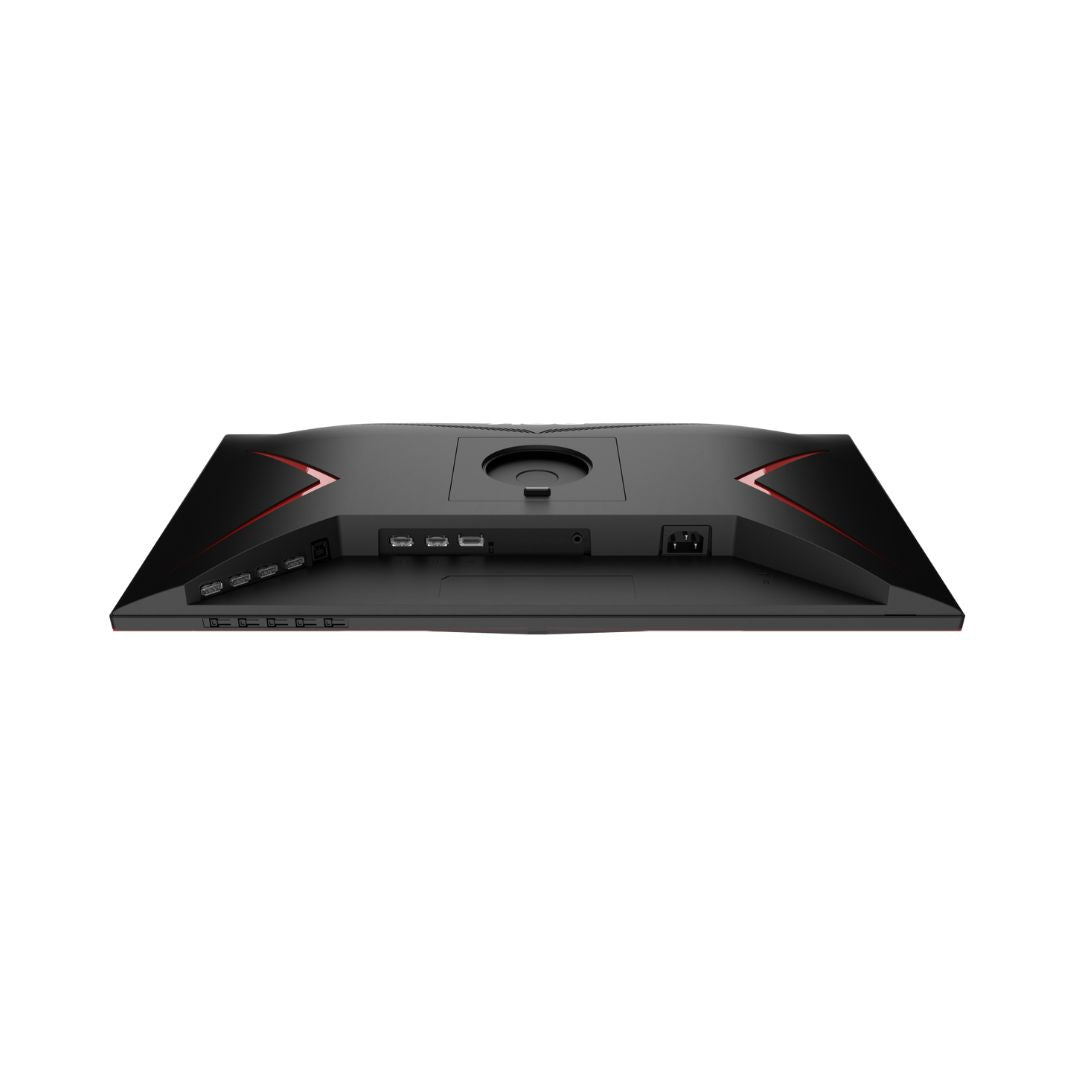

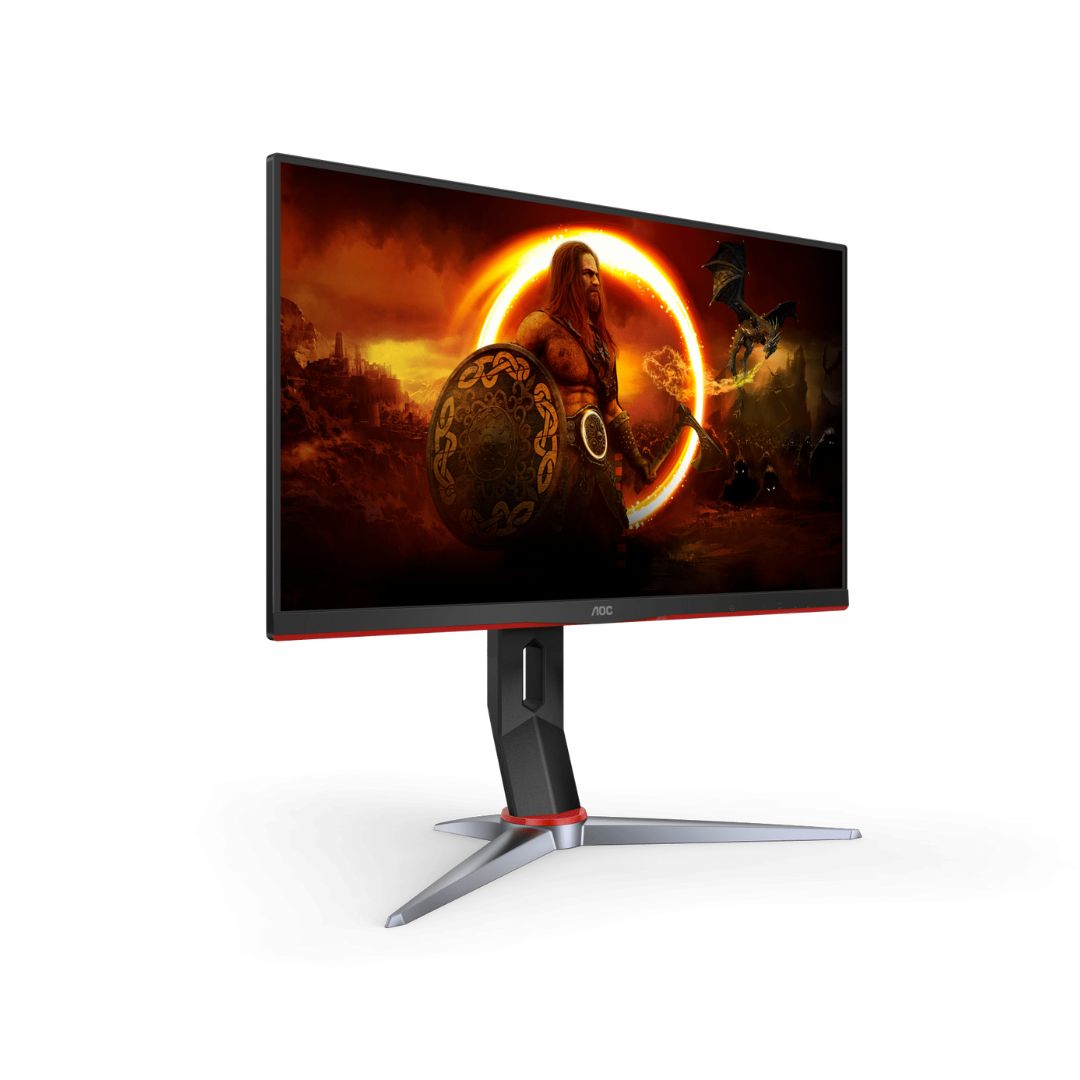

AOC 24G2Z 24 , FHD (1920x1080) 240Hz 0.5Ms IPS
-
Here are the specifications for the 24G2Z: -
Model Name: 24G2Z
-
Panel: 23.8" (IPS)
-
Pixel Pitch (mm): 0.2745 (H) x 0.2745 (V)
-
Effective Viewing Area (mm): 527.04 (H) x 296.46 (V)
-
Brightness (typical): 350 cd/m²
-
Contrast Ratio: 1000:1 (Typical), 80 Million:1 (DCR)
-
Response Time: 0.5ms (MPRT)
-
Viewing Angle: 178° (H) / 178° (V) (CR > 10)
-
Color Gamut: NTSC 94% (CIE1976), sRGB 109% (CIE1931), DCI-P3 86% (CIE1976)
-
Color Accuracy: Delta E < 2
-
Optimum Resolution: 1920 x 1080 @ 240Hz – DisplayPort, HDMI
-
Display Colors: 16.7 Million
-
Signal Input: HDMI 2.0 x 2, DisplayPort 1.2 x 1
-
HDCP Version: HDMI: 2.2, DisplayPort: 2.2
-
USB Hub: No
-
Power Supply: 100 - 240V ~ 1.5A, 50 / 60Hz
-
Power Consumption (typical): 25W
-
Speakers: No
-
Line in & Earphone: Earphone
-
Wall-Mount: 100mm x 100mm
-
Adjustable Stand: -
Height: 130mm
-
Pivot: 0°~90° ± 2°
-
Swivel: -30° ~30°
-
Tilt: -5° ~ 23°

-
-
Product without Stand (mm): 322 (H) x 539.2 (W) x 47 (D)
-
Product with Stand (mm): 383.4~503.8 (H) x 539.2 (W) x 227.4 (D)
-
Product without Stand (kg): 3.62
-
Product with Stand (kg): 5
-
Cabinet Color: Black & Red
-
Regulatory Approvals

-
