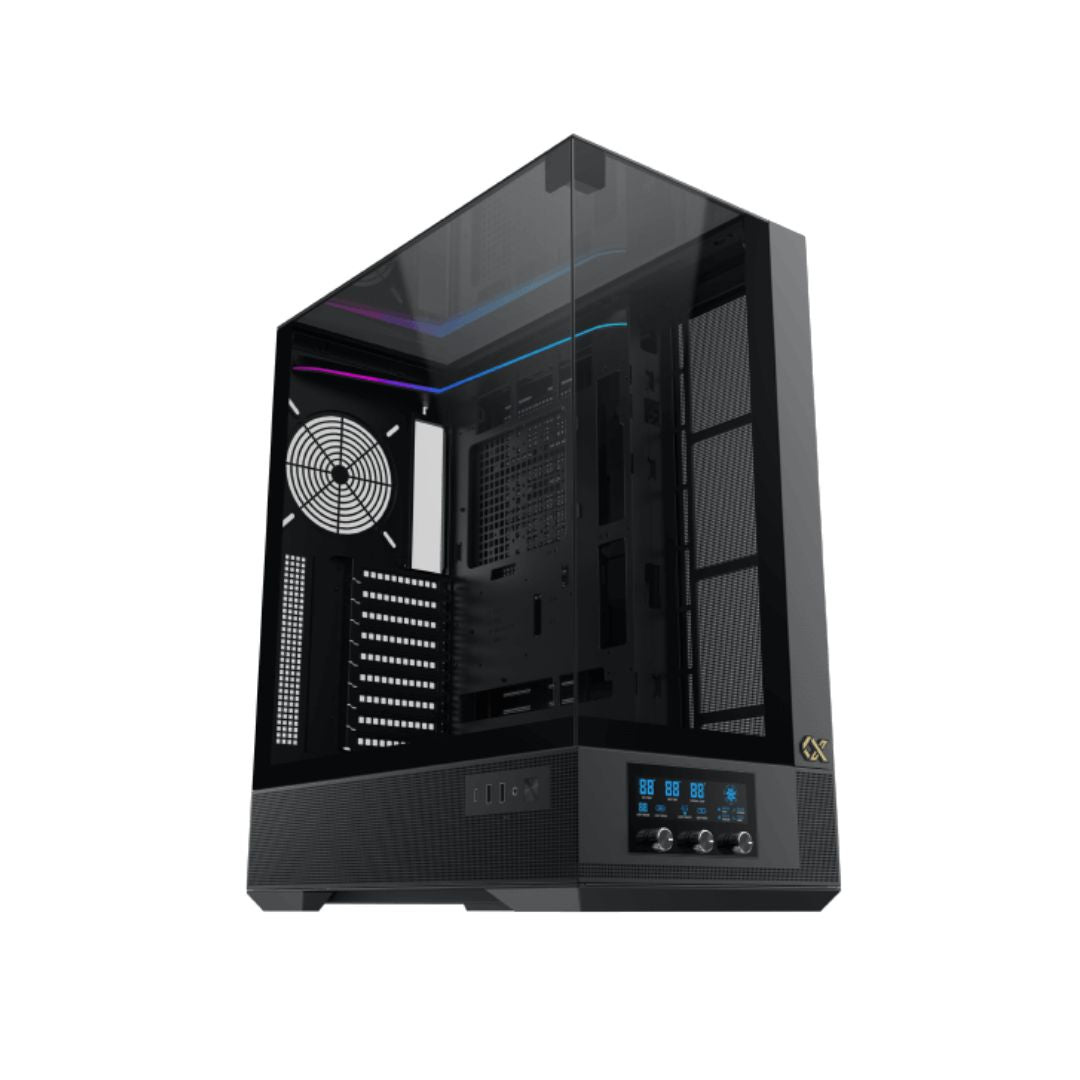

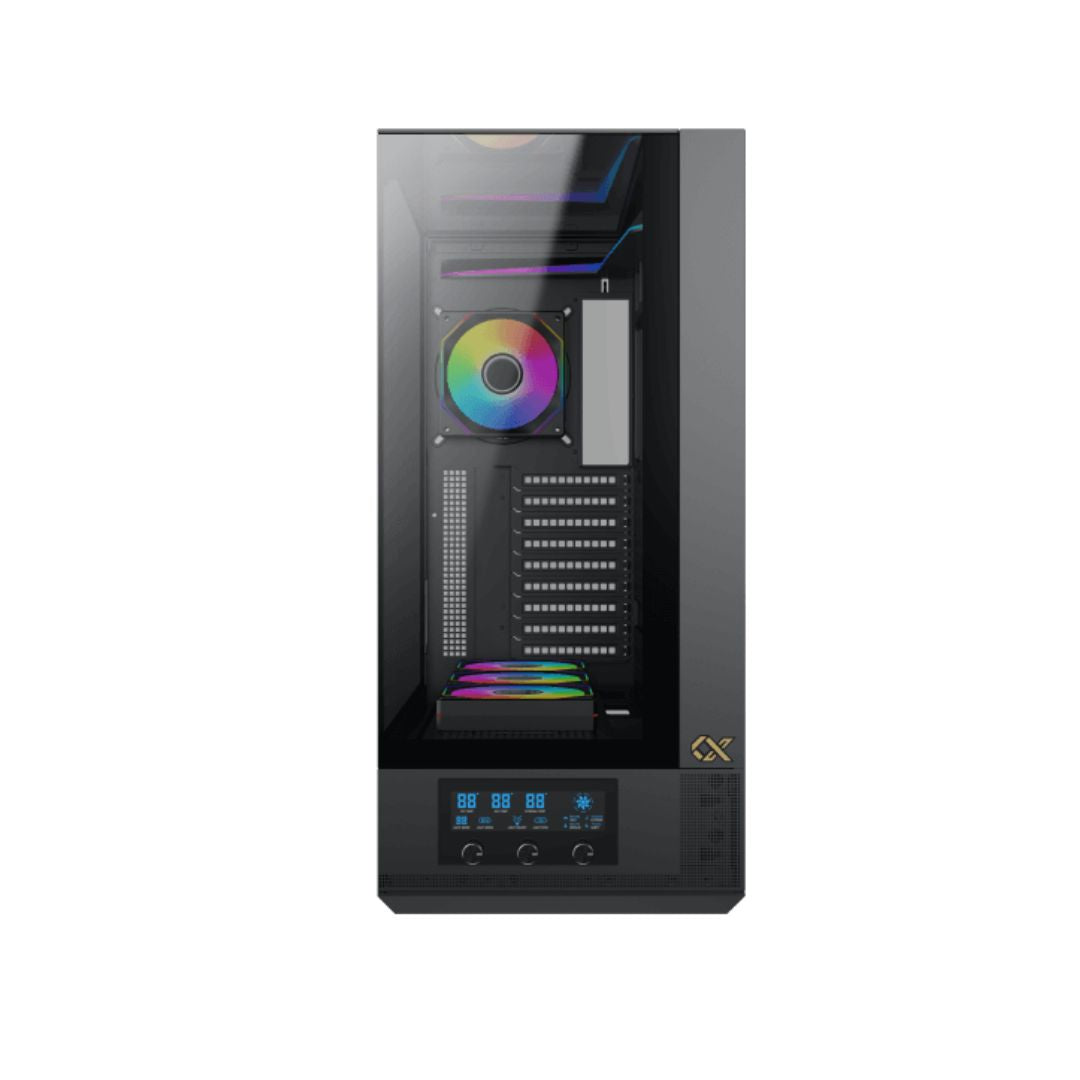

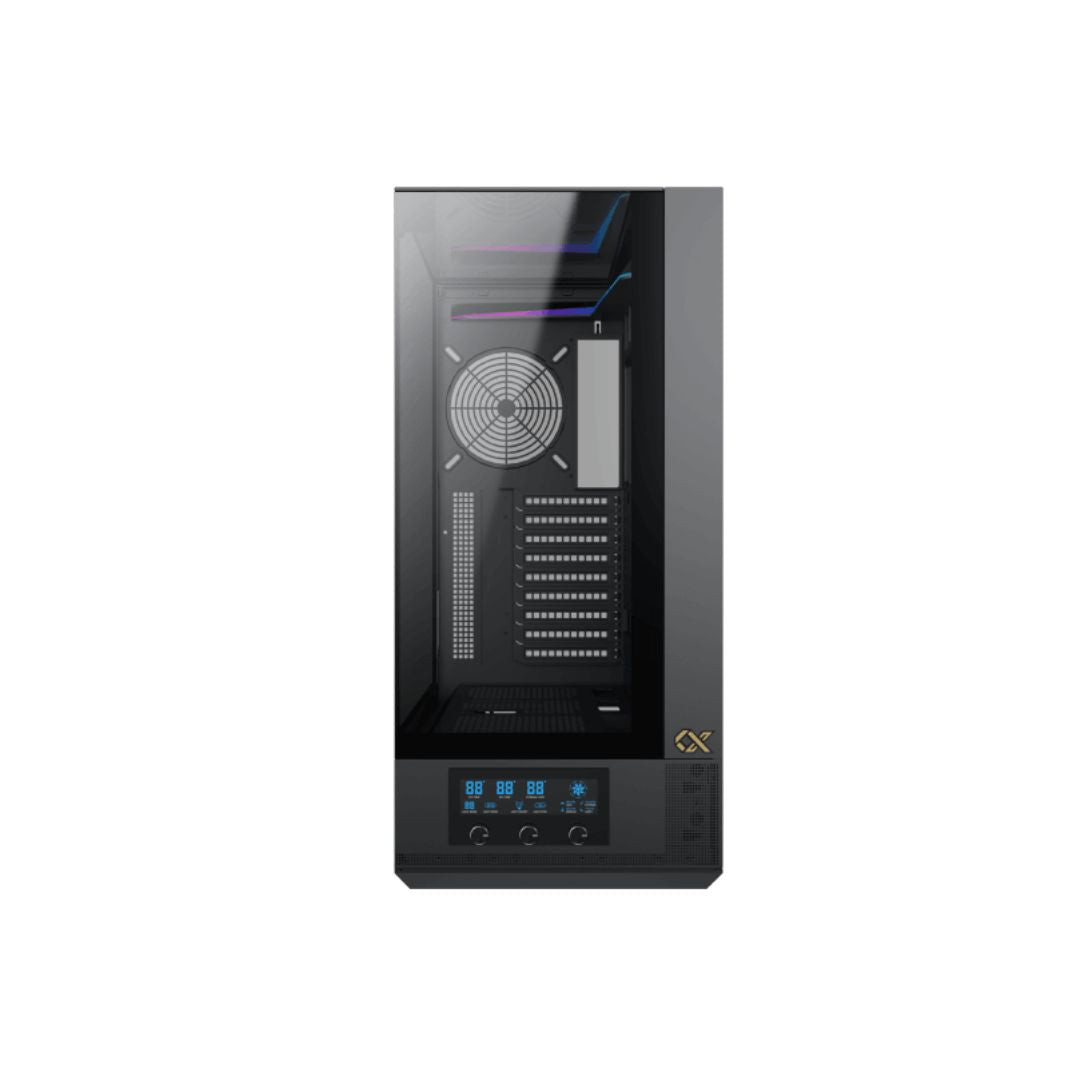

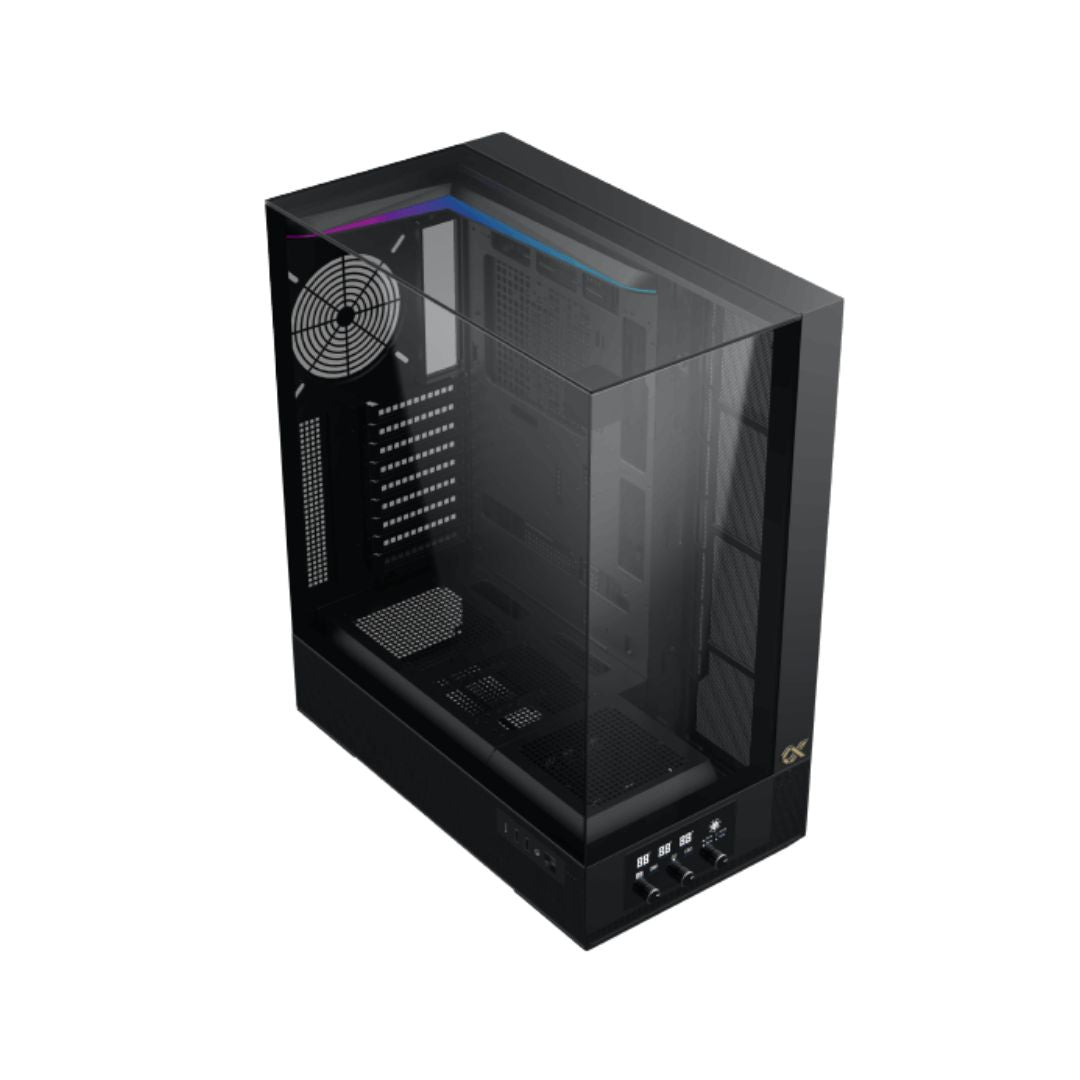

Product Name: Vision Pro
-
Dimensions: 450x258x533mm (LxWxH)
-
Fan Support:
-
MB: 120mm x4 or 140mm x3
-
PSU Shroud: 120mm x3
-
Rear: 120mm or 140mm x1
-
SSD/HDD Mounting Bracket: 120mm x1
-
-
Drive Bays:
-
SSD/HDD Mounting Bracket (Rear MB Panel): 3.5″ x1 or 2.5″ x2
-
SSD/HDD Mounting Flip Cover:
-
Option A: 3.5″ x3 or 3.5″ x3 & 2.5″ x1 or 3.5″ x2 & 2.5″ x2 (without 3.5″ HDD or 12cm Fan)
-
Option B: 3.5″ x2 or 3.5″ x1 & 2.5″ x1 (with 3.5″ HDD or 12cm Fan)
-
-
-
CPU Cooler Clearance: 180mm
-
Material: Steel
-
Expansion Slots: 9 Standard Slots (Support GPU Horizontal or Vertical Installation
-
Motherboard Support: EATX, ATX (Support Back Plug), Micro ATX, Mini ITX
-
Power Supply: Standard PS2 ATX PSU
-
Radiator Support:
-
MB: 240/280/360/420/480 (EATX MB Width ≤ 290mm)
-
-
I/O Panel:
-
USB 3.0 x2
-
Type C
-
HD Audio
-
-
PSU Length Limitation: 220mm
-
GPU Length Limitation: 420mm
-
