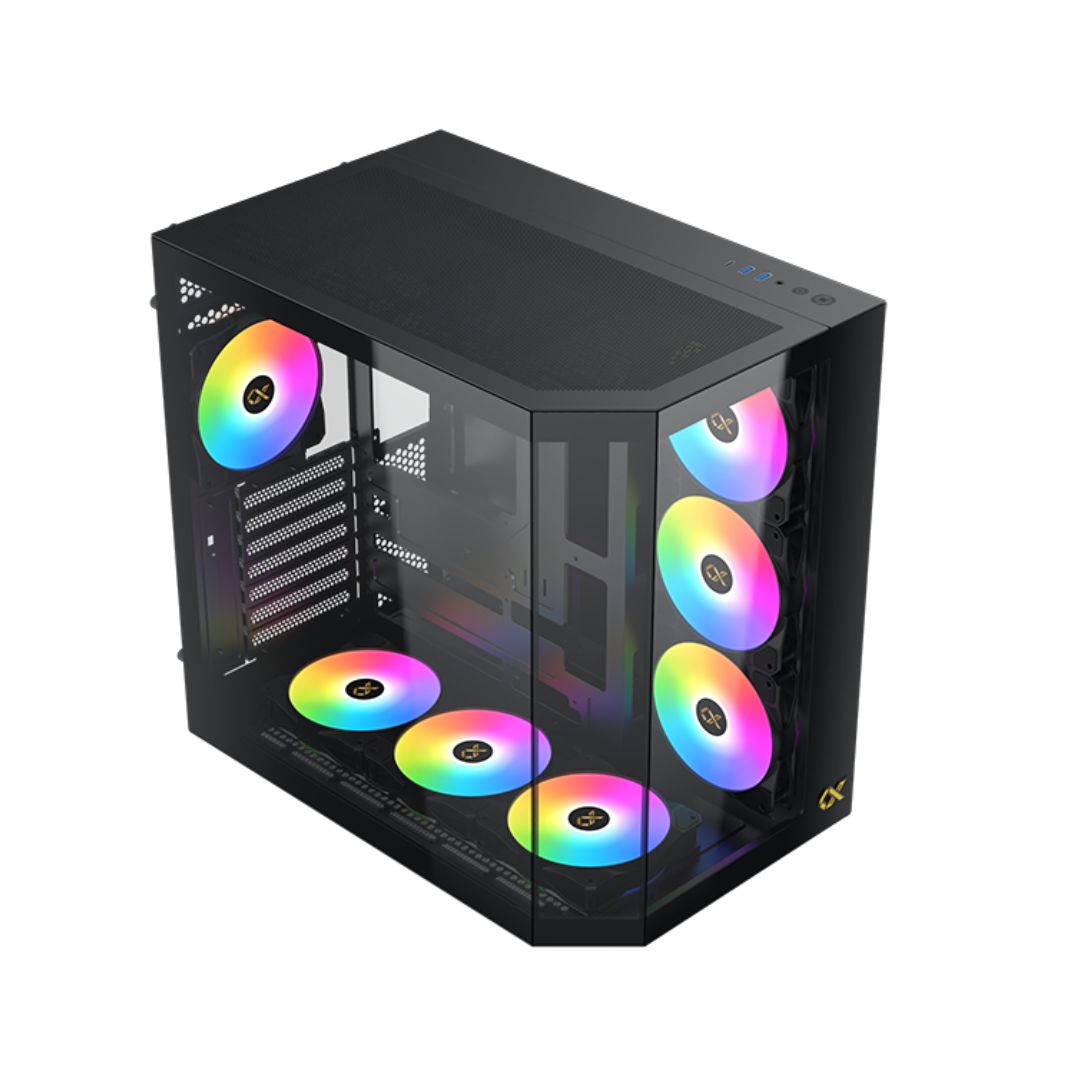

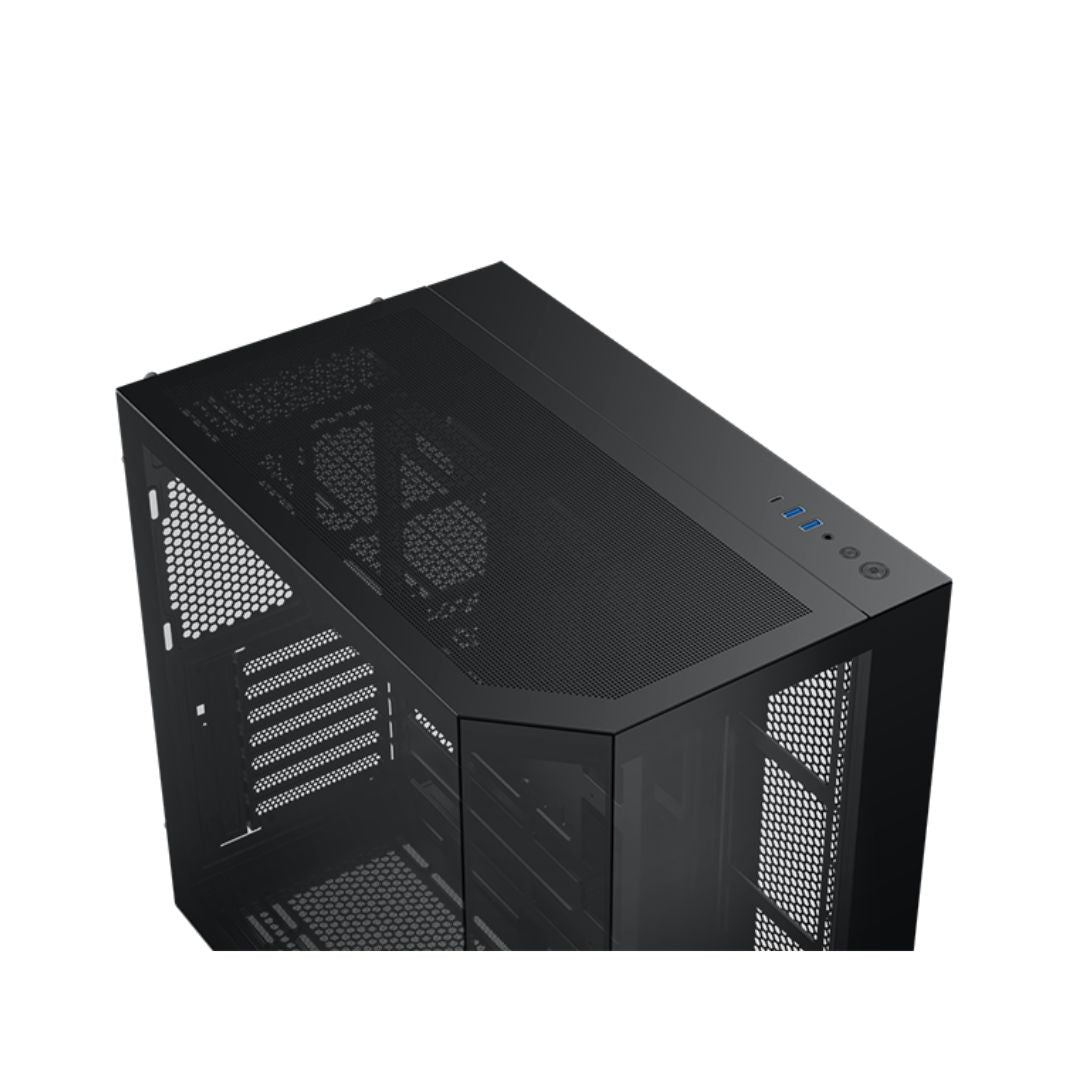

Xigmatek CUBI II Glass, Mid Tower Case - Black
- كود المنتج: 108456
Here are the specifications for the CUBI II:
-
Material: Steel
-
Dimensions: 431x277x431mm (LxWxH)
-
Drive Bays:
-
HDD Cage: 3.5″ x2
-
2.5″ x3
-
-
Expansion Slots: 7 Standard Slots, Support VGA Card Vertical Installation
-
Motherboard Support: E-ATX, ATX (Support Back Plug), Micro ATX (Support Back Plug), Mini ITX
-
Power Supply: Standard PS2 ATX PSU
-
Fan Support:
-
Top: 120mm x3 or 140mm x2
-
MB Panel: 120mm x3
-
Bottom: 120mm x3 or 140mm x2
-
Rear: 120mm x1
-
-
Radiator Support:
-
Top: 280/360
-
MB Panel: 360
-
Bottom: 360 (M-ATX MB Only)
-
-
I/O Panel:
-
USB 3.0 x2
-
USB-C x1
-
HD Audio
-
-
CPU Cooler Clearance: 165mm
-
VGA Length Limitation: 370mm
-
PSU Length Limitation: 200mm
Here are the specifications for the CUBI II:
-
Material: Steel
-
Dimensions: 431x277x431mm (LxWxH)
-
Drive Bays:
-
HDD Cage: 3.5″ x2
-
2.5″ x3
-
-
Expansion Slots: 7 Standard Slots, Support VGA Card Vertical Installation
-
Motherboard Support: E-ATX, ATX (Support Back Plug), Micro ATX (Support Back Plug), Mini ITX
-
Power Supply: Standard PS2 ATX PSU
-
Fan Support:
-
Top: 120mm x3 or 140mm x2
-
MB Panel: 120mm x3
-
Bottom: 120mm x3 or 140mm x2
-
Rear: 120mm x1
-
-
Radiator Support:
-
Top: 280/360
-
MB Panel: 360
-
Bottom: 360 (M-ATX MB Only)
-
-
I/O Panel:
-
USB 3.0 x2
-
USB-C x1
-
HD Audio
-
-
CPU Cooler Clearance: 165mm
-
VGA Length Limitation: 370mm
-
PSU Length Limitation: 200mm
