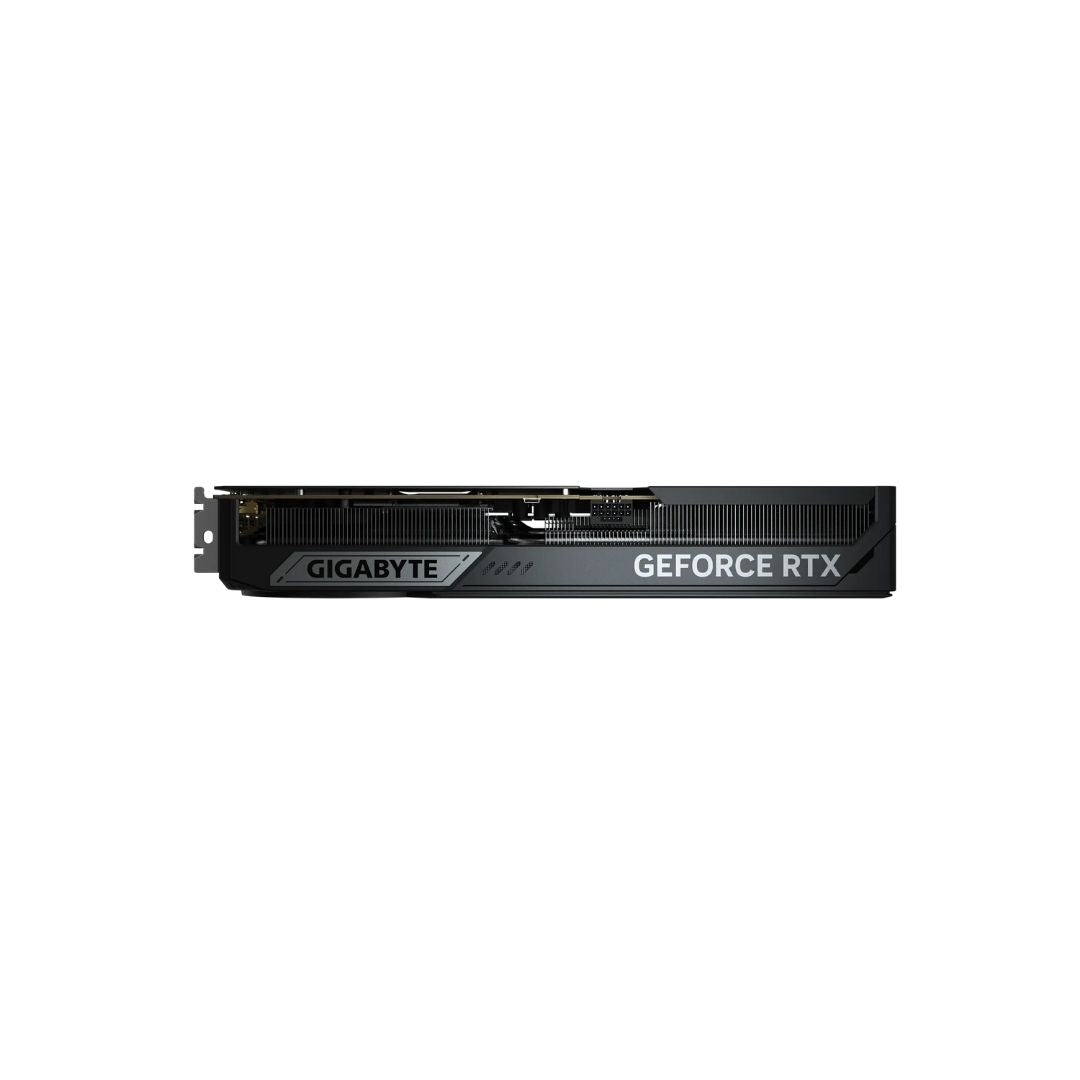

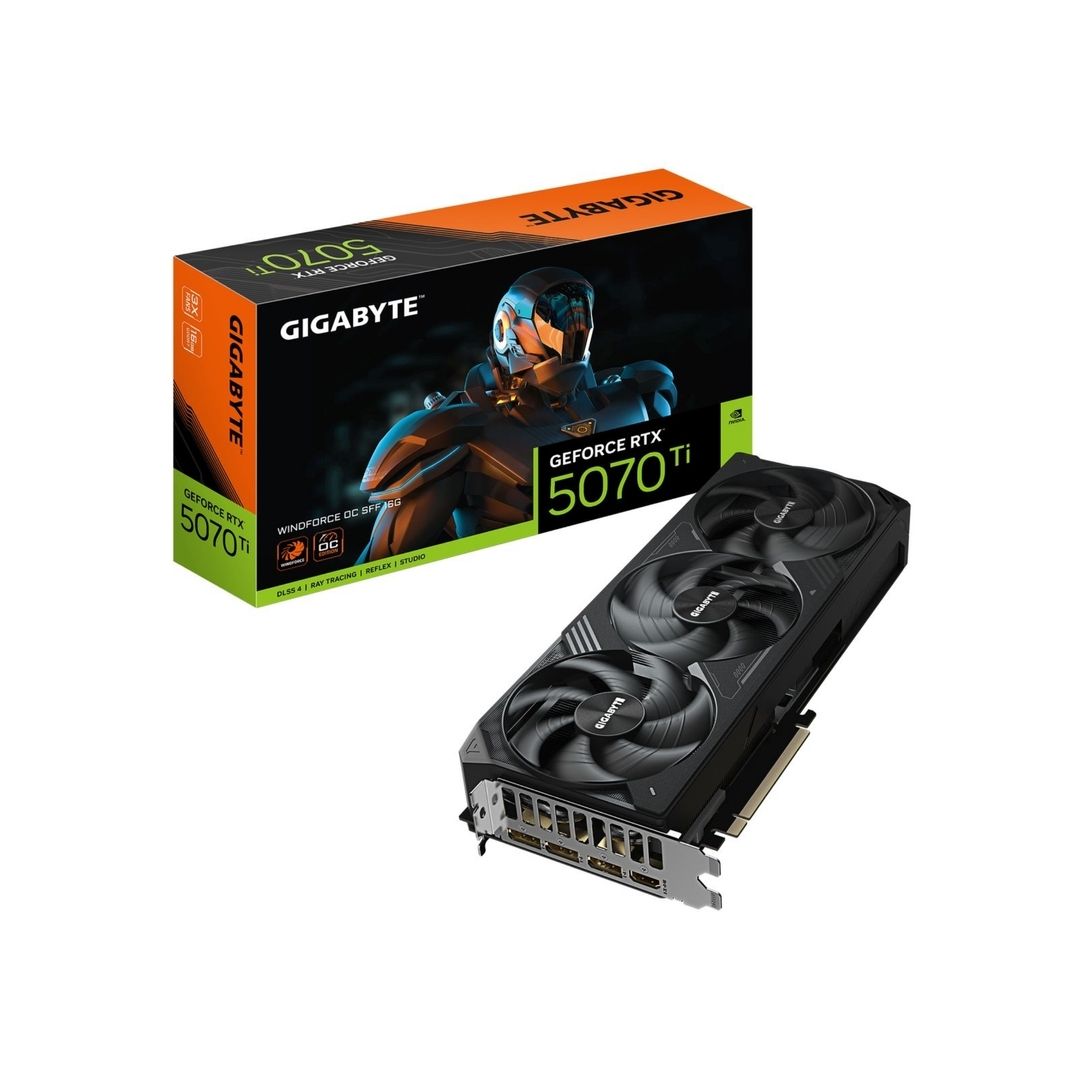

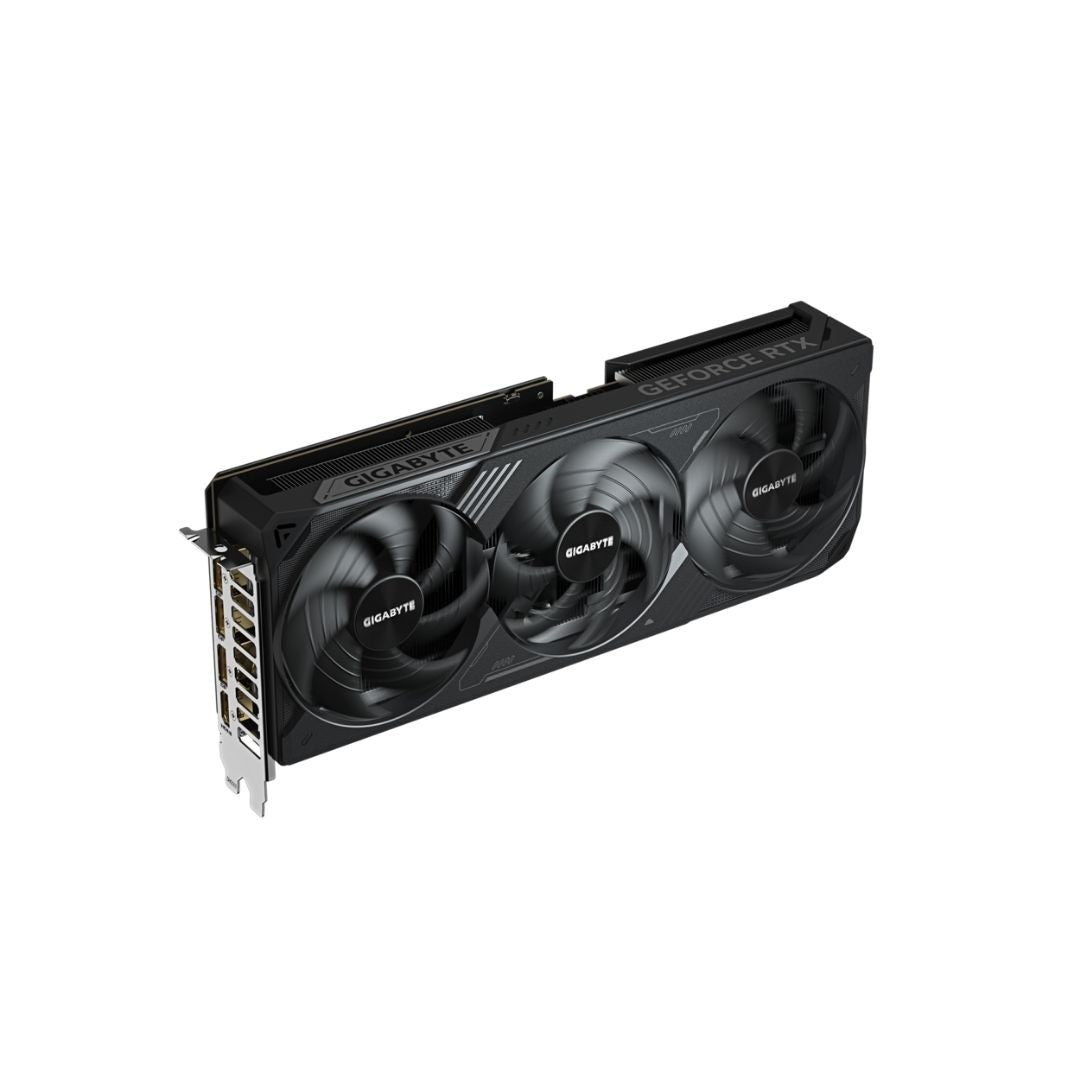

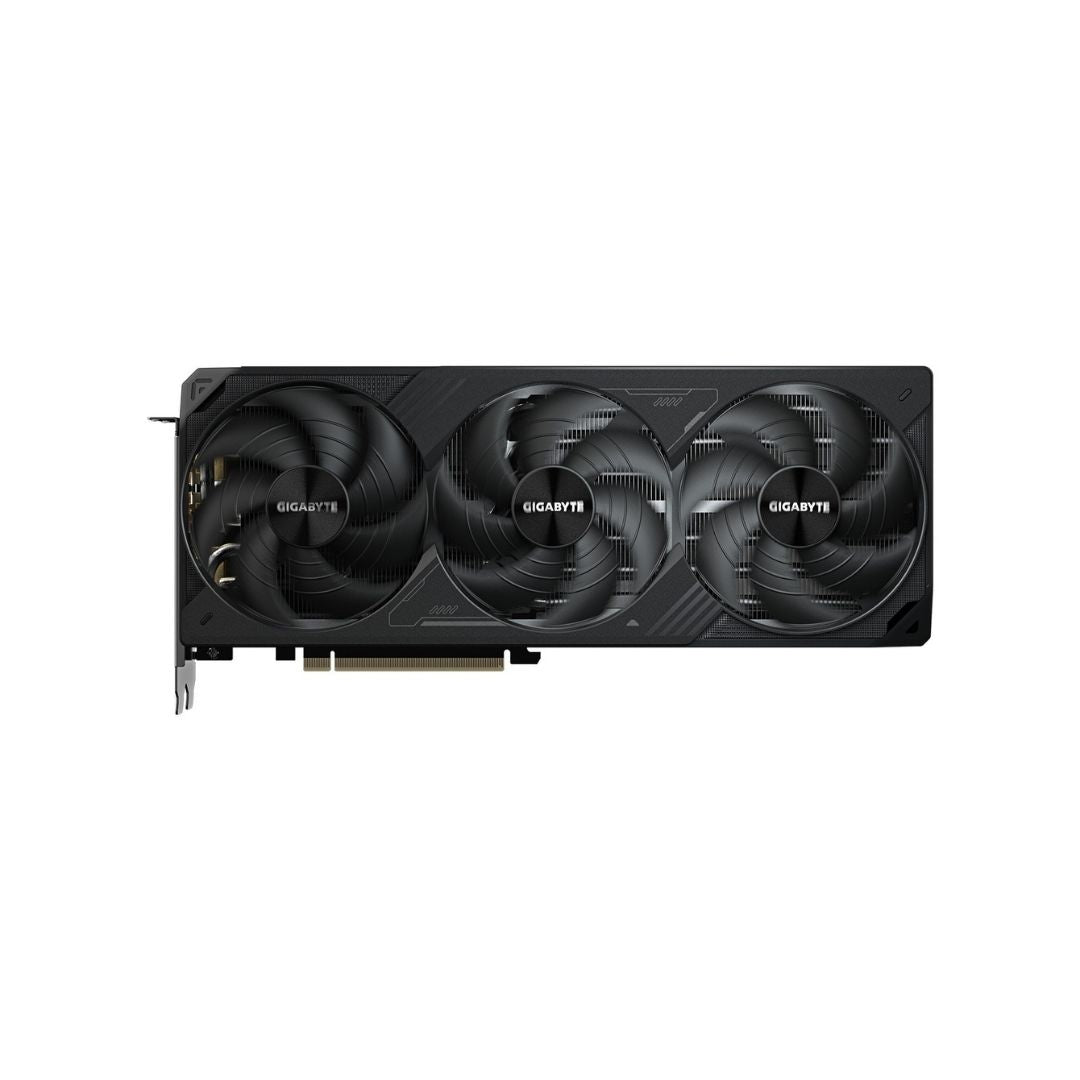

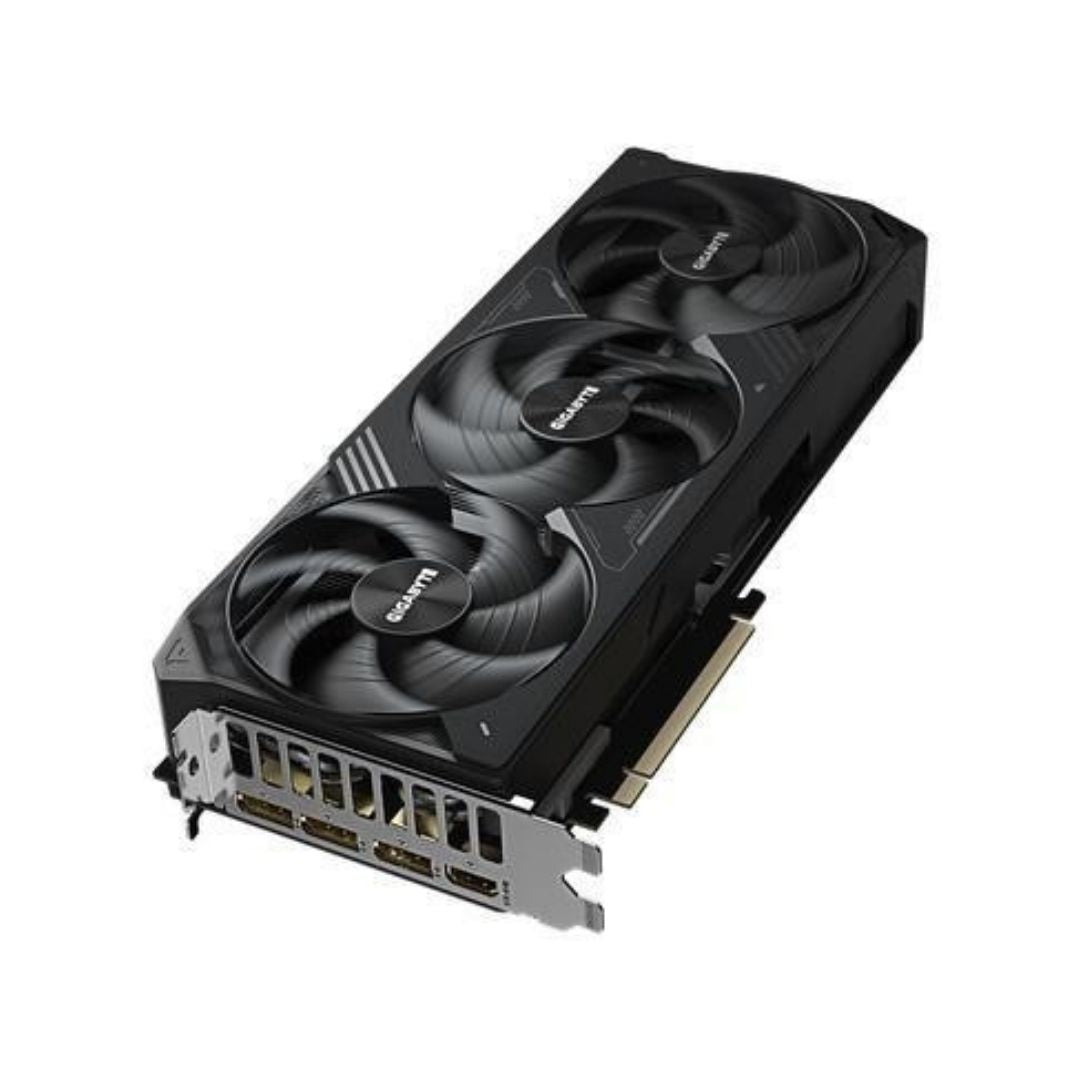

Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16GB
- Product SKU: 109801
• Model: Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF – 16GB
• GPU: NVIDIA Blackwell GB203-300-A1
• CUDA Cores: 8,960
• RT Cores: 4th Gen (70 units)
• Tensor Cores: 5th Gen (280 units)
• Process Node: TSMC 4N (5nm)
• Transistors: 45.6 billion
• Die Size: 378 mm²
• Memory
• Capacity: 16GB GDDR7
• Bus Width: 256-bit
• Effective Clock: 28 Gbps
• Bandwidth: 896 GB/s
• Clock Speeds
• Base Clock: 2,295 MHz
• Boost Clock: 2,497 MHz (OC)
• Reference Boost: 2,452 MHz
• Display Outputs
• 2 × DisplayPort 2.1
• 2 × HDMI 2.1
• Bus Interface
**• PCIe 5.0 x16
• Cooling & Design
• WINDFORCE 3X cooling system
• Hawk fan blades
• Server-grade thermal gel
• Dual BIOS (Performance / Silent)
• SFF-ready reinforced structure
• VGA holder included
• Dimensions: Approx. 304 mm length
• Power Requirements
• TDP: 300W
• Power Connector: 1 × 16-pin 12VHPWR
• Recommended PSU: 750W
• Features
• DLSS 4 with Multi Frame Generation
• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
• NVIDIA Studio, Reflex, Broadcast, G-SYNC
• NVENC (9th Gen), NVDEC (6th Gen), VP11 decode
• NVIDIA App support for driver updates
• Compatibility
• OS: Windows 10/11 64-bit, Linux 64-bit
• Motherboard: PCIe x16 slot required
• Model: Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF – 16GB
• GPU: NVIDIA Blackwell GB203-300-A1
• CUDA Cores: 8,960
• RT Cores: 4th Gen (70 units)
• Tensor Cores: 5th Gen (280 units)
• Process Node: TSMC 4N (5nm)
• Transistors: 45.6 billion
• Die Size: 378 mm²
• Memory
• Capacity: 16GB GDDR7
• Bus Width: 256-bit
• Effective Clock: 28 Gbps
• Bandwidth: 896 GB/s
• Clock Speeds
• Base Clock: 2,295 MHz
• Boost Clock: 2,497 MHz (OC)
• Reference Boost: 2,452 MHz
• Display Outputs
• 2 × DisplayPort 2.1
• 2 × HDMI 2.1
• Bus Interface
**• PCIe 5.0 x16
• Cooling & Design
• WINDFORCE 3X cooling system
• Hawk fan blades
• Server-grade thermal gel
• Dual BIOS (Performance / Silent)
• SFF-ready reinforced structure
• VGA holder included
• Dimensions: Approx. 304 mm length
• Power Requirements
• TDP: 300W
• Power Connector: 1 × 16-pin 12VHPWR
• Recommended PSU: 750W
• Features
• DLSS 4 with Multi Frame Generation
• DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
• NVIDIA Studio, Reflex, Broadcast, G-SYNC
• NVENC (9th Gen), NVDEC (6th Gen), VP11 decode
• NVIDIA App support for driver updates
• Compatibility
• OS: Windows 10/11 64-bit, Linux 64-bit
• Motherboard: PCIe x16 slot required
