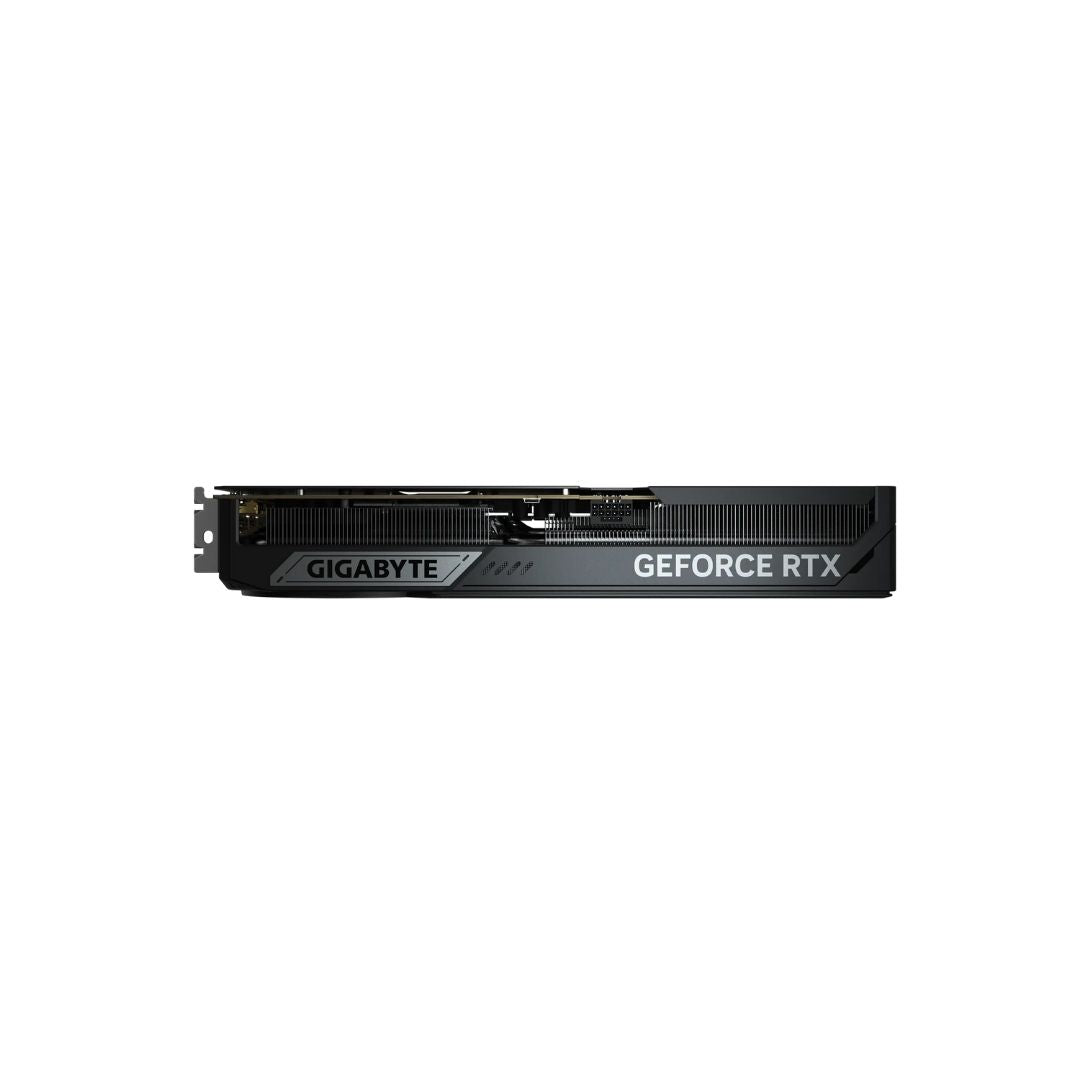

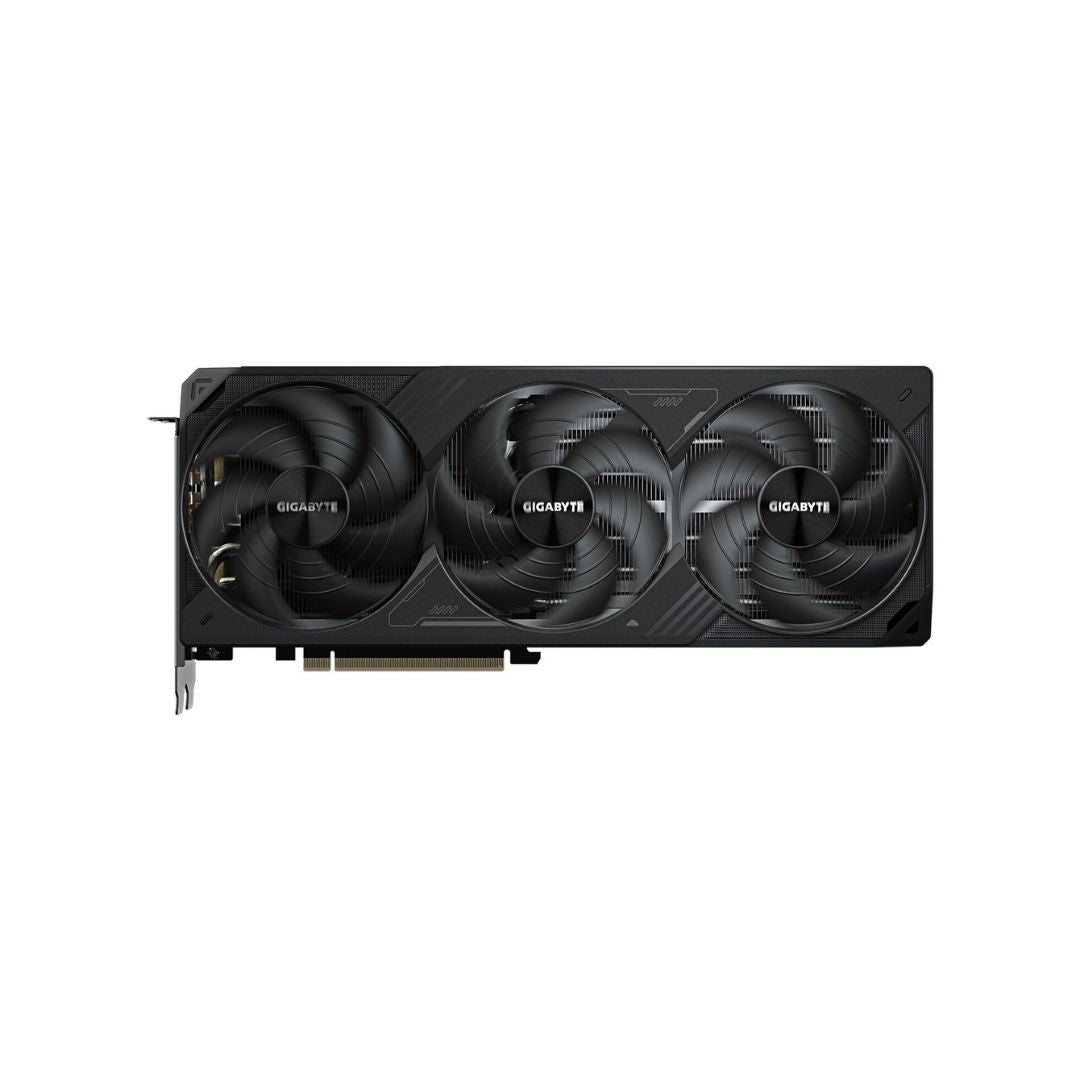

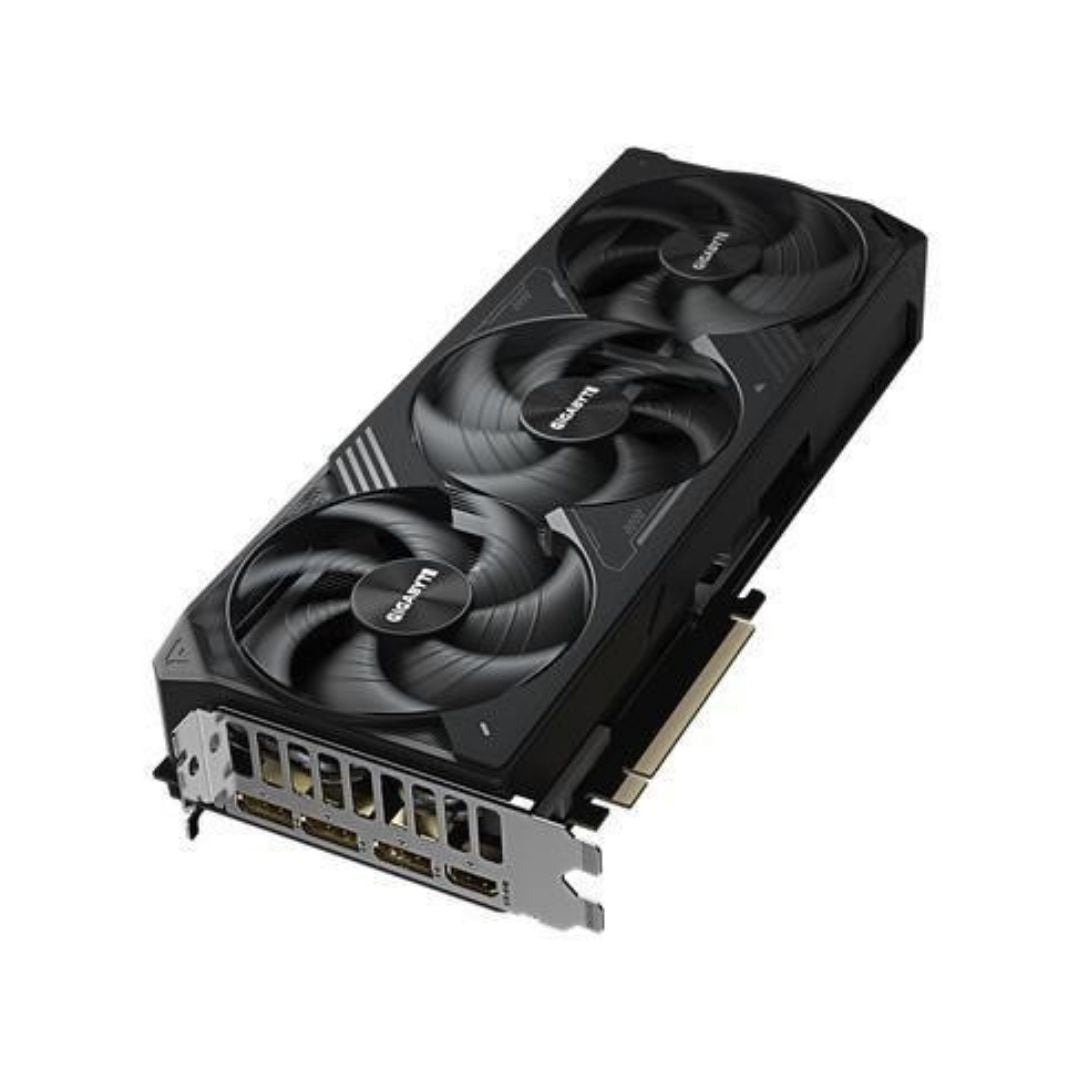

Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16GB

• Model: Gigabyte GeForce RTX™ 5070 Ti WINDFORCE OC SFF – 16GB

• GPU: NVIDIA Blackwell GB203-300-A1
• CUDA Cores: 8,960
• RT Cores: 4th Gen (70 units)
• Tensor Cores: 5th Gen (280 units)
• Process Node: TSMC 4N (5nm)
• Transistors: 45.6 billion
• Die Size: 378 mm²

• Memory
 • Capacity: 16GB GDDR7
 • Bus Width: 256-bit
 • Effective Clock: 28 Gbps
 • Bandwidth: 896 GB/s

• Clock Speeds
 • Base Clock: 2,295 MHz
 • Boost Clock: 2,497 MHz (OC)
 • Reference Boost: 2,452 MHz

• Display Outputs
 • 2 × DisplayPort 2.1
 • 2 × HDMI 2.1

• Bus Interface
 **• PCIe 5.0 x16

• Cooling & Design
 • WINDFORCE 3X cooling system
 • Hawk fan blades
 • Server-grade thermal gel
 • Dual BIOS (Performance / Silent)
 • SFF-ready reinforced structure
 • VGA holder included
 • Dimensions: Approx. 304 mm length

• Power Requirements
 • TDP: 300W
 • Power Connector: 1 × 16-pin 12VHPWR
 • Recommended PSU: 750W

• Features
 • DLSS 4 with Multi Frame Generation
 • DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
 • NVIDIA Studio, Reflex, Broadcast, G-SYNC
 • NVENC (9th Gen), NVDEC (6th Gen), VP11 decode
 • NVIDIA App support for driver updates

• Compatibility
 • OS: Windows 10/11 64-bit, Linux 64-bit
 • Motherboard: PCIe x16 slot required
