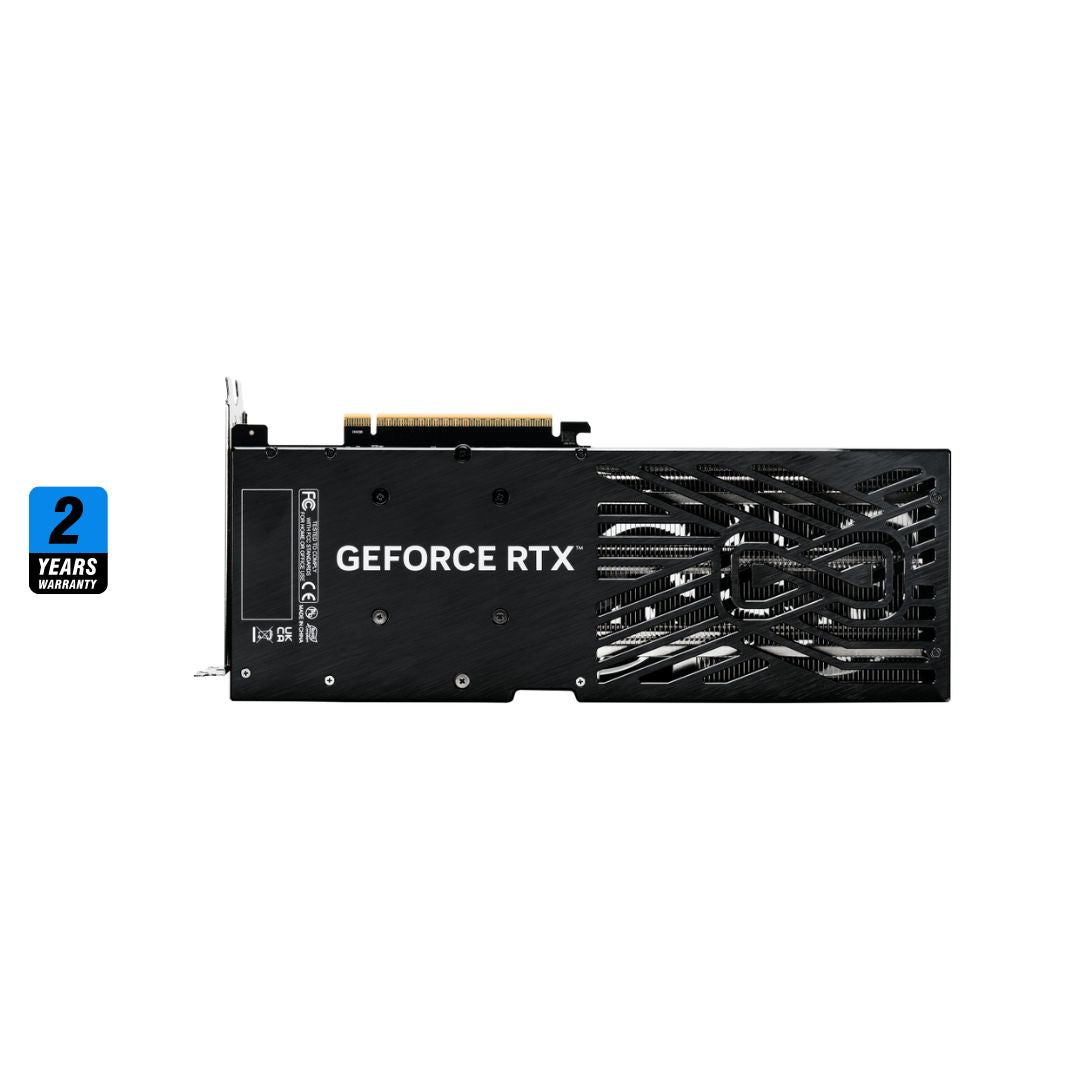

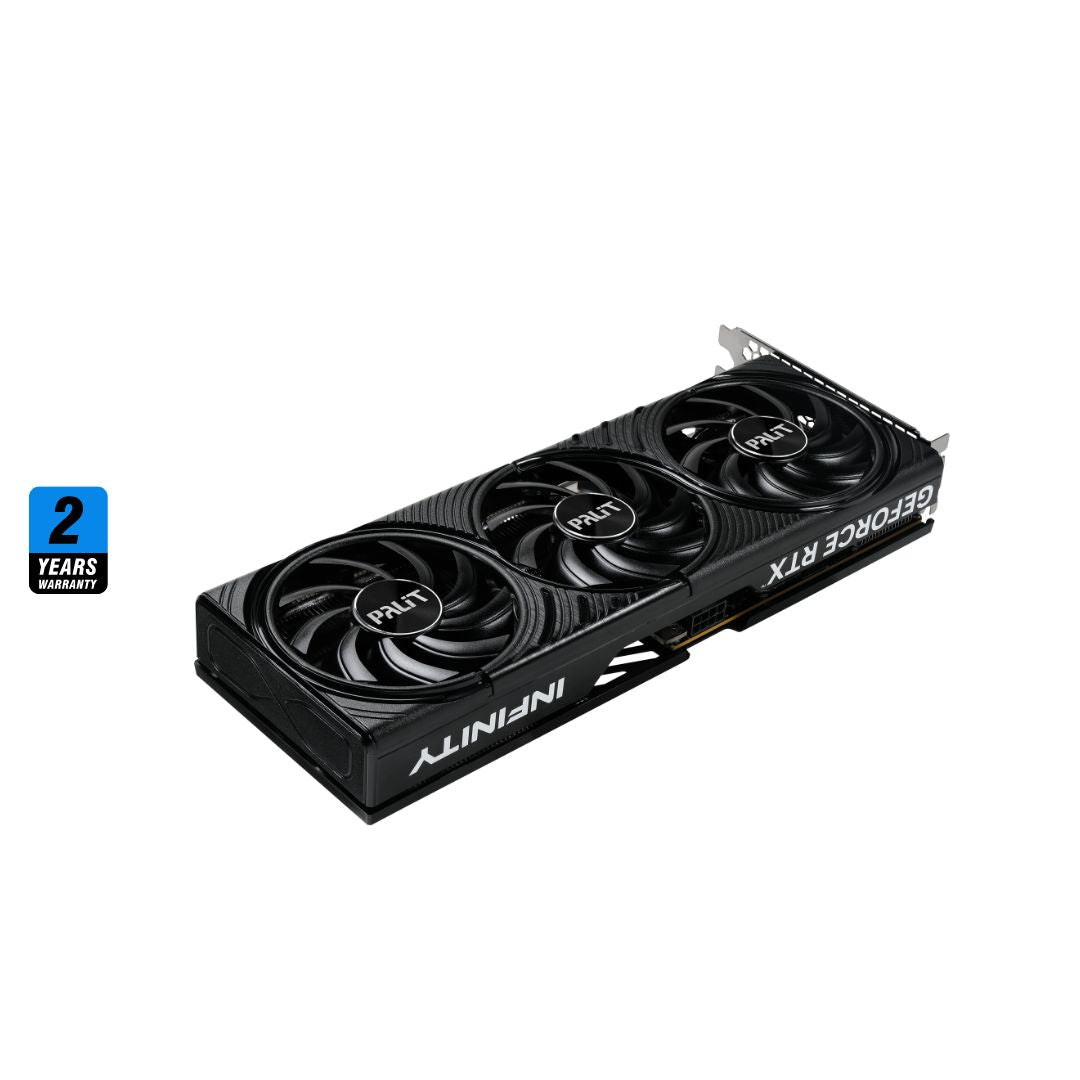

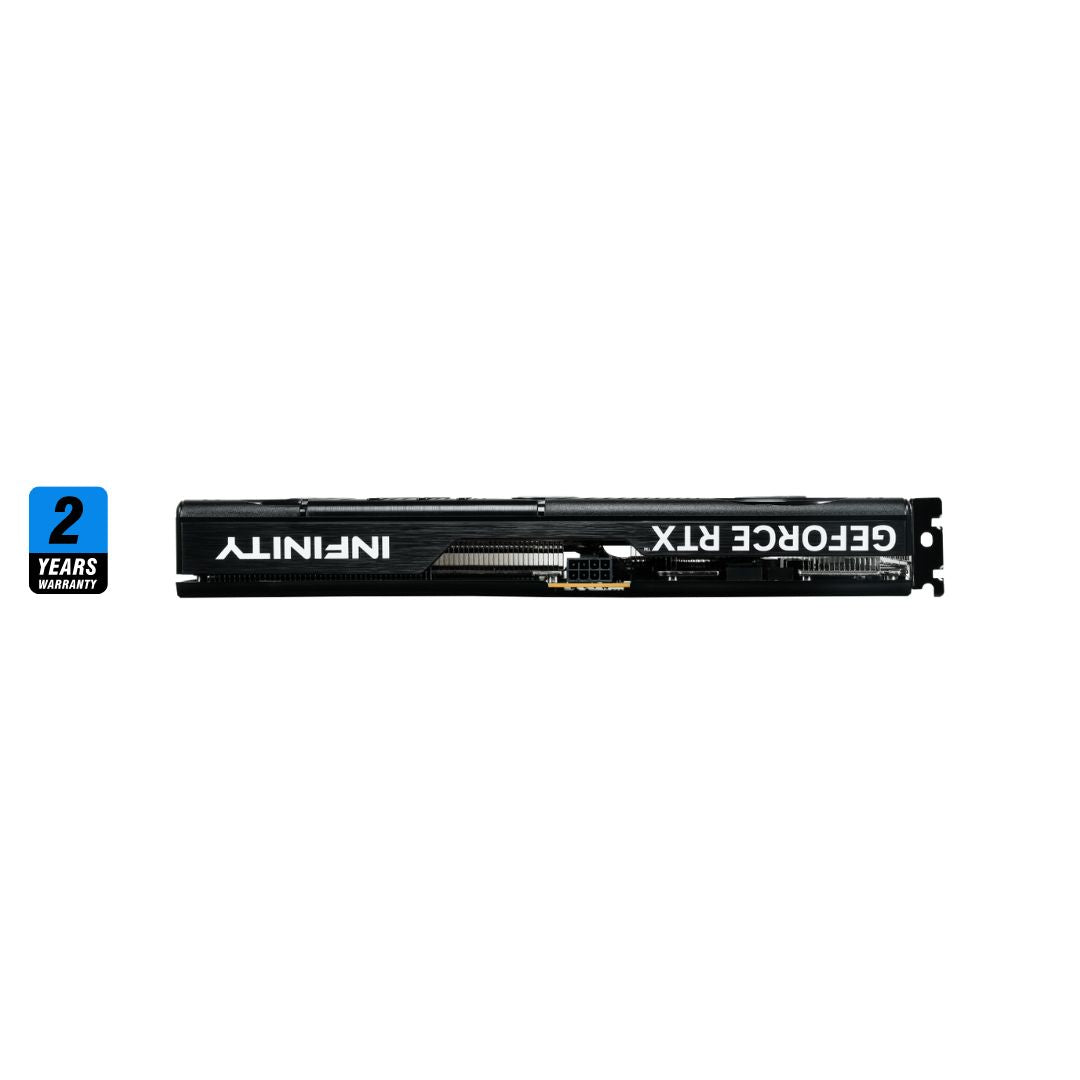

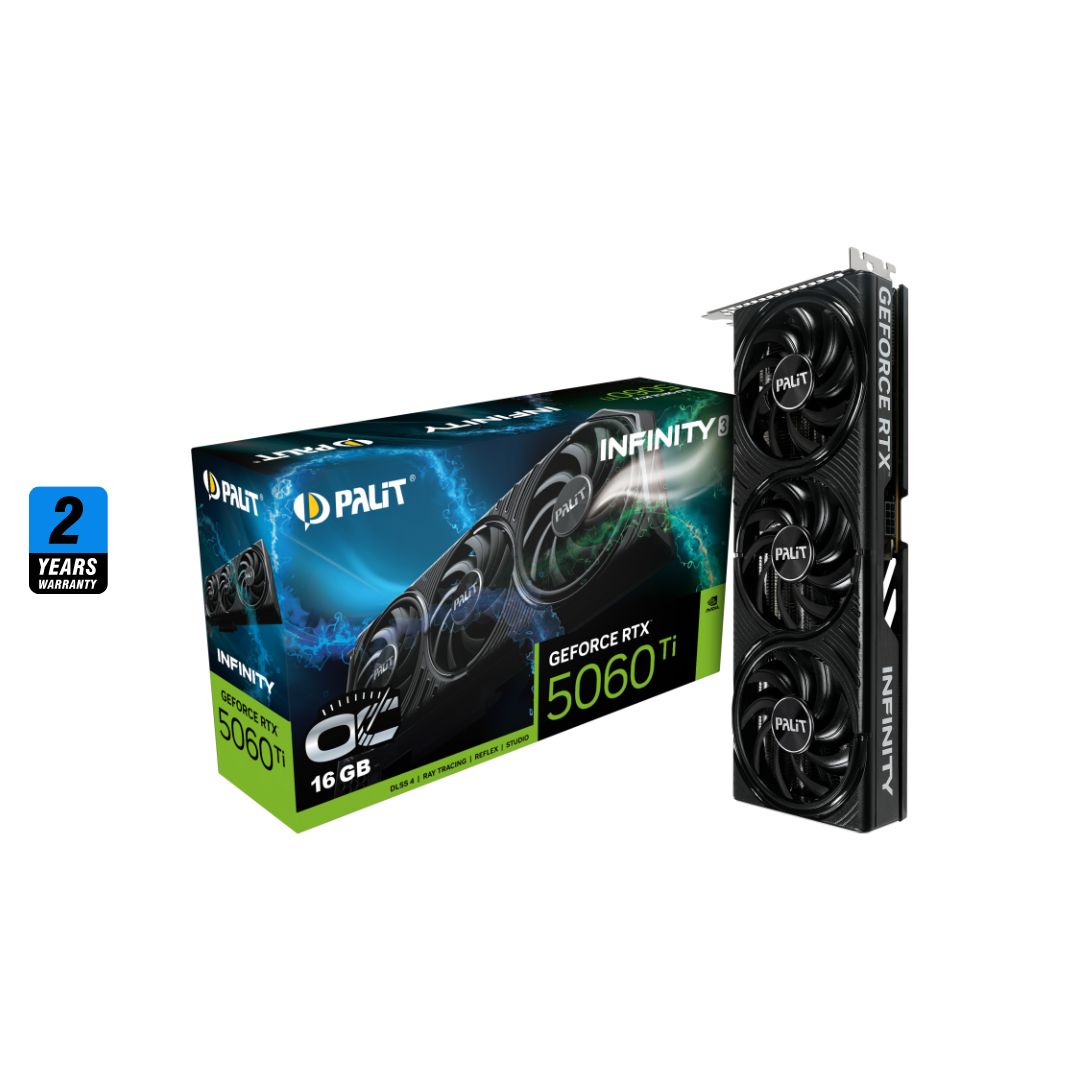

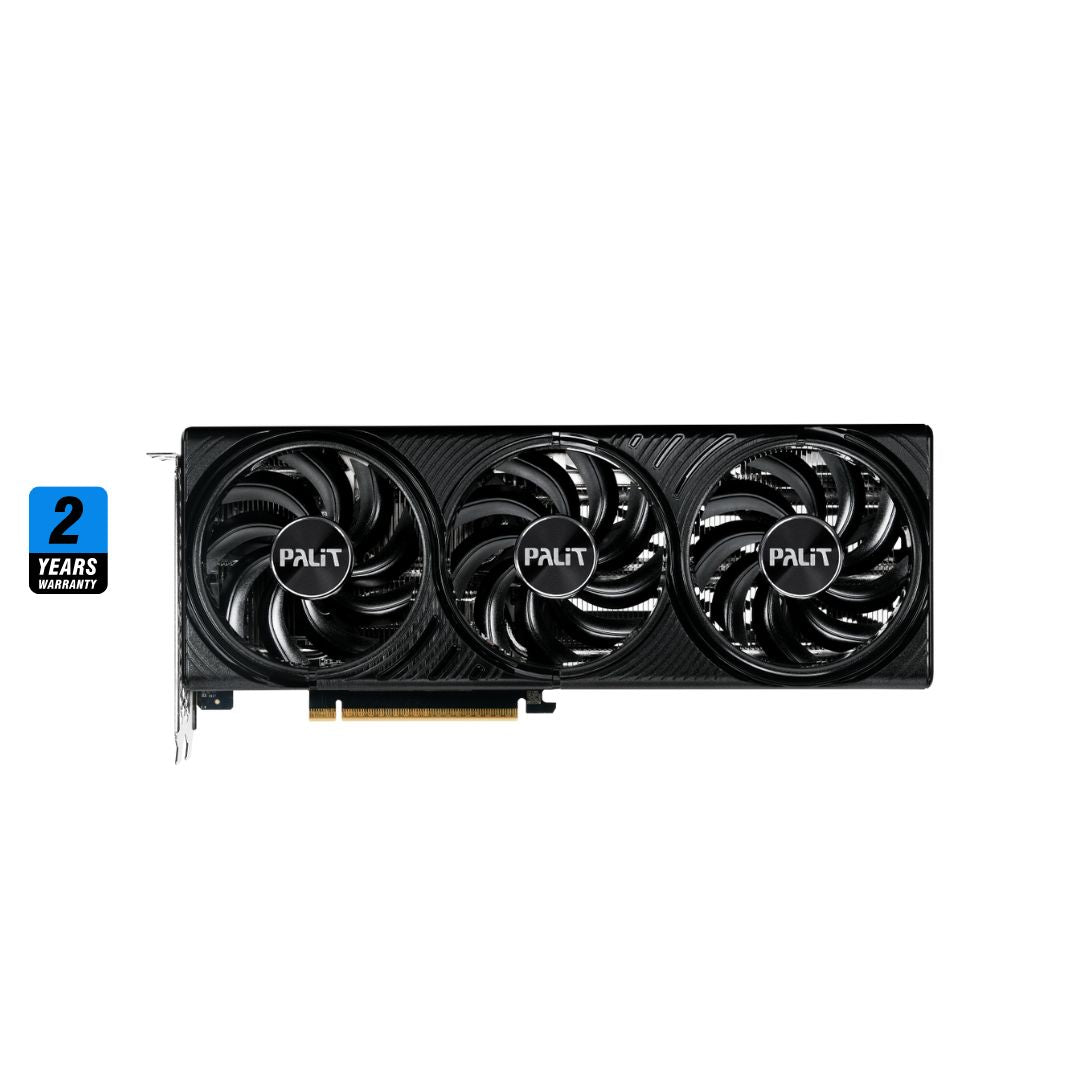

Palit GeForce RTX 5060 Ti Infinity 3X OC - 16GB
- Product SKU: 109524
Graphics Card Technical Specifications
Memory Configuration
-
Capacity: 16GB GDDR7
-
Interface Width: 128-bit
-
Memory Speed: 28 Gbps
-
Effective Bandwidth: 448 GB/s
-
Memory Technology: Next-generation GDDR7
Processing Power
-
CUDA Cores: 4,608
-
Clock Frequencies:
-
Base: 2,407 MHz
-
Boost: 2,662 MHz (Dynamic Boost)
-
-
Compute Performance: ~24.5 TFLOPS (estimated)
Power Delivery
-
Board Power: 180W TDP
-
Power Input: 1× 8-pin PCIe
-
PSU Recommendation: 600W minimum
-
Efficiency: Optimized power curve
Display Capabilities
-
Output Configuration:
-
3× DisplayPort 2.1b (UHBR20)
-
1× HDMI 2.1b
-
-
Resolution Support:
-
7680×4320 @ 120Hz (8K with DSC)
-
3840×2160 @ 480Hz (4K)
-
2560×1440 @ 360Hz+
-
Physical Dimensions
-
Form Factor: Dual-slot
-
Dimensions: 291.9 × 116.6 × 41.3 mm (L×H×W)
-
Cooling Solution: Custom 2-slot thermal design
Advanced Features
-
API Support:
-
DirectX 12 Ultimate
-
OpenGL 4.6
-
Vulkan 1.3
-
-
PCIe Interface: Gen 5.0 ×16
-
**Display Technologies:
-
DSC 1.2a
-
VRR (FreeSync/G-SYNC Compatible)
-
HDR10
-
