Power Supply Specification

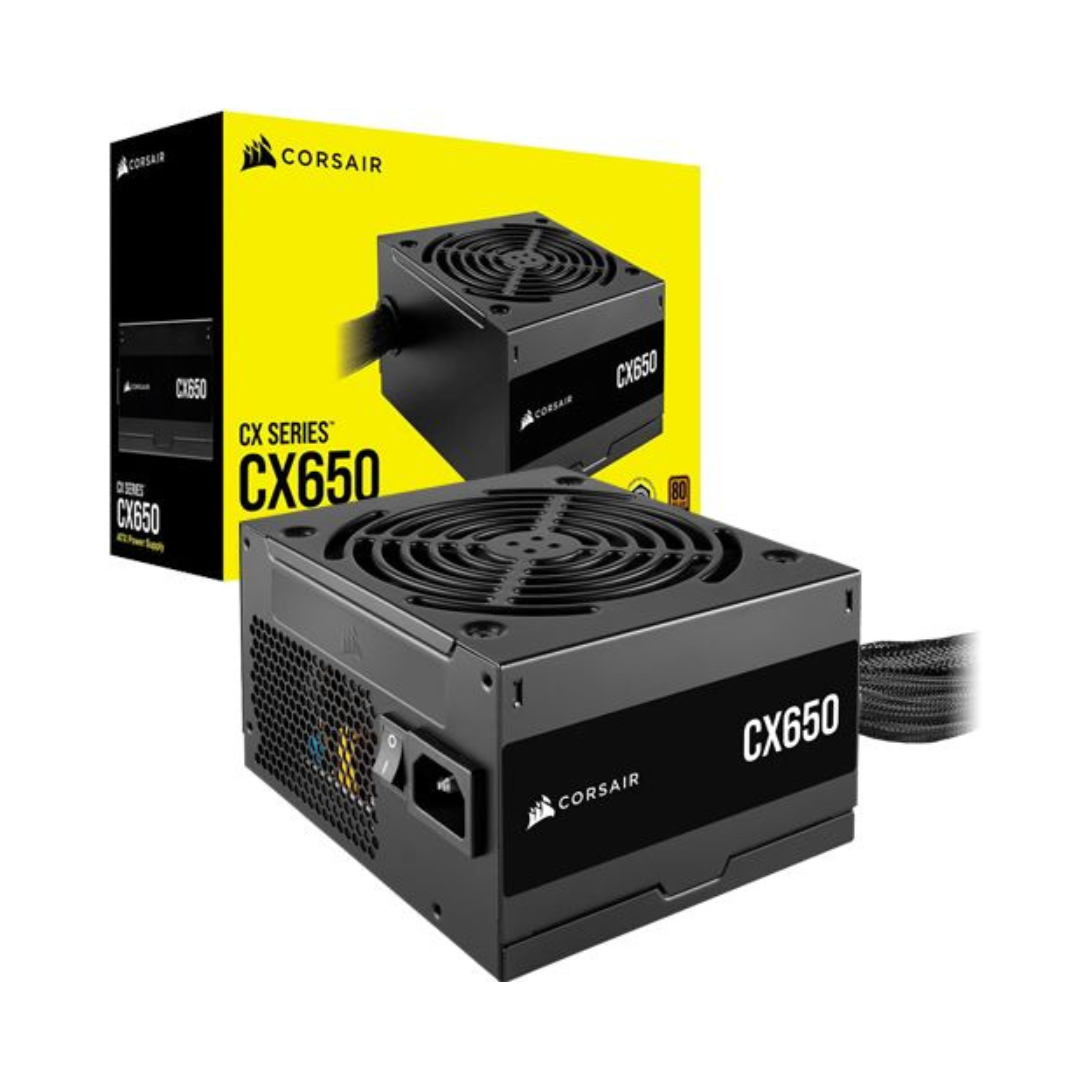

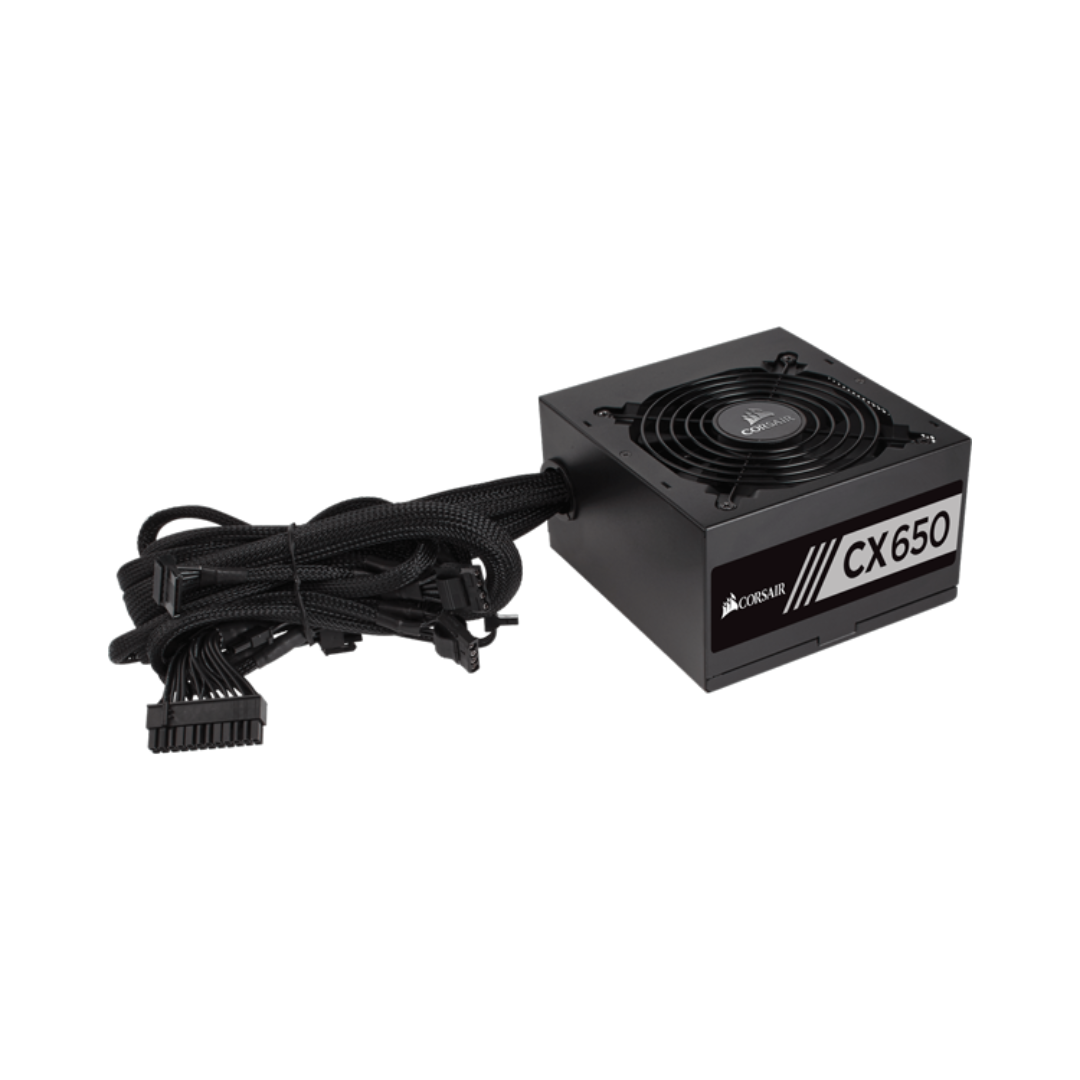

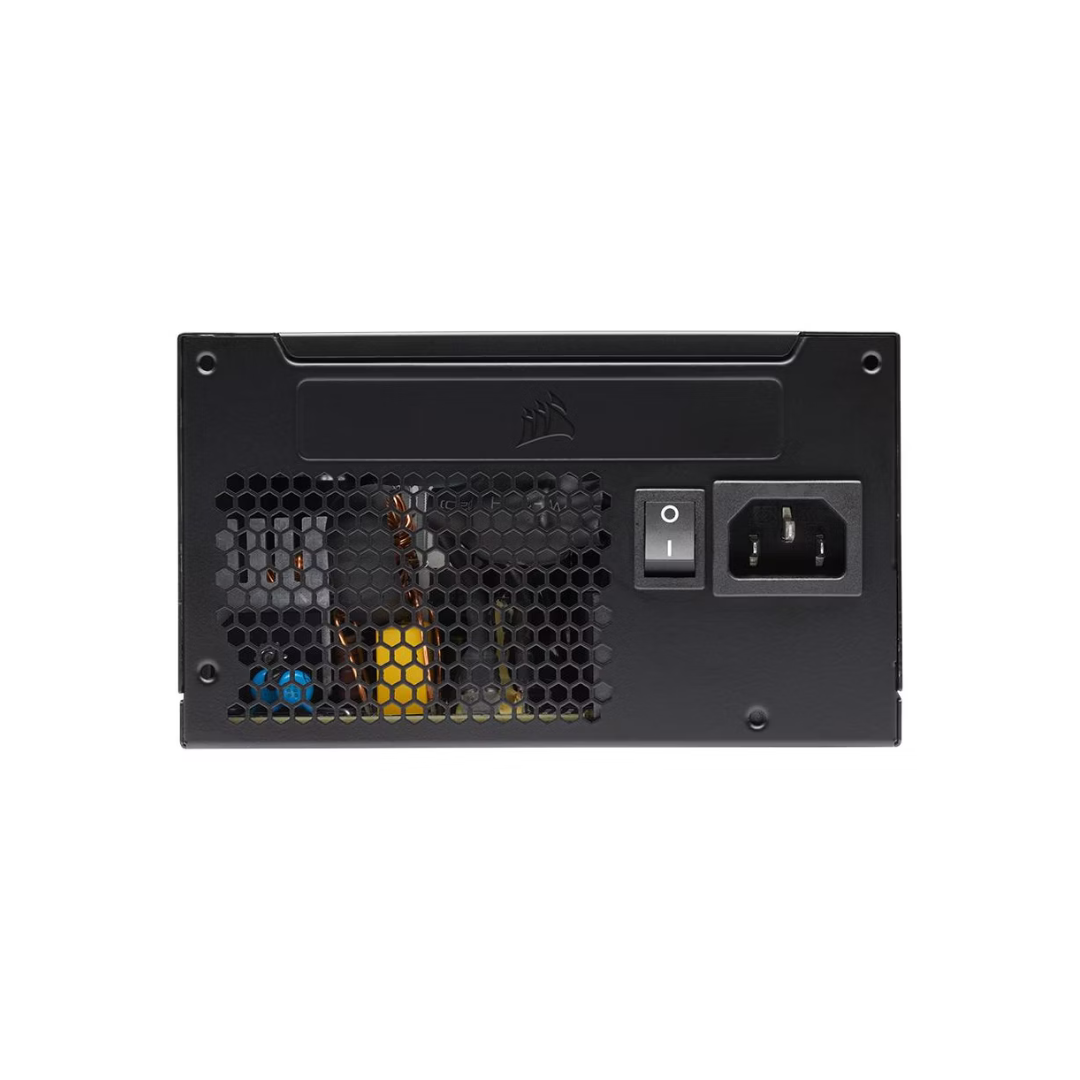

• Model: Corsair CX650 – 650W Bronze Power Supply
• Series: Corsair CX Series
• Wattage: 650 Watts continuous output
• Efficiency: 80 PLUS Bronze certified (up to 85% efficiency)
• Form Factor: ATX
• Fan Type: 120mm thermally controlled sleeve bearing fan
• Modularity: Non-modular
• Input Voltage: 100–240V AC
• MTBF: >100,000 hours
• Protections: OVP, UVP, SCP, OPP, OTP
• Connectors:
– 1 × ATX 24-pin
– 1 × EPS/ATX12V 8-pin (4+4)
– 2 × PCIe 6+2-pin
– 5 × SATA
– 4 × Peripheral (Molex)
– 1 × Floppy
• Dimensions: 150 × 86 × 140 mm
• Compliance: ErP, RoHS, CE, FCC, TÜV, CCC
Power Supply Specification
• Model: Corsair CX650 – 650W Bronze Power Supply
• Series: Corsair CX Series
• Wattage: 650 Watts continuous output
• Efficiency: 80 PLUS Bronze certified (up to 85% efficiency)
• Form Factor: ATX
• Fan Type: 120mm thermally controlled sleeve bearing fan
• Modularity: Non-modular
• Input Voltage: 100–240V AC
• MTBF: >100,000 hours
• Protections: OVP, UVP, SCP, OPP, OTP
• Connectors:
– 1 × ATX 24-pin
– 1 × EPS/ATX12V 8-pin (4+4)
– 2 × PCIe 6+2-pin
– 5 × SATA
– 4 × Peripheral (Molex)
– 1 × Floppy
• Dimensions: 150 × 86 × 140 mm
• Compliance: ErP, RoHS, CE, FCC, TÜV, CCC
